Summary of Contents for BonsenKitchen MJ8901

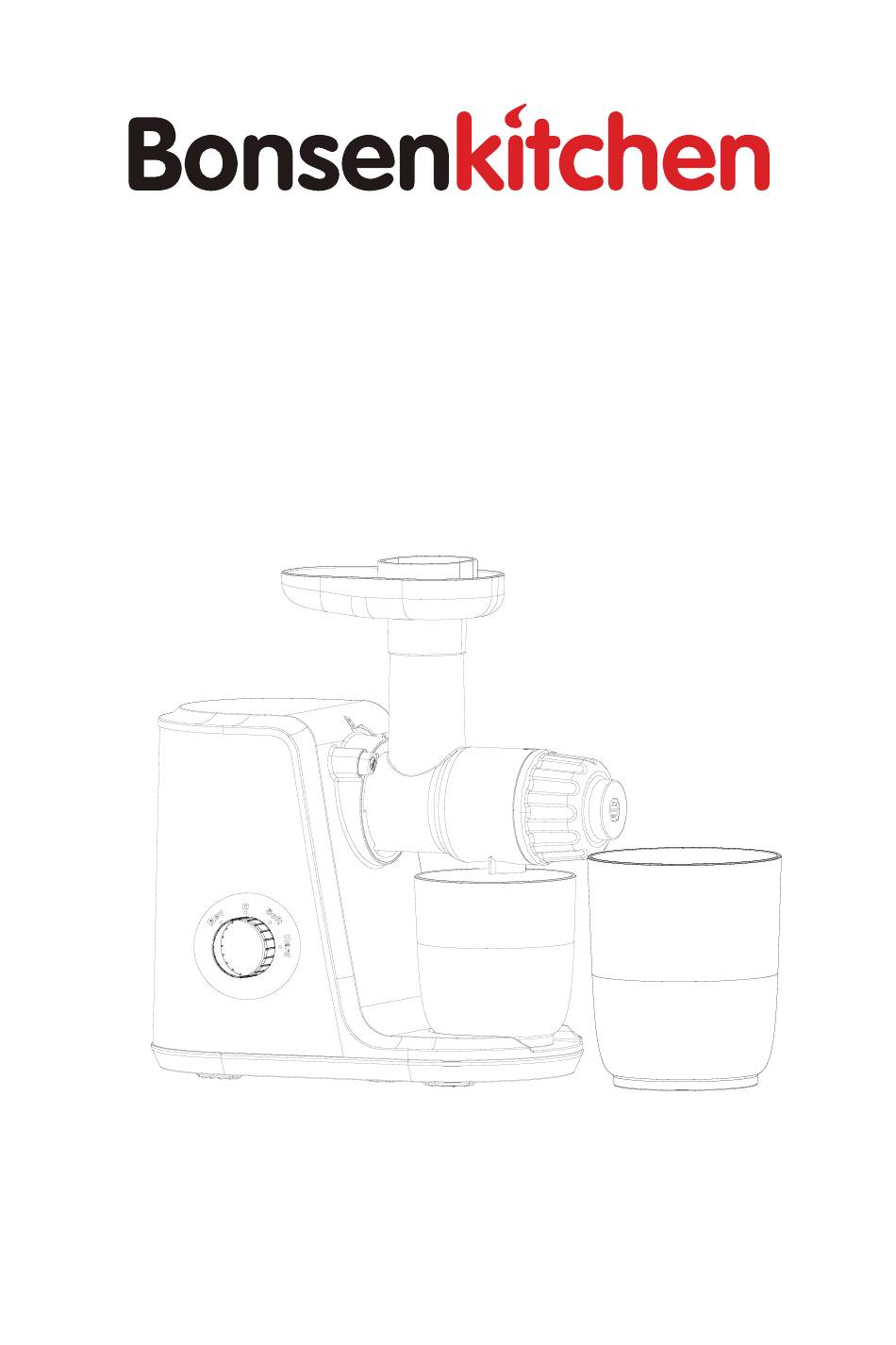

- Page 1 Masticating Juicer Operation Instructions Model: MJ8901 www.bonsenkitchen.com...
-
Page 2: Table Of Contents
Contents ..................IMPORTANT SAFEGUARDS ....................PACKAGE CONTENTS ................ KNOW YOUR MASTICATING JUICER ....................TECHNICAL DETAILS ..............BEFORE USING MASTICATING JUICER ................. USING YOUR MASTICATING JUICER ................CLEANING AND MAINTENANCE 9-10 ................WARRANTY CLAIM PROCEDURE ................ENVIRONMENT FRIENDLY DISPOL... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read all instructions. 2. The input voltage of the appliance is 120V~60Hz. Please confirm it before using the appliance. 3. To disconnect the power supply before dismantling, assembling or adjusting any part of the appliance. 4. Before use, please check if Y connection,the power cord, the plug, the juice strainer, the spiral pusher and any other part is damaged. - Page 4 11. Equipped with an intelligent protective chip, the appliance will stop automatically after 20 minutes of continuous running. In this case, wait for 20 to 30 minutes before continuous use until the motor has cooled down to prolong the service life of the appliance. 12.
- Page 5 19. The appliance is applicable to use by individuals or families only. 20. Accessories, other than those supplied with the appliance, include instructions for their safe use. 21. Use a wet cloth to clean surfaces in contact with food before unplug the plug. 22.
-
Page 6: Package Contents
PACKAGE CONTENTS 1 Masticating juicer 1 Cleansing brush 1 Operating Instructions Check the delivery contents for completeness immediately after unpacking. Remove all packaging materials and plastic film from the appliance. KNOW YOUR MASTICATING JUICER Part name Function It is used for connecting the power supply to provide Power cord power. - Page 7 It is used for locking the juicing body to prevent it from Button getting loose from the main body during use. It is a main part for juicing. Food ingredients are first fed via the feed port at the top of the juicing body and Juicing body then discharged in forms of juice and pulp via the juice outlet and the pulp outlet respectively.
-
Page 8: Technical Details
TECHNICAL DETAILS 120V~ Rated voltage Rated power 150W Rated frequency 60Hz ≤10 min Continuous operating time ≥10 min Time interval BEFORE USING MASTICATING JUICER Before using the appliance for the first time, clean its parts in contact with food ingredients thoroughly. Button operation instructions: 1. -
Page 9: Using Your Masticating Juicer
USING YOUR MASTICATING JUICER Please install and use the appliance following the steps below. Connect the juicing body and the main body: 1. Have the triangular aligning sign “▼” on the juicing body align with the aligning “unlocking triangular sign” on the main body and then put the juicing body into the main body (the three clips on the juicing body will realize alignment). - Page 10 Put the juice cup in the corresponding groove on the main body and have its opening align with the bottom of the juice outlet of the juicing body. Put the pulp cup below the pulp outlet of the juicing body and have it close to the juice cup. Install the tray on the upper end of the feed port of the juicing body.
-
Page 11: Cleaning And Maintenance
After the “SOFT or HARD” button of the switch is pressed, the appliance will begin to run for 10 minutes or a shorter time. Put food ingredients into the feed port on the juicing body cap and then push the food ingredients with help of the pushing rod. - Page 12 Take down the pushing rod and the tray. Press the button on the side of the juicing body and turn the juicing body clockwise at the same time to take out the juicing body. The juicing body cannot be dismantled if the button is not pressed.
-
Page 13: Warranty Claim Procedure
If you request any further assistance, please contact us: Customer service: 1-888-965-8032 support@bonsenkitchen.com ENVIRONMENT FRIENDLY DISPOL This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. - Page 14 Register your product at www.bonsenkitchen.com to get more perks! Follow us @bonsenkitchen Bonsen Electronics Inc. : 5805C Peachtree Corners East Norcross, GA, 30092 : 1-888-965-8032 : support@bonsenkitchen.com...
