Summary of Contents for KECAG KC-809

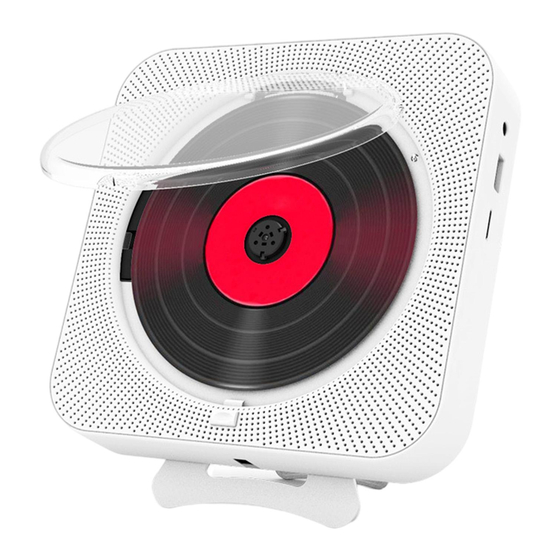

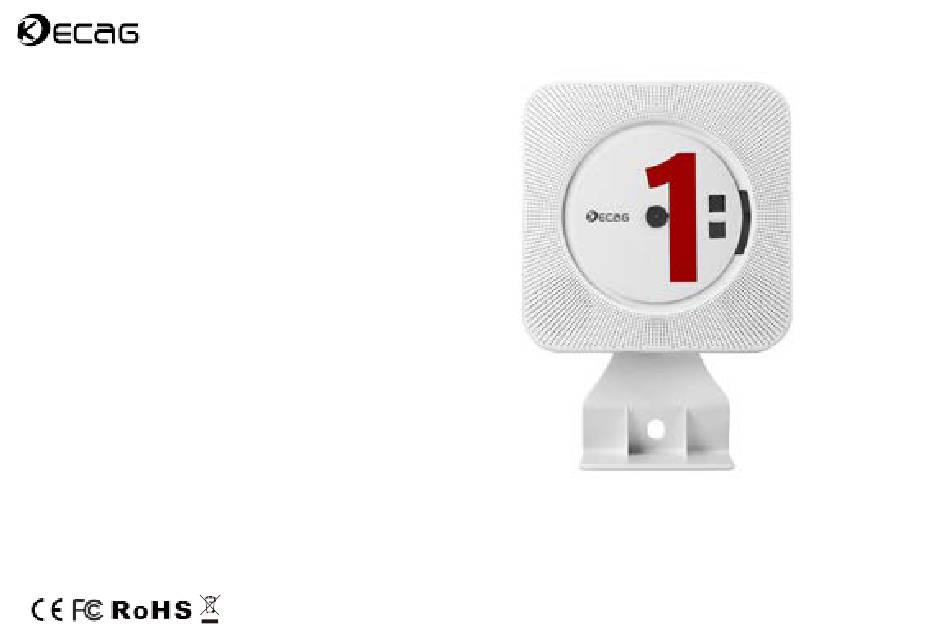

- Page 1 READ ME BEFORE USAGE Wall Mountable CD Player MODEL:KC-809...
-
Page 2: Quick Usage Instruction
4-Steps Quick Instruction 4、Remove the insulating 2. Insert the USB power cable 3、Pull the pulling cable 1. Remove the paper CD film on the battery drawer into the 5V2A adaptor and switch to power on,it and put a correct CD before remote it. -
Page 3: Table Of Contents
Content Quick Usage Instruction ………………………………………………… ……… … 2 Contents …………………………… ……………………………………… ……… 3 Packing Details ……………………………………………………………………… 4 Structrue and Buttons …………… ………………………………………… …… 5 Remote ……………………………………………………………………………… 6 CD Mode Operation ……………………………………………………………… 7 BT Mode Operation …………… …… ………………………… …………… …… 8 ………………………... -
Page 4: Packing Details
Packing List CD player & Paper Disc Cover Remote 5V2A USB adaptor Desk Stand Wall Mount Plate 3.5mm male-to-male Cable Wall Mount Kit Manual... -
Page 5: Structrue And Buttons
Structure and buttons SD reading port • 3.5mm audio jack for headphone • AUX-in port connect with mobile/PC via 3.5 audio cable • Output to external speaker via 3.5mm audio cable 2.5 meter power cable (Pulling switch.Pull to power on/off) USB flash disk reading port LED display Volume + / -... -
Page 6: Remote
Remote Short press for NEXT / PREV infrared transmitter Long press for forward / backward （not a light） Standby NOT a power key to power on/off Play / Pause Volume +/- CD Mode Loop select key： Repeat one/All/Random/Off USB Mode A-B repeat FM Mode / Search Number keys... -
Page 7: Cd Mode Operation
CD Mode Two ways to shift into CD mode： ① Press MODE until it shifts to CD mode ② Press CD key on remote to shift into CD mode ● Put a correct CD and pull the power switch,it will read and play CD automatically after power on. -
Page 8: Bt Mode Operation
Two methods to shift into BT Mode： ① Press MODE to shift to BT mode ② Press the BT key on remote Search the BT and pair with KECAG ● BT list name ”KECAG” ● When the CD player pairs with any BT enabled devices.It works the same theory as other BT... -
Page 9: Fm Radio Operation
FM Radio Two methods to shift into FM mode： ① Press the MODE butoon to shift from CD to FM mode ② Press the FM key on remote Full auto search / semi-auto search ●Full auto search：Under FM working mode,short press the FM key to start full-auto search，wait for a short time to complete the auto search and the searched channels will be saved into the number buttons.then you can press number keys on remote to play the related chanels.。... -
Page 10: Aux Mode Operation
AUX Mode Mobile audio singnal from external into CD player Tablet connect external device with CD player via its 3.5mm audio cable and then shift CD player into AUX mode Computer Two method to shift into AUX： ① Press MODE to shift to AUX mode ②... -
Page 11: Usb/Sd Flash Disk & A-B Repeat & Audio Output
USB/SD Mode、A-B repeat Two methods to shift into USB mode： ① Insert a USB drive in power-on condition and it will shift into USB reading automatically . First insert an USB drive into USB port ② Press USB/SD key on the remote to shift into USB mode ●Insert USB drive while power-on,CD player shifts into USB reading automatically... -
Page 12: Led Display & Led Light
LED display & LED light Multi color LED light Shows a related color in LED screen different working modes. Shows playing mode and playing time CD Mode USB Mode SD Mode BT Mode FM Radio... -
Page 13: Sleep Timer Operation
Sleep timer operation Use the clock key on the remote to set the sleep timer. A clock icon comes out on the display while the sleep timer is activated Setting: ● time set range: 30 - 180 minutes. ● the sleep timer is activated by pressing the clock key once and it sets starting with 30 mins ●... -
Page 14: Troubleshooting & Specifications
Specifications & Troubleshooting Specifications: 1. CD format support: CD,CD-R,CD-RW,MP3,WMA 2. FM Radio Range: 87.5KHz-108.0MHz 3. BT version 4.2 4. Speaker: 45mm X 2 5. Rated impedance: 4Ω 6. Speaker output: 3W x 2 7. Power supply: AC110-240V, 50KHz/60Hz 8. Power/Switch cable length: 2.5m 9. -
Page 15: Wall Mounting Instruction
Wall Mount steps to mount on the wall ② fix the CD player onto the plate ①-1 use three nail to fix the plate on the wall ①-2 use four screws to fix it first method is not firm enough. One step to mount it on the desk... - Page 16 THANKS FOR READING...
