TECHNICAL SPECIFICATIONS
Wi-Fi
2.4G - 300 Mbps 5G - 867 Mbps
2.4G
2T x 2R (IEEE 802.11a/b/g/n)
5G
2T x 2R (IEEE 802.11a/n/ac)
ANTENNA
High-performance WHEMS antenna
CPU
1GHz
WAN
1000Base-T Ethernet × 1
RAM
128 MB DDR2
LAN
1000Base-T Ethernet × 1
FLASH
1 Gb
AP
Yes
MESH
Yes
USB 2.0
Yes
POWER
12V / 1.5A
SIZE
100×100×125.5 mm
==============================================

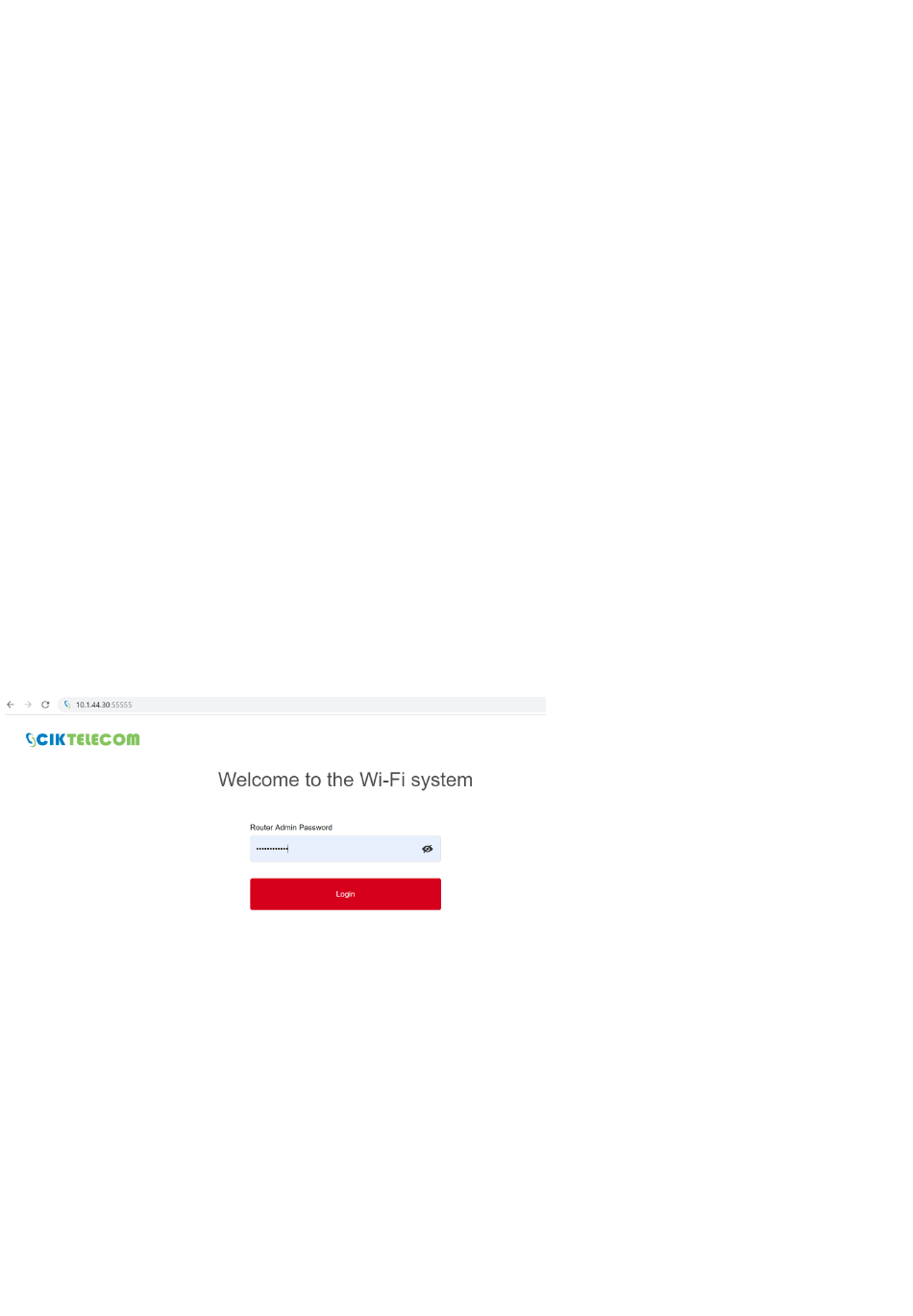

1. Logon the MESH M2 Router remotely.
If need Local Logon, connection shall be: MESH/LAN port-LAN port/PC.
2. if need pair the Bee/Second MESH Router, click: My Wi-Fi-manage the Router.
MESH Router Instruction for Senior Tech
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CIK Telecom M2
Summary of Contents for CIK Telecom M2
- Page 1 USB 2.0 POWER 12V / 1.5A SIZE 100×100×125.5 mm ============================================== 1. Logon the MESH M2 Router remotely. If need Local Logon, connection shall be: MESH/LAN port-LAN port/PC. 2. if need pair the Bee/Second MESH Router, click: My Wi-Fi-manage the Router.
- Page 2 3. add a node (Bee). 1). Click “ Add a node” . 2). Select add a “Bee“ or M2 Router. 3). Follow up the instruction by system till the Bee/wifi node has been added to M2 Router.
- Page 3 Need wait till the Light on Bee is Red Blinking( in beginning, after pressed “reset” button on Bee, the Light is”Red-Blinking -> Green Blinking-> Red-Blinking -> Green Blinking…, if the light pattern like this, the Router won’t find the Bee/second MESH Router, tech can let cx reboot the Bee/ second MESH Router once, but if the Light still be : Red-Green-Red Blinking, then hold the “Reset”...
- Page 4 After the Bee has been added to Router successfully, click” Back to home”, then we can find the Bee connecting to the Router. As long as the Bee/second MESH Router is connected to Master MESH Router with good Internet connection, the Light on the Bee/second MESH Router is Solid Green, Otherwise means the Bee/second MESH Router lost Internet connection when the Light Turned to Red.
- Page 5 4. Click: My Wi-Fi- Devices. review the DHCP Table for real time devices connection list. we can see all of the devices which connected to MESH by which band, realtime speed and usage/total traffic, IP/MAC, Parental Control/Limit: set connection time, speed limit and website blacklist; block device/Add to Blacklist which you doesn’t want it connect to MESH.
- Page 6 7. click: My Wi-Fi- Internet Settings, customer can change the Internet Connection Type and DNS Settings.
- Page 8 8. click: My Wi-Fi- Admin Password, customer can change new ADMIN password, we suggest customer not change it. 9. click: My Wi-Fi- Blacklist, check the device list which added to Blacklist, or remove device under blacklist.
- Page 9 10. click: My Wi-Fi- Time Zone , customer can change the Time Zone to proper one. 11. Click: Advanced Settings-port forwarding, customer can set the port forwarding by customer self.
- Page 10 12. Click: Advanced Settings- DMZ Host, customer can set DMZ settings . 13. click: Advanced Settings-DHCP, customer can change the Local IP Address/ Range and lease time.
- Page 11 14. Click : Advanced Settings-Static DHCP Lease. Customer can set Static DHCP Lease for specific device. 15. Click: Advanced Settings-Clone MAC address. Customer can set MAC Clone.
- Page 12 16. set DDNS by Click: Advanced Settings-DDNS. We suggest customer keep use CIK DNS except customer has to change it. 17. set VPN Settings by click: Advanced settings-VPN. If customer want to set VPN under MESH Router, customer need consultant with Own VPN Tech Support.
- Page 13 18. MESH Router provide 3 of NETWORK Command to conduct network diagnostics. 19. for now, CIK only support online firmware upgrade instead of Local firmware Upgrade.
