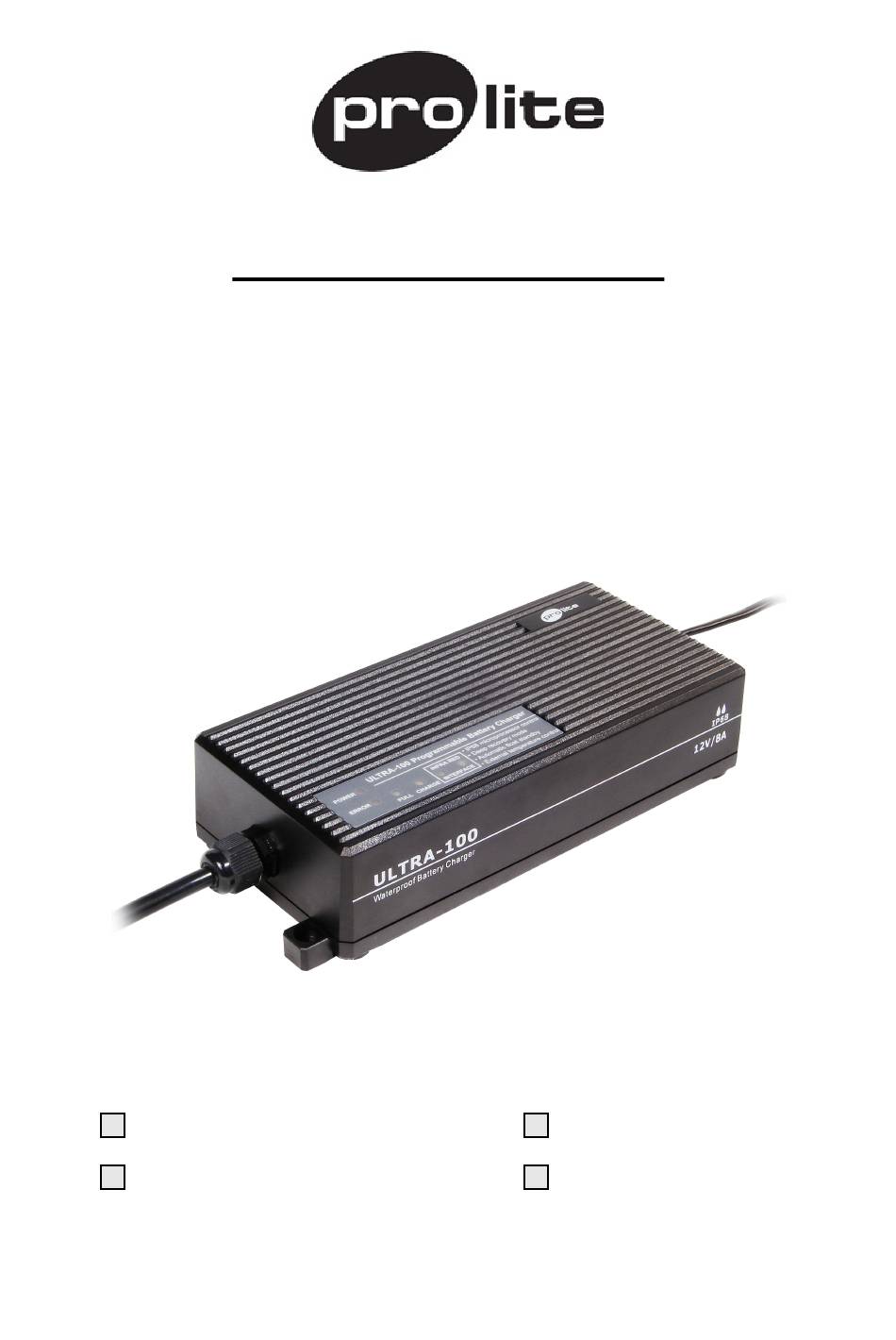

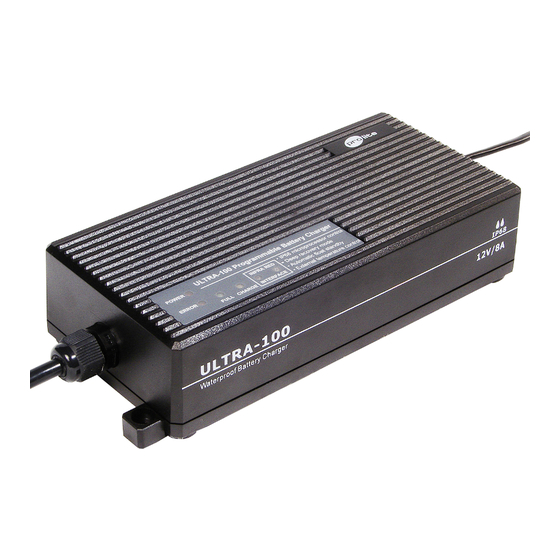

- Page 1 I N S T R U C T I O N M A N U A L -- ULTRA-100 Series -- Waterproof (IP68) Programmable Battery Charger 100 – 264V AC Input 12V / 4A 01UC/12-4/IPE 24V / 2A 01UC/24-2/IPE 12V / 8A ...
- Page 2 Prolite INSTRUCTION MANUAL ULTRA-100 series 1. General Information This waterproof Ultra Charger has been developed for the use in harsh environments, and in situations where water may be present. It is able to charge any lead-based battery, including Gel-, AGM-, Wet- and Ca- battery types.
- Page 3 Prolite INSTRUCTION MANUAL ULTRA-100 series 4. Product Overview 1. DC-output cable 4. Green Full-LED 7. Infra Red - Sender 2. Red Power-LED 5.Yellow Charge-LED 8. AC-input Cable 3. Red Error-LED 6. Infra Red - Receiver 9. Extractable Hook 5. Operation ATTENTION: •...
- Page 4 Prolite INSTRUCTION MANUAL ULTRA-100 series 15V for a 24V battery, then the charger uses pulse to wake-up the battery, but after 70 cycles, the charger will stop as the battery is deemed to be unrecoverable. 2. Charging phase: soft start This charging step is indicated by constant lighting of the Charge-LED.
- Page 5 Prolite INSTRUCTION MANUAL ULTRA-100 series 7. Troubleshooting No LED lights show after connection to the mains: - Check connections to the battery are correct and secure. - Check that the polarity is connected correctly. - Check that the mains plug is correctly plugged in.
- Page 6 Prolite INSTRUCTION MANUAL ULTRA-100 series • Ritelite (Systems) Ltd guarantees replacement or repair of chargers that are recognised as defective within 1 year under common environmental conditions. The validation of the warranty time starts with the delivery date from the manufacturer. Ritelite (Systems) Ltd is limiting the free guaranteeing to working hours and spare parts only.
