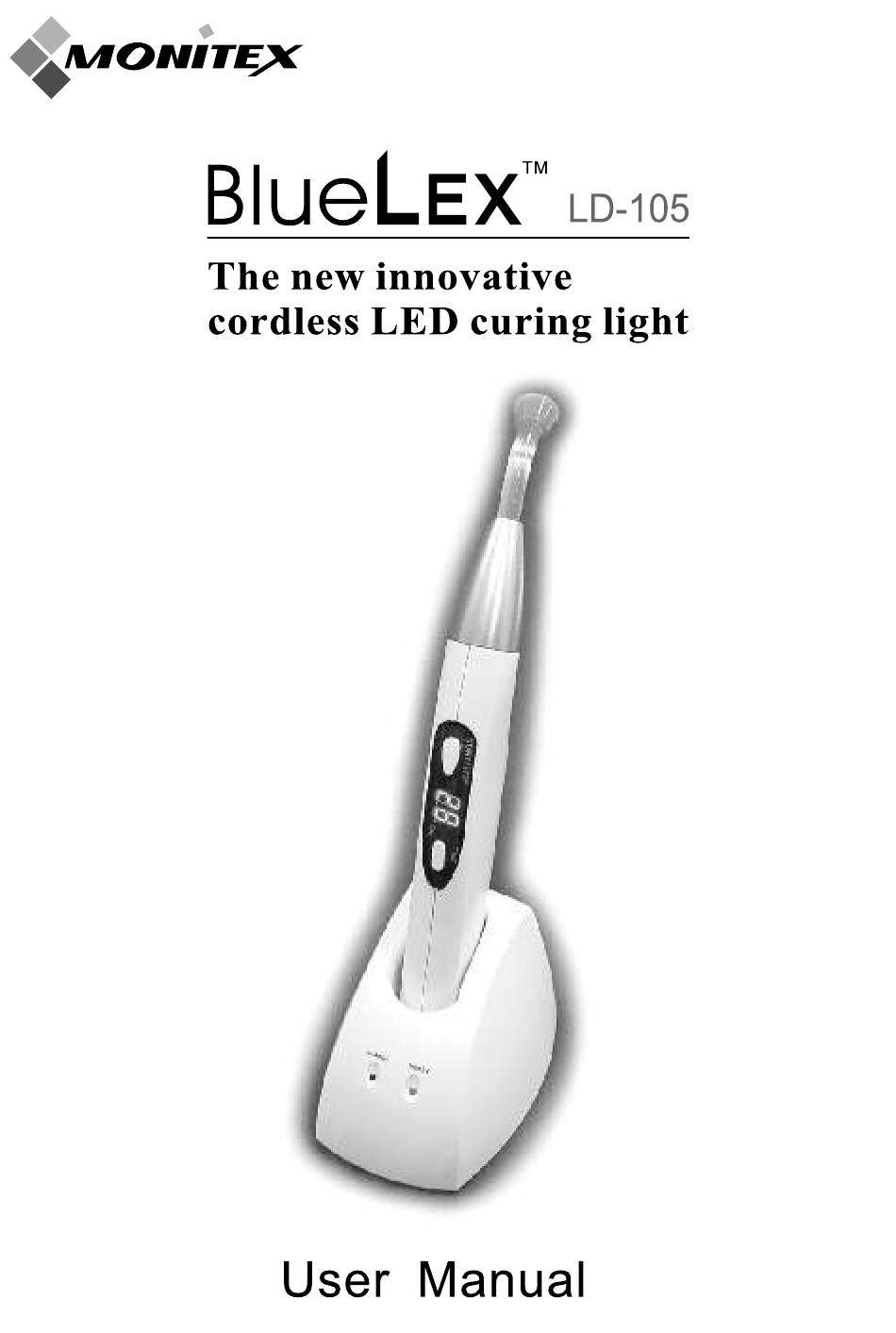

Summary of Contents for Monitex BlueLex LD-105
-
Page 2: Table Of Contents
Table of Contents PREFACE ------------------------------------------------------- 1 DISCLAIMER -------------------------------------------------- 1 SAFETY PRECAUTIONS ------------------------------------- 2 PARTS AND FUNCTIONS ------------------------------------ 3 GENERAL INSTALLATION ---------------------------------- 4 PANEL OPERATIONS ----------------------------------------- 5 COOLING SYSTEM ------------------------------------------ 6 CHARGER SIGNALS ----------------------------------------- 7 TROUBLE SHOOTING ---------------------------------------- 8 ENVIRONMENTAL CONDITIONS OF TRANSPORT AND STORAGE ------------------------------------------------ 8 DEVICE SPECIFICATION ------------------------------------ 8 MAINTENANCE CHECK LIST ------------------------------ 9... -
Page 3: Preface
WARNING : Beware of high temperature and strong light. Do not look directly into the light source without eye protection. PREFACE LD-105” high efficiency Upon your purchase of the “ LED (Light Emitting Diode) curing light, please pay attention to the following contents. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please follow instruction steps in this manual for correct and safe operations of the device. Pay high attention to the following warning signs beside the operation descriptions where applicable. a) DANGER ─ This message appears where the operation may potentially cause severe injury if instruction not followed correctly. -
Page 5: Parts And Functions
PARTS & FUNCTIONS PART A The LED Handpiece : (1) Button switch TIME (Power on) (2) Button switch START/STOP (3) Fiber optic probe (8 mm) (4) Handpiece cover (5) Anti-glare cone (6) DC Charger input receptacle PART B The Charger : (1) DC Charger stand (2) DC Adapter (9V) -
Page 6: General Installation
GENERAL INSTALLATION ** Please follow the instructions below carefully to insure proper function of the device. 1. Insert the fiber optic probe into the handpiece and make sure it is securely installed at the fixed position. 2. Put the orange anti-glare cone onto the fiber probe and adjust the cone position on the probe according to the dentist's preference. -
Page 7: Panel Operations
Mode of Operation : BlueLEX will automatically switch “off” after being left at idle for 25 seconds. User may press the “TIME” button to turn the power on again. For every operation, 2 seconds before curing end, the “Beeping” will sound as warning. -
Page 8: Cooling System
Please wait for approximate 5 minutes to allow complete cooling for the unit. It can be active again. When repetitive curing process is required, please be sure to shorten the "time" for each curing cycle. The BlueLEX LD-105 is not suitable for the use for "Bleaching". -
Page 9: Charger Signals
CHARGER SIGNALS ** Please note the following different color signals indicating the current status of the charger stand, to charge or recharge the LED handpiece. (green) (red) CHARGE READY Current Status Signal Signal Charger is Ready Charging in Progress Charging is Finished Battery is Defective Flash green... -
Page 10: Troubleshooting
TROUBLESHOOTING CAUTION : When failures or errors occur, please use the table below to try and fix the device. If it remains problematic, please send back to the manufacture for repair. DESCRIPTIONS FAILURE CAUSE SOLUTION No signs of electrification Defect on Li-Ion battery or time display even when Return to the dealer or Defect on main IC board... -
Page 11: Maintenance Check List
MAINTENANCE CHECK-LIST PASS REPLACE TIGHTEN CHECK REPAIR CLEAN DISASSEMBLE TUNE-UP LUBRICATE The first inspection was done on____/____/____/. (dd/mm/yy) The previous inspection was done on____/____/____. (dd/mm/yy) MAINTENANCE CHECK IS BEING DONE EVERY_______MONTH CHECK POINTS : INSTALLATION : ____INSTALLATION SITED ON A FIRM FOUNDATION ____INPUT VOLTAGE IS CORRECT ____GROUND ELECTRICAL SOCKET IS PRESENT HARDWARE : (DEVICE) - Page 12 INDUSTRIAL CO., LTD 6F, 70, SEC. 1, GUANG-FU ROAD SAN-CHONG CITY, 24158, TAIPEI COUNTY, TAIWAN TEL : 886-2-29993869 FAX: 886-2-29993647 E-mail : monitex@monitex.com.tw http://www.monitex.com.tw Copyright© 2010 MONITEX Industrial CO., LTD. All Rights Reserved. 2010.08 (Ver. 1)
