- Page 1 User Manual Apollo Cloud Gateway...
- Page 2 User Manual Introduction <<User Manual>> It mainly introduces the product introduction, hardware connection, usage method and suggestions for use of Hored-M1 gateway. Chapter 1: Product Overview. Product characteristics, hardware / software specifications and appearance. Chapter 2: Hardware Connections. Refers to the connection between the gateway and other devices.
-
Page 3: Chapter 1: Product Overview
深圳 Chapter 1: Product Overview 1.1 Brief introduction M1 is an Apollo-full Gigabit controller for switch applications such as chains hotel, star hotels, small and medium-sized businesses, etc., which is used for switch management of Hored's total solution. The M1 provides five 10/100/1000Mbps adaptive Ethernet ports for up to 128 switches. - Page 4 深圳 Automatically identify and manage information of attached devices Cloud pass-through function Implement the data transmission between cloud-gateway- switch- Attached PD device. Supports up to 128 devices Unique multi-capacity access technology ensures simultaneous access of 128 devices 1. 3 Hardware / software specifications Hardware specification：...
- Page 5 深圳 ·Input：100-240V50/60HZ ·Output：12V- 1A Power ·Maximum power supply：5.21W supply Resetbutton（long press 5~10s to restore factory default configuration） ·Dimension(LengthxWidth xHeight）： Physical 159*104.5*37*mm ·Weight：0.6kg specification ·Operation temperature: 0°~40°C Environment ·Storage temperature：-40°~70°C specification ·Operation humidity：10%~90%, non-condensing Safety ·CE/ROHS/FCC/CCC specification Software specificaiton： · 1000Mbpsfull duplex Transmissi on rate ·...

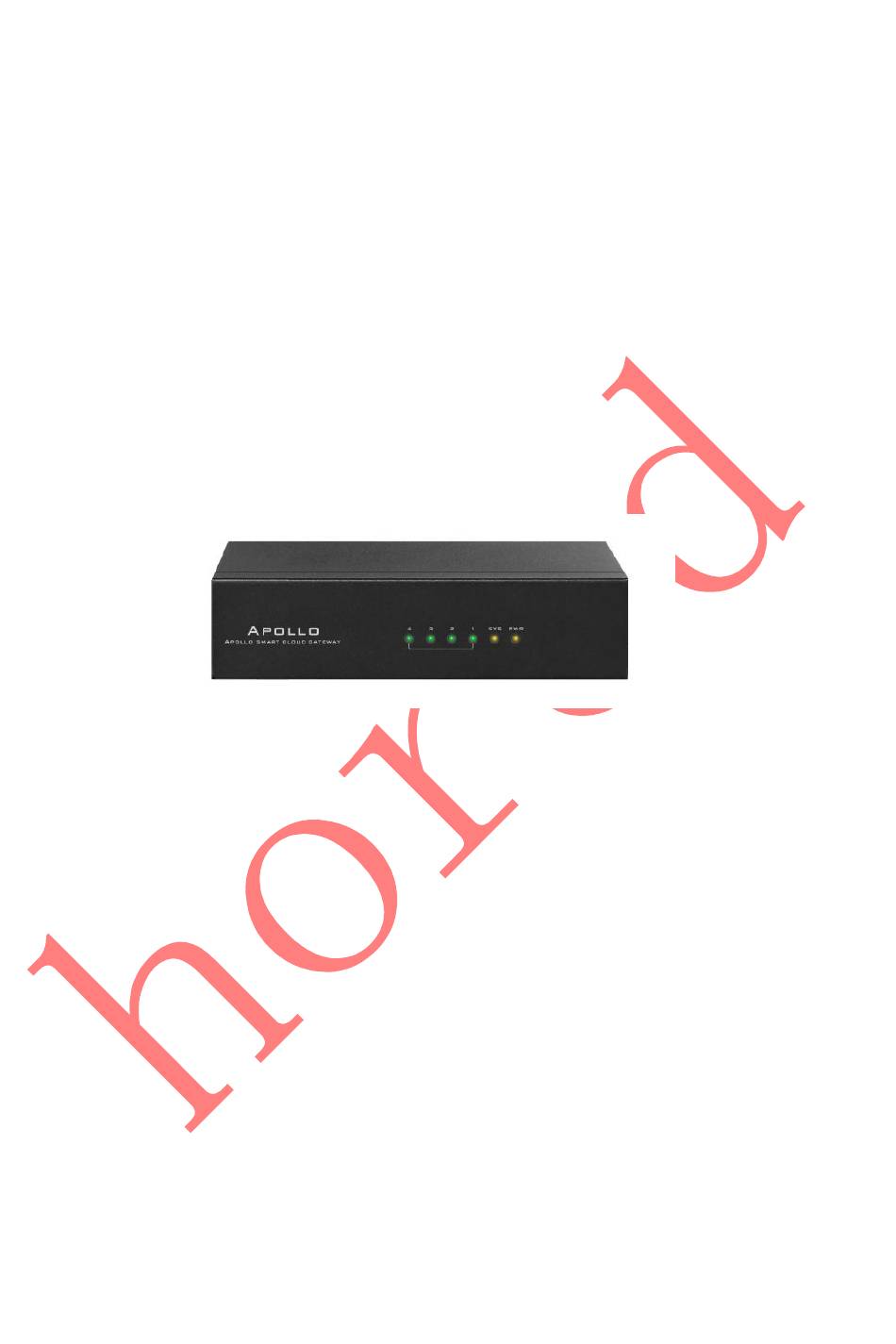

- Page 6 深圳 • Support discovery and access to PC terminal function information • Support SNMP protocol, discover and manage devices which support SNMP protocol • Cloud pass-through function. Realize data transmission of the connected device Safety · CE/ROHS/FCC/CCC specification 1.4 Appearance Front panel Includes port indicator, system indicator, and power light, as shown below...
- Page 7 深圳 Blinki Device connection is normal System The port is not connected indicator / the connection is abnormal. Device Corresponding port is not connection LINK/A connected / the indication connection is abnormal. Corresponding device connection is normal Rear panel Includes RJ45 port, power port, reset hole, as shown below Port Name...
- Page 8 深圳 port1-4 Used to connect switches 45port RJ 45 port5 Used to connect switches, port 5 also can be used as WAN port Connect the power adapter to power the gateway DCpower (supports 12V-1A, it is supply recommended to use its own adapter)
-
Page 9: Chapter 2 Hardware Connection
深圳 Chapter 2 Hardware connection Product connection diagram： Chapter 3 Product Guidelines Login---Login on the Gateway Management Page 1. After connecting to the gateway, enter the address: 192.168.254.254 to enter the management interface:... - Page 10 深圳 2. Enter the account number: admin, password: admin, you can enter the gateway management interface System Information---Overview of M1 Gateway Version Information and Number of attached Devices...
- Page 11 LAN port setting---automatically assign IP address Cloud registration --- Support cloud registration, user binding a. Cloud registration: Connect to the Apollo platform for management and control devices through a registration code...
- Page 12 b.User binding: support binding between the gateway and the user account System Management---Support system settings, firmware upgrade, configuration file upload/import, reset a. System Settings: Manage System Account Password...
- Page 13 b.Firmware upgrade: support local firmware upgrade c.Restore/Export/Upload Settings: Complete the configuration upload, export and restore default configuration...
- Page 14 System record---Support system general record file and routing table record a. General record file: export view of system record file b.Routing table: View the specific routing status...
-
Page 15: Chapter 4. Packing List And Usage Recommendations
Chapter 4. Packing list and usage recommendations 4.1 Open the package and check the list below. Item Quantity Description Gateway Power cable For power supply Warranty Card For after-sales maintenance User manual Used to guide users to install and use the gateway 4.2 Suggestion 1. - Page 16 and no ventilation; 8. Please do not place heavy objects on the gateway to avoid accidents; 9. It is recommended to use the gateway indoors. It is recommended to add a waterproof box when using it outdoors. Note: The pictures in the manual are for reference only, whichever is subject to the actual product.
