Summary of Contents for SIRIUS PRO CDXS-1000

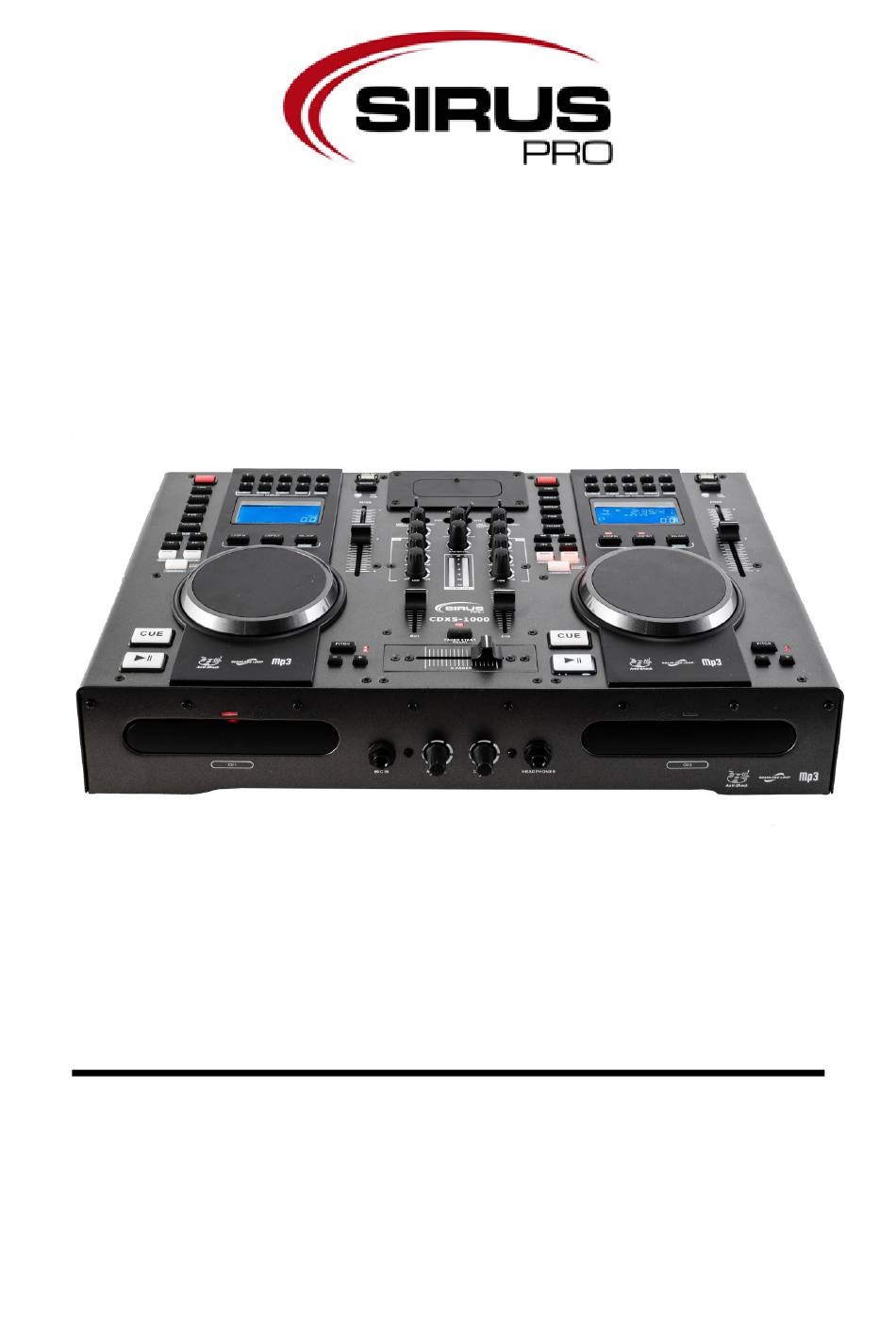

- Page 1 Manual Audio player CDXS-1000...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. Instructions for a safe and efficient operation Be careful with heat and extreme temperature 1.2. Further safety instructions ....................... 4 1.2.1. Safety-related red flags ....................4 1.2.2. Designated use ........................ 4 Introduction ............................6 Connections ............................. -
Page 3: Safety Instructions
1. Safety instructions • This Device is suitable for indoor use only. • All modifications will void the warranty. • Repairs have to be carried out by skilled personnel only. • Only use fuses of the same type and original parts as spare parts. •... -
Page 4: Further Safety Instructions
1.2. Further safety instructions IMPORTANT Keep away from water and humidity! Make sure to unplug the power supply before opening the housing! Please read careful through this manual before the first start-up. All persons which are entrusted with installation, start-up, operation, maintenance and repair of this device have to: •... - Page 5 Make sure that the device is not exposed excessive heat, humidity or dust at the place of installation. Take care that no cables are lying around. You would endanger your own safety and also the safety of a third party. It is not allowed to operate or store the device in an environment in which spray water, rain, humidity or fog is expected.
-
Page 6: Introduction
2. Introduction Thank you for buying the Audio player CDXS-1000. It is a powerful device. For a successful installation and operation, please read this manual carefully. 3. Connections 3.1. Electrical connections Connect the fixture to the mains with the enclosed power cable and plug. -
Page 7: Control
4. Control 1. Eject button Press this button to eject or load the CD. Every pressing opens or closes the drive. Note! The drive does not open until you have pressed STOP or PAUSE. 2. Time button Use this button to define the time mode. There are three modes; with every press of the button you change the mode: Elapsed Time: Elapsed time of the Title... - Page 8 5. Prog button In this mode, you can program up to 20 tracks that are played one after the other. • Press STOP • Press PROG • Use TRACK SELECT Buttons to choose the required song and press PROG again. •...
- Page 9 17. Pitch Control Use this fader to increase or decrease the speed. 18. Re-Loop button This button is used to start the last recorded Loop. To release the Loop press RE-LOOP again. 19. Loop-in button With this button you can confirm the starting point of the Loop recording. 20.
-
Page 10: Front Side
5. Front side 24. CD Tray Here you can insert and load the CD. 25. Mic Input Here you can connect a microphone with a ¼“ jack. 26. Mic control Here you can control the volume of the microphone. 27. Cue Level Control With this control you can control the volume of the headphones. -
Page 11: Mixer Section
6. Mixer Section 1. Source button Press this button to select between CD, USB, iPod or Midi. 2. USB Port Here you can connect a USB stick. Note! This connection does not support external hard drivers. 3. CD LED This LED illuminates if the CD mode is activated. 4. - Page 12 12. Cue/Mix/Pgm Control With this control you can set the balance between the master and the cue signal. The output is via the headphones. 13. Cue for Ch 1-2 Here you can choose the input source for the headphone cue setting. 14.
-
Page 13: Back Side
7. Back side 18. Power supply Use only the included power cable. 19. Power button With this button you switch the device on or off. 20. XLR balanced Balanced XLR stereo connections. Signal output. 21. Stereo Main output Unbalanced RCA connector. 22. - Page 14 14 / 16...
- Page 15 15 / 16...
- Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
