Summary of Contents for Altor ATDAC-10S

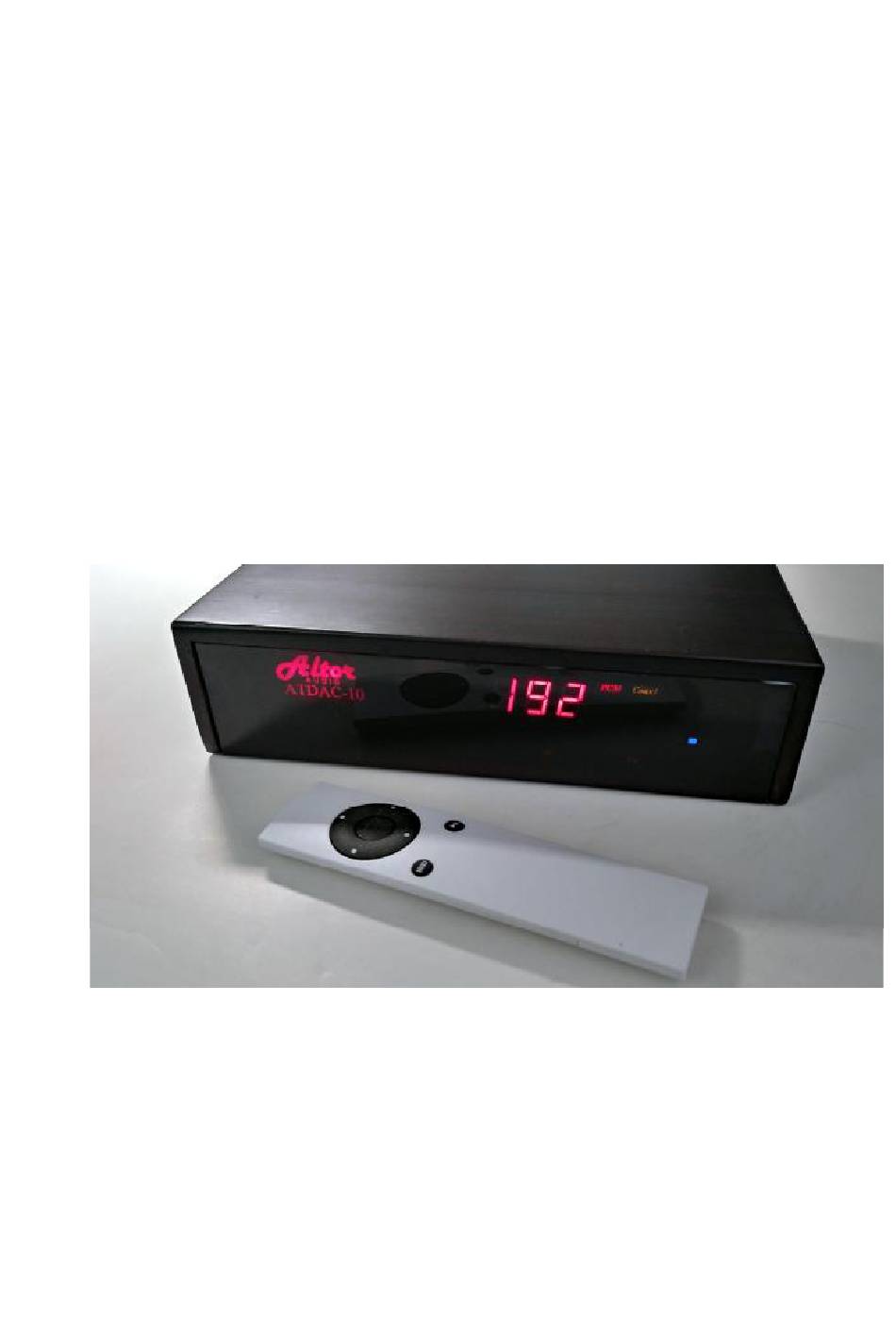

- Page 1 Altor A U D I O ATDAC -10S (10S3, 10S7) USER MANUAL ©2018. ®Altor Co Netanya, Israel...
- Page 2 Altor A U D I O Description: ATDAC-10S is a high performance Digital To Analog Converter/Preamplifier. Models Line: • ATDAC-10S - based on AK4490 DAC chip. • ATDAC-10S3 - based on AK4493 DAC chip. • ATDAC-10S7 - based on AK4497 DAC chip.
- Page 3 Stop condition start FIFO operation from the beginning. So, if you see correction and hear the sound degradation - simply make Stop and then Play again. Usually, the FIFO depth is enough for one CD and even more and you will not see the FIFO overloading. ©2018. ®Altor Co Netanya, Israel...
- Page 4 Next press will change the corresponding value. You can do it by single or continuous presses. Mention that Standby key do nothing for USB/SPDIF/TOSLINK inputs during the Play. Just from the Stop mode you can enter standby. ©2018. ®Altor Co Netanya, Israel...
- Page 5 This feature allow the user to choose between various types of the digital filters (sharp/slow roll-off, long/short delay, etc.) according to his/her sound preferences. ATDAC-10S remember the digital filter mode separately for each PCM/DSD sample rate. It is not recommended to use DF>4 for 44/48kHz because of a high frequency degradation.
- Page 6 Using external amplifier control: ATDAC-10S have galvanic isolated digital (dry contact, i.e. - open collector) output which is dedicated to control the external amplifier. Dry contact is closed (short) if ATDAC-10S is not in standby. 3.5mm Jack is used for connection.
- Page 7 Change configuration and firmware upgrade (DFU): Sometimes the user wants to change the behavior of his device. ATDAC-10S has parameters block, which can be downloaded to PC or uploaded from PC to device. Using the special configuration PC software, it is possible to change for example - standby parameters (timeouts), inputs order, inputs using, etc.
- Page 8 Then disconnect the device from PC. Remember: To write the new file - please previously delete the old one! If you make a mistake and want to write the file again, disconnect device from PC and connect again! ©2018. ®Altor Co Netanya, Israel...
