Summary of Contents for Ampcontrol iMAC2

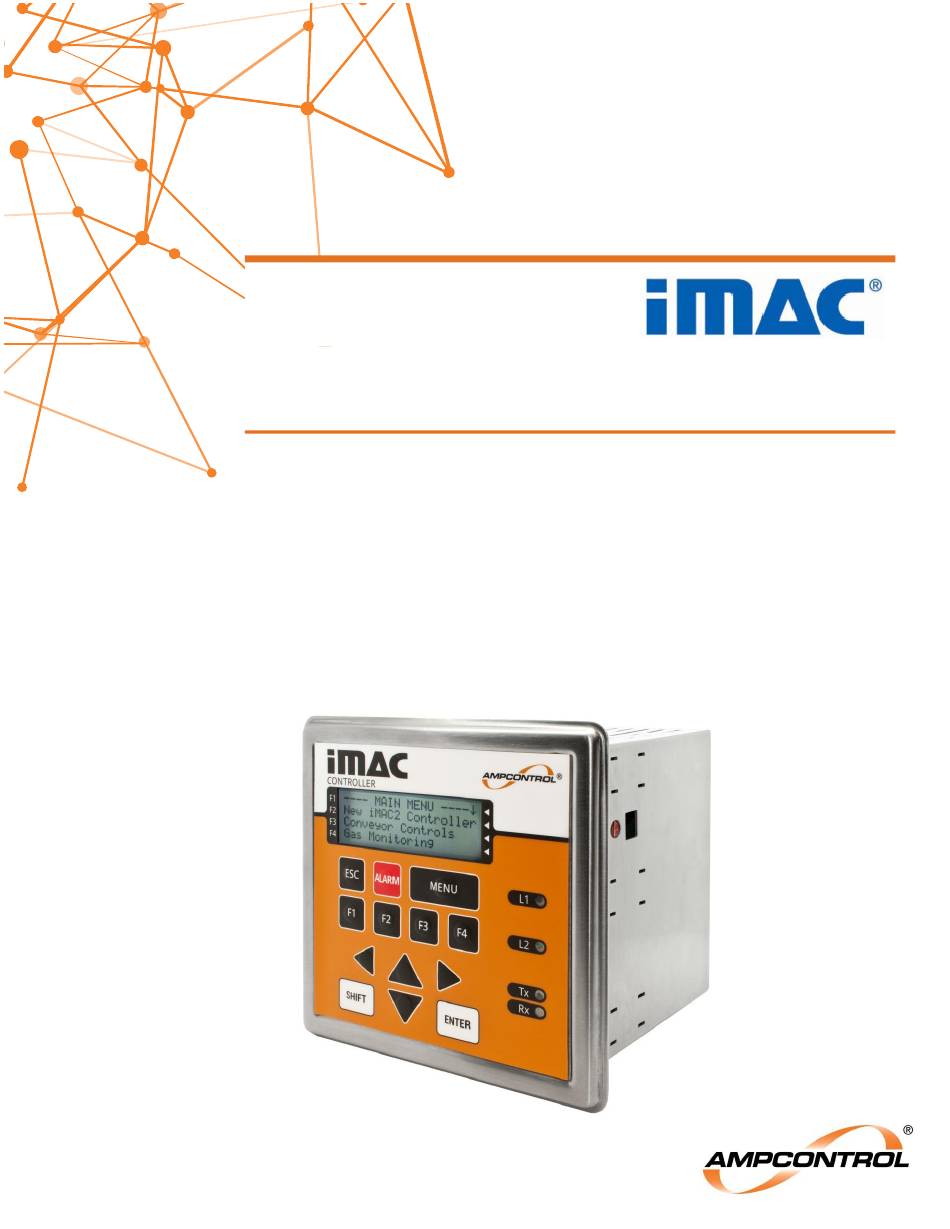

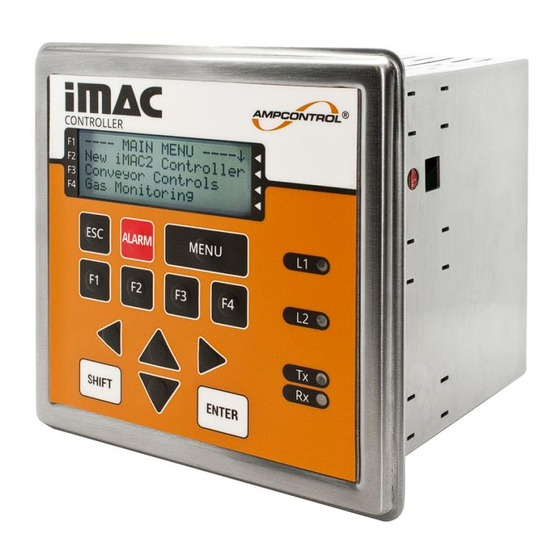

- Page 1 Integrated Monitoring and Control System iMAC2 User Manual Version: 4 – October 2018 Designed and Manufactured in Australia by Ampcontrol Pty Ltd...
- Page 2 Please share these notes with other operators. ENVIRO The enviro (environmental) symbol highlights areas which may have an impact on the surrounding fauna and/or flora. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 1 of 53...
- Page 3 The iMAC signalling technique is protected by patent. Disclaimer While every effort has been made to assure the accuracy and clarity of this document, AMPCONTROL PTY LTD assumes no liability resulting from any omissions in this document, or from misuse of the information obtained herein.
-
Page 4: Table Of Contents
Digital Inputs ....................25 Relay Outputs ....................26 Serial Communications Port ................26 Ethernet Communications Port ............... 27 Fieldbus Ports ....................27 Memory ......................27 IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 3 of 53... - Page 5 Controllers & Accessories ..............49 Intrinsically Safe Barriers ................49 Intrinsically Safe Remote Keypads ............... 49 Digital Input Modules ..................50 Analogue Input Modules ................50 IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 4 of 53...
- Page 6 V4 – 10/18 Output Modules .................... 51 Serial Interface Modules ................52 Specialty Modules ..................52 Protection Modules ..................52 EOL and MEOL Modules ................53 IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 5 of 53...
- Page 7 Figure 10.4: iMAC System Menu –Home Page Figure 10.5: iMAC System Menu (Maintenance Page) Figure 10.6: iMAC System Menu (Serial Communications Page) Figure 10.7: iMAC System Menu (Version Page) IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 6 of 53...
-
Page 8: Introduction
Controller or modules, or how to access the Modbus communication registers. Please refer to the relevant supplementary documents for this information. Supplementary Documents The iMAC2 System User Manual is intended to be read in conjunction with the following documents: 1.2.1 System Documentation ... -
Page 9: Definitions
Monitoring Line. A-Line The Signal Line in a 3-wire system. The Auxiliary Relay (AR) of the iMAC2 Controller. The operation of the AR can be customised using the application (SLP) software. B-Line The Monitoring Line in a 3-wire system or the Signal Line in a 2-wire system. - Page 10 Controller and hazardous area L1 fieldbus. Relay Output Module (4x relays) that connects to the iMAC L1 fieldbus. Provides four relay outputs that can be remotely controlled by the iMAC2 Controller, or linked to follow the states of an iMAC input module.
-
Page 11: Fieldbus System Configurations
2-Wire systems are typically used for low cost emergency stop systems or for monitoring systems that don’t require an emergency stop function such as a mine wide gas monitoring system. If the iMAC2 Controller emergency stop function is not required, the EOL module is not required, however an EOL module is still recommended for providing fieldbus diagnostic functions. -
Page 12: Figure 1.2: 3-Wire Imac Fieldbus System Configuration
Figure 1.3: MLB Intrinsic Safety Barrier (Provides both 2-Wire and 3-Wire Terminal Connections) WARNING! The MLB barrier must be installed in the safe area. For full intrinsic safety requirements, please refer to the I.S. documentation. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 11 of 53... -
Page 13: Safety And Other Warnings
As safety depends on the iMAC System functioning correctly it is highly recommended that all safety functions of the system be periodically tested to ensure correct operation. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 12 of 53... -
Page 14: Receiving And Storage
Equipment that is found to be damaged or has been modified away from its published specification must not be used. Please contact Ampcontrol if the equipment is suspected to be different than that ordered or if it does not match the published specifications. -
Page 15: Imac System Overview
Ampcontrol has a number of optimised iMAC fieldbus cables available to cater for your specific system requirements. Please consult with a qualified Ampcontrol applications engineer whom will be able to discuss and advise the most cost effective cable to meet your requirements. -
Page 16: Typical Installation
A host system (e.g. PLC) can communicate with the iMAC2 Controller via a configurable RS232/RS485 serial port using Modbus protocol. Data can be exchanged between iMAC2 Controller and host system via a read/wire Modbus register map. The iMAC2 Controller provides an Ethernet TCP/IP port that allows read- only access to the iMAC2 Controller’s Data Point Table. -
Page 17: Application Software
Temperature input modules are available for monitoring temperature via PT100 RTD sensor elements. 4.3.2 Output Modules Output modules can be controlled directly from input modules or indirectly via iMAC2 Controller application (SLP) software. In addition to general relay output modules, specialised output modules are available for duplicating the iMAC2 Controller Control and Auxiliary relays for redundancy and for passing belt sequence. -
Page 18: Imac Address Range
ERROR register. The module’s status bits, fieldbus loop resistance and number of communication errors are recorded in these registers which are available to host systems via the Modbus interface. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 17 of 53... -
Page 19: Networking
V4 – 10/18 Networking The iMAC2 Controller is equipped with two fieldbus ports, the L1 driving port and the L2 listening port. Controllers can be networked together by connecting the listening L2 fieldbus port of one Controller to the parent driving L1 fieldbus of another Controller. -
Page 20: Local And Global Data
L2 Sequence Down Bit The “L1 Sequence Down Bit” and the “L2 Sequence Up Bit” are used by the iMAC2 Controller to initiate downstream and upstream sequenced starts (respectively). These bits can be set and cleared by the Controller’s application (SLP) software. This is in contrast to the “L1 Sequence Up Bit” and the “L2 Sequence Down Bit”... -
Page 21: Figure 4.3: Example Of The Use Of Upstream Sequence Bits For Conveyor Sequence Control
L1 Sequence Down Bit on the L1 fieldbus port Figure 4.4: Example of the use of Downstream Sequence Bits for Conveyor Sequence Control IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 20 of 53... -
Page 22: Emergency Stop Sil Qualification
V4 – 10/18 Emergency Stop SIL Qualification The primary safety function of the iMAC2 Controller is that its Control Relay (CR) will de-energise on loss of communications with the iMAC EOL module. This allows an emergency stop system to be implemented simply by installing emergency stop switch contacts in series with the signal line that connects iMAC2 Controller to EOL module. - Page 23 The user is responsible for ensuring that the Ex ia Intrinsic Safety certification is maintained by complying with the “Conditions of safe use” outlined in the certificate IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 22 of 53...
-
Page 24: Fieldbus Signalling Protocol
The iMAC system is not compromised by line capacitance or inductance because of a fixed transmission baud rate. The transmission speed is selectable so the data throughput can be optimised at commissioning for the particular system type. All iMAC modules are auto-bauding, automatically adapting to the iMAC2 Controller’s selected baud rate. -
Page 25: Imac2 Supervisory Controller
This plug contains the connections for the This plug contains the connections for the iMAC2 Controller’s serial communications iMAC L1 and L2 fieldbus ports port. Figure 6.3: iMAC2 Controller (Rear) IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 24 of 53... -
Page 26: Power Supply
Figure 6.4: iMAC2 Controller Terminal Layout Power Supply The iMAC2 Controller requires a 24VDC power supply. Refer to Section 12 for further details. Digital Inputs There are three general purpose voltage free inputs on the rear on the Controller. These can be used as general purpose digital inputs to the application (SLP) software. -
Page 27: Relay Outputs
The Ampcontrol IP Protocol reads data from the General Buffer area of the Controller’s Data Point Table. The application software of the iMAC2 Controller must move data into these registers in a specific format to allow transfer of information between systems. Refer to the IMACB153 iMAC Controller Serial Communications Manual for more details. -
Page 28: Ethernet Communications Port
The L1 fieldbus port is the primary fieldbus port to which the iMAC modules are multi-drop connected. The iMAC2 Controller is orderable in one of two L1 fieldbus operating voltage options: 18V and 21V. The 18V option must be used for intrinsically safe systems, the 21V option is only recommended for large > 7km non-intrinsically safe systems. -
Page 29: Data Point Table
Figure 6.6: iMAC2 Controller’s Data Point Table Each iMAC2 Controller has an allowance for up to 255 16-bit data registers to be utilised by iMAC fieldbus modules. Each data register has an associated status register, resistance register, and error register. -
Page 30: Imac Fieldbus Modules
(and the I.S. rating) will not be valid. For further information on the MLB and SLB modules, refer to their respective technical datasheets. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 29 of 53... -
Page 31: Figure 7.1: Utilisation Of Mlb And Slb Barriers In An Intrinsically Safe System
RO4 Module DI8 Module IIM Module EOL Module (One per L1 Fieldbus) Figure 7.1: Utilisation of MLB and SLB Barriers in an Intrinsically Safe System IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 30 of 53... -
Page 32: Intrinsically Safe Remote Keypad
The iMAC System has three types of digital input modules available. These modules use voltage free contacts as inputs and store the state of these inputs in the module’s registers. These registers are available to be accessed by the iMAC2 Controller, and any output modules that have been set to the same address. Type... -
Page 33: Output Modules
Provides 1 x Sequence Relay Output and 1 x Provides remote sequence controls e.g. for Sequence Module Reverse Sequence Digital hardwired I/O conveyor sequence controls. Input. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 32 of 53... -
Page 34: Serial Interface Modules
Serial Interface Modules The iMAC System allows certain external equipment to communicate with the iMAC2 Controller through the use of Serial Interface Modules. These modules form a communication bridge between the iMAC System and compatible RS485 Modbus devices, allowing up to 16 Modbus Holding Registers to be read from a Modbus Slave RTU device and be transmitted to an iMAC2 Controller across the iMAC Fieldbus. -
Page 35: Specialty Modules
Modules. End-of-Line Modules iMAC End-of-Line modules form a key part of the safety feature of the iMAC System. In order for the iMAC2 Controller Control Relay (CR) to be energised, the Controller must be successfully communicating with the End-of-Line module. -
Page 36: Installation
These instructions have been designed to assist users of the iMAC System with the installation of the iMAC2 Controller. Before the iMAC2 Controller can be installed, there are a number of points that need to be considered and understood to prevent incorrect or unsafe operation of the iMAC2 Controller or the greater system into which it is installed. -
Page 37: Mandatory Installation Practices
V4 – 10/18 Mandatory Installation Practices The following information must be adhered to when installing the iMAC2 Controller. Failure to adhere to this information may give rise to unsafe operation. Using the iMAC2 Controller in a manner that exceeds its electrical, functional or physical specifications, or in a way that is contrary to its operating restrictions, may increase risks to personnel and/or equipment resulting in injury or death. -
Page 38: Mechanical Arrangement
V4 – 10/18 Mechanical Arrangement The iMAC2 Controller is housed in a metal enclosure and is intended to be panel mounted. When panel mounted correctly using the supplied mounting brackets, the fascia gasket provides an ingress protection rating of IP55. The iMAC2 Controller must be mounted with the supplied gasket to maintain this IP rating. -
Page 39: Commissioning And Calibration
FMEA covering the design of the electrical protection system. For assistance in installing and commissioning an iMAC System, contact Ampcontrol. IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version... -
Page 40: Imac2 Controller Operation Summary
System User Manual iMAC2B009 V4 – 10/18 iMAC2 CONTROLLER OPERATION SUMMARY This section provides an overview of the operational principles of the iMAC2 Controller. The topics covered include navigating the user interface, the user programmable L1/L2 LEDs and the communication status LEDs. -
Page 41: Imac2 Controller User Interface
10.1.2 [MENU] Key The [MENU] key allows the user to navigate directly to the main menu of the iMAC2 Controller application (SLP) software. From here it is possible for the user to navigate to a number of sub-menus using the [UP] and [DOWN] arrow keys, in combination with the function keys [F1] to [F4]. -
Page 42: System Menu
[F4] key will navigate to the Version Page be disabled (1 = Enabled, 0 = Disabled). Figure 10.4: iMAC System Menu –Home Page IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 41 of 53... -
Page 43: Figure 10.5: Imac System Menu (Maintenance Page)
Maintenance Page will reset these counters, depending on the value of MinSysMenu bit, this function may be disabled (1 = Enabled, 0 = Disabled). IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 42 of 53... -
Page 44: Figure 10.6: Imac System Menu (Serial Communications Page)
The version string / number of the installed The version string / number of the installed Operating System Software Application (SLP) Software Figure 10.7: iMAC System Menu (Version Page) IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 43 of 53... -
Page 45: Imac2 Controller Leds
Selectors & DIP Switches The iMAC2 Controller has a 16 position rotary selector switch and a set of 4 DIP switches accessible from the side wall of the enclosure. These can be used as inputs into the application (SLP) software to perform user defined functions. -
Page 46: Service, Maintenance & Disposal
This type of inspection may involve opening cabinets to gain access to the iMAC2 Controller, iMAC Modules and other equipment. This level of inspection may also include cleaning display windows that have become obscured by dust/debris. -
Page 47: Equipment Maintenance
Ampcontrol service WARNING! department/agency only. If a fault develops, return the equipment to an authorised Ampcontrol service department/agency for repair. It is essential that no attempt be made to repair the equipment as any attempt to dismantle or repair the equipment will void the warranty and certification of the unit or system. -
Page 48: Imac2 Controller Specifications
Output Relay Contacts (CR, AR Terminals) 1 x NO Control Relay (CR) Contact Contacts 1 x NO Auxiliary Relay (AR) Contact Ratings (Resistive) 10A, 250VAC, 30VDC (min 10mA, 5VDC) IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 47 of 53... - Page 49 Webserver (for configuration, data viewing and diagnostic functions) Maximum Request 100ms Rate Recommended 100ms Response Timeout Maximum Concurrent The iMAC2 Controller allows four users to access the web server Web Connections simultaneously Real Time Clock I.S. Battery 3V Lithium Certification IECEx TSA 11.0064X...
-
Page 50: Equipment List
Controllers & Accessories 13.1.1 iMAC2 Controllers The iMAC2 Controller is available in two different models: Standard Controllers and Long Controllers. Standard Controllers use an 18V fieldbus voltage and are recommended for all systems less than 7km in overall length. Long Controllers use a 21V fieldbus voltage and are recommended for systems larger than 7km. -
Page 51: Digital Input Modules
RTD1 Module (IS) (Fieldbus Powered) 121889 IECEx (c/w External LED) RTD PT100 Temperature Sensor iMAC RTD1 Module (IS) (Fieldbus Powered) 121890 IECEx RTD PT100 Temperature Sensor IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 50 of 53... -
Page 52: Output Modules
IECEx (IS) (Fieldbus Powered) iMAC LIM Modules (7 x Selectable LED Profiles) 178890 IECEx (IS) (Fieldbus Powered) *Requires specific application (SLP) software for operation IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 51 of 53... -
Page 53: Serial Interface Modules
LPU2 Module 118911 Lightning Protection for a 2-Wire Module (e.g. DI4) iMAC LPU3 Module 142326 Lightning Protection for a 3-Wire Module (e.g. IIM) IMAC2B009 V2 Uncontrolled Copy - Refer to Ampcontrol Website for Latest Version Page 52 of 53... -
Page 54: Eol And Meol Modules
V4 – 10/18 EOL and MEOL Modules iMAC End-of-Line modules form a key part of the safety feature of the iMAC System. In order for the iMAC2 Controller Control Relay (CR) to be energised, the Controller must be successfully communicating with the End-of-Line module.
