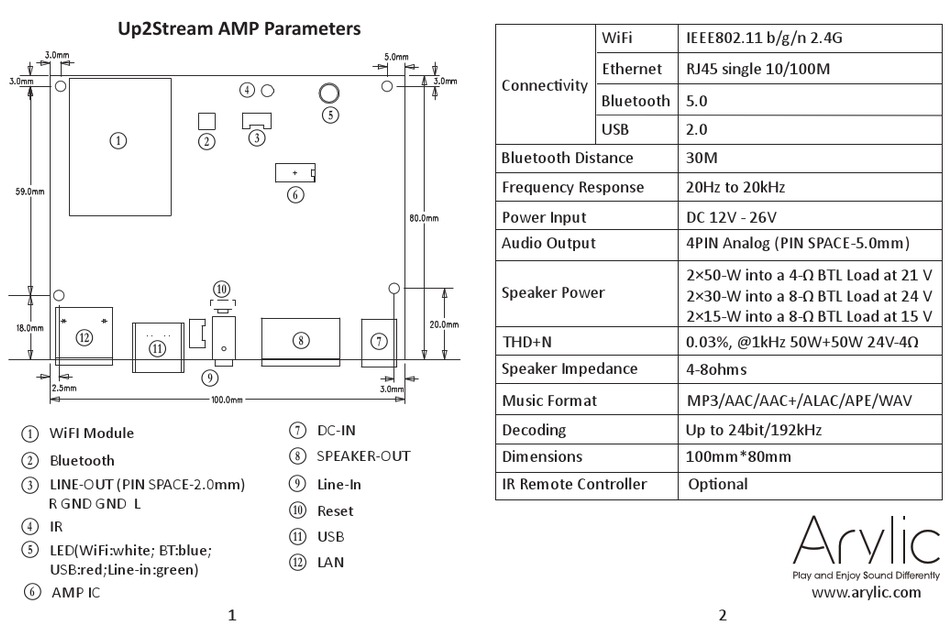

Arylic Up2Stream AMP Quick Start Manual

Up2Stream AMP Parameters
B
C
M
L
WiFI Module
B
Bluetooth
C
LINE-OUT (PIN SPACE-2.0mm)
D
R GND GND L
IR
E
LED(WiFi:white; BT:blue;
F
USB:red;Line-in:green)
AMP IC
G
E
F
D
G
K
I H
J
DC-IN
H
SPEAKER-OUT
I
Line-In
J
Reset
K
USB
L
LAN
M
1
WiFi
Ethernet
Connec�vity
Bluetooth
USB
Bluetooth Distance
Frequency Response
Power Input
Audio Output
Speaker Power
THD+N
Speaker Impedance
Music Format
Decoding
Dimensions
IR Remote Controller
IEEE802.11 b/g/n 2.4G
RJ45 single 10/100M
5.0
2.0
30M
20Hz to 20kHz
DC 12V - 26V
4PIN Analog (PIN SPACE-5.0mm)
2×50-W into a 4-Ω BTL Load at 21 V
2×30-W into a 8-Ω BTL Load at 24 V
2×15-W into a 8-Ω BTL Load at 15 V
0.03%, @1kHz 50W+50W 24V-4Ω
4-8ohms
MP3/AAC/AAC+/ALAC/APE/WAV
Up to 24bit/192kHz
100mm*80mm
Op�onal
