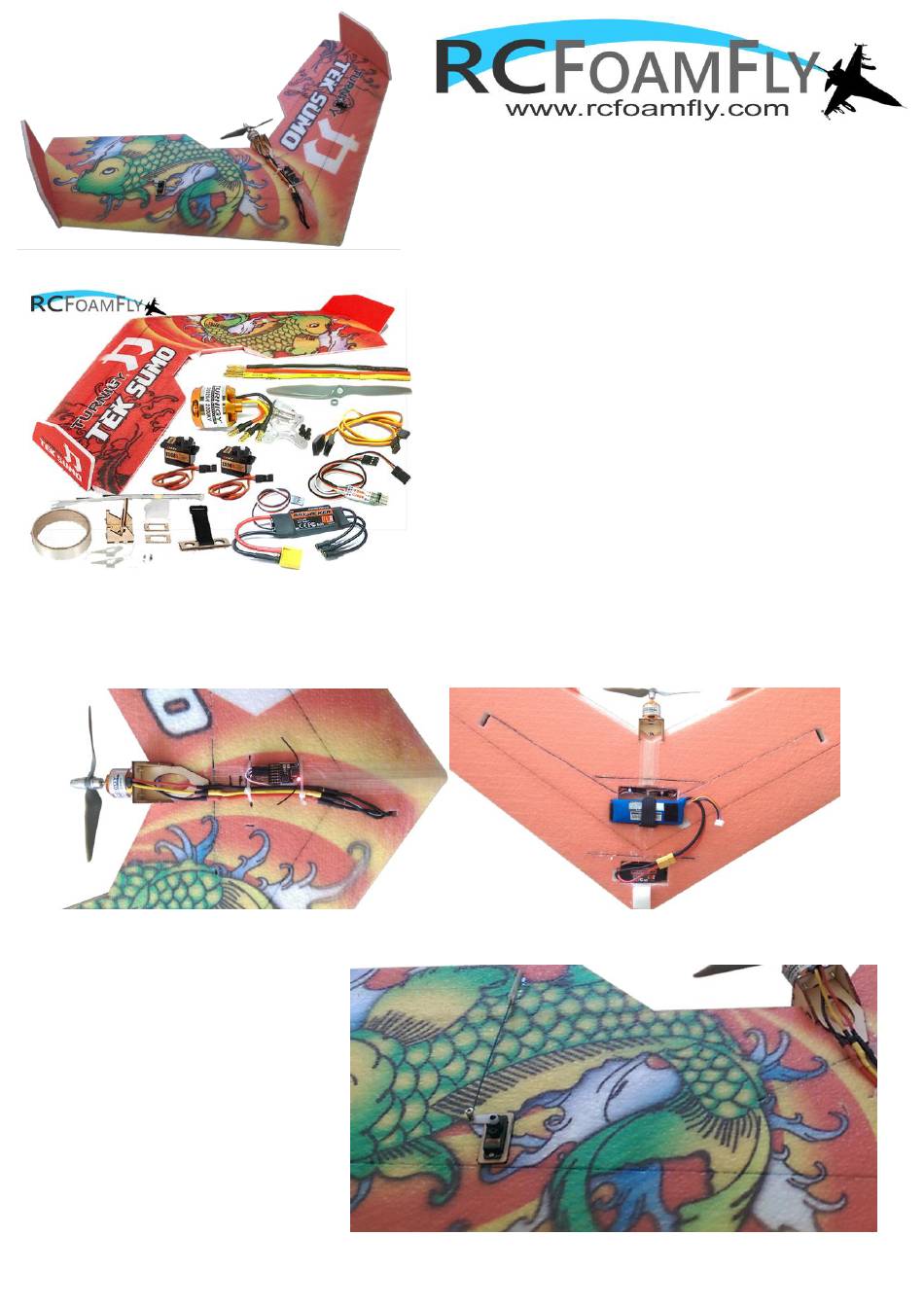

RCFoamFly TekSumo Fitting Instructions

General Setup
On top of the wing you should mount your receiver and run the extensions connecting the motor and ESC. On the
bottom in the compartment to the middle you can mount the Battery. In the compartment at the front you can
mount the ESC unit which will sit flush with the bottom of the wing..
Servos
With this high spec machine it is
important to have quality servos and
this is why we supply these kits with
Emax all metal gear servos. The servos
will be a tight fit in the servo mount
holes. First glue the wooden servo
mounts to the top of the wing and then
feed the servo lead through the hole
first and gently push the servo into the
hole. Screw the servos in place.
TekSumo Fit-out Instructions
Your TekSumo "Fully Loaded" kit from RCFoamFly comes complete
with all the fit-out components you will need to complete this
wing with the exception of a receiver, battery and charger.
For best performance please see the building notes below which
show the optimal layout for components. Building and fitting out
your wing in accordance with these guidelines will ensure you
have a centre of balance in the vicinity of the optimal location as
well as wiring and component placement which will avoid damage
on landing as well as giving good airflow and aerodynamics
around these various components.
We recommend that you use a programmable transmitter to
allow you to reverse servo direction if needed as well as to set
maximum travel of servo arms and dual rates.
