Unpack & Set Up
The UP1000 Kit from Alpha Processor, Inc. is a single processor system.
A single motherboard supports one Alpha Slot B Module.
Remove the components carefully from their cartons and anti-static packaging bags.
Always take appropriate electrostatic discharge safety measures when handling
boards or modules.
Contents of the UP1000 Kit are:
Carton 1
Carton 2
Hardware
Hardware
• UP1000 Standard ATX Motherboard
• Alpha Slot B Module
• Alpha Slot B Module Support Fixture
• Installation Guide
(Goalpost)
• Product Warranty Card
• Goalpost Cover w/captive screw
• Installation Guide
• Product Warranty Card
• Read Me First Sheet
• UP1000 User Manual
Software
• UP1000 Installation Diskette P/N 62-0019-1A
Components
Prepare for the UP1000 installation with the following components:
Level 1 – Required to Test Motherboard with Slot B Module
Power Supply(s)
Memory Modules
Video Card
Monitor
Keyboard
Mouse
Assorted Peripheral Cables
Floppy Disk Drive
+ Level 2 – Required to Load Operating System
CD Drive
Setup Diskette
A
Fan Power Connectors
UP1000
Fan Power for Alpha Slot B Module
*only 2 connectors on 90-0001-3A board
Quick Start
Installation Guide
Bus Connectors
PCI 32 Bits (4 Slots)
Alpha Slot B Module
Single Module (1 Slot)
I/O Connections
Flash ROM Safety Block U31
Flash ROM Safety Block U32
Optional System Fan
System LEDs
51-0035-0B
C
Mounting Requirements
Chassis Mounting Holes
Identify the
nine
ATX mounting holes.
Check for the
four
goalpost mounting holes.
For chassis or enclosures without this
mounting hole pattern, obtain a drill
template from our website,
http://www.alpha-processor.com/products/downloads/customer_support/UP1000/UP1000_drill_template.pdf
!
Slot B goalpost must be securely fastened
to chassis backplate.
Hard Disk
Speaker
Operating System CD
The chassis shown is an Axxion Model DL-17.

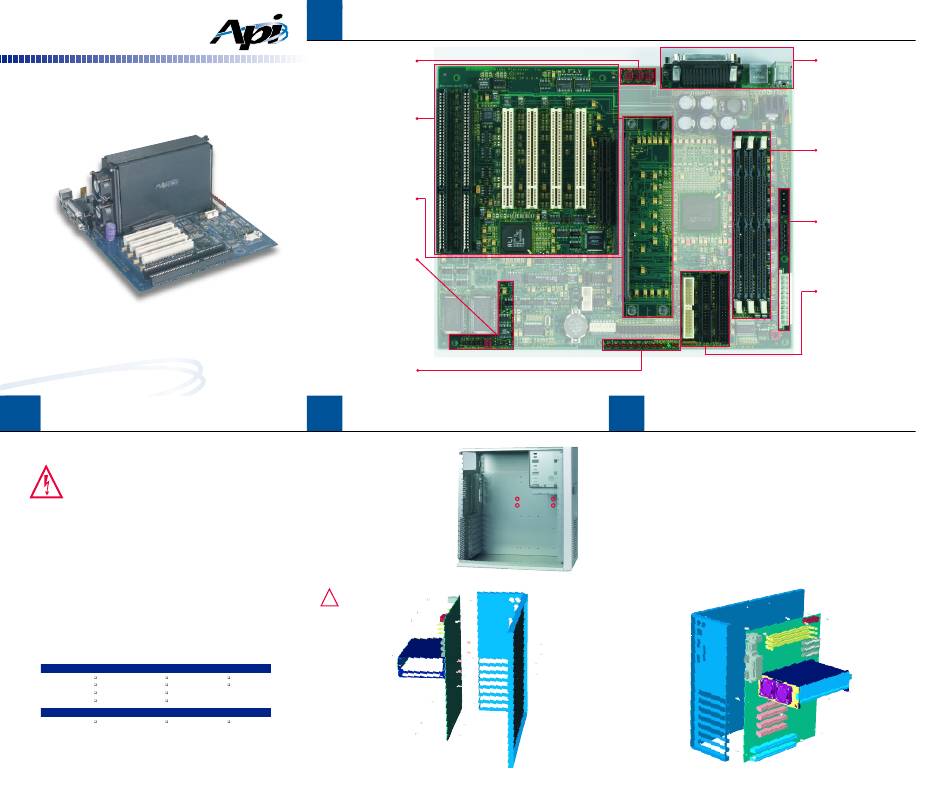

Tour of UP1000 Motherboard
(Section F)
(Section G)
AGP (1 Slot)
ISA (2 Slots)
(Section H)
(Section F)
Speaker
Keyboard Lock
LED
Power Switch
Reset Button
standard
Slot B
D
Attach to Chassis
Motherboard & Goalpost to Chassis Assembly
The goalpost fixture holds one Alpha Slot B Module securely in place on the UP1000 motherboard.
Requirements for attaching motherboard and goalpost fixture to the chassis are:
• Fastening Hardware – Four Alpha Slot B hex male/female spacer screws and spacer washers.
– Four M4x6mm long Phillips pan head screws.
– Assorted standoffs, screws, and miscellaneous hardware supplied by chassis vendor.
• Tools – Phillips head screwdriver, Flat head screwdriver, torque wrench, nut driver (1/4").
• Proper chassis mounting holes drilled for goalpost captive nuts.
Use this mounting technique:
1. Align the goalpost fixture holes with the corresponding motherboard clearance holes.
2. Affix goalpost to motherboard from the backside using four hex male/female spacer screws and spacer washers
and torque to 8 inch/lbs.
3. Secure this assembly to the chassis with the standoffs and screws supplied by the chassis vendor.
4. Secure M4x6mm screws through chassis to female thread of hex male/female spacer screws (four places)
and spacer washers.
System Support Connectors
(Section I)
Keyboard & Mouse (stacked)
Dual USB (stacked)
Parallel
Serial COM1
Serial COM2
Memory Module Slots
(Section E)
DIMMs (3 Slots)
Minimum System: 64 Mbytes
Maximum System: 768 Mbytes
System Power
(Section F)
Alpha Slot B Power
AUX ATX Power
ATX Power
Disk Ports
(Section G)
IDE (Primary Slot)
IDE (Secondary Slot)
Diskette
