Illumitex Corona CX Installation Instructions

INSTALLATION INSTRUCTIONS
Corona CX
IMPORTANT: Read all instructions before performing any work. Be sure all
power is off prior to installing luminaire.
WARNING: Luminaire must be grounded in accordance with appropriate
codes. Failure to do so may result in serious injury.

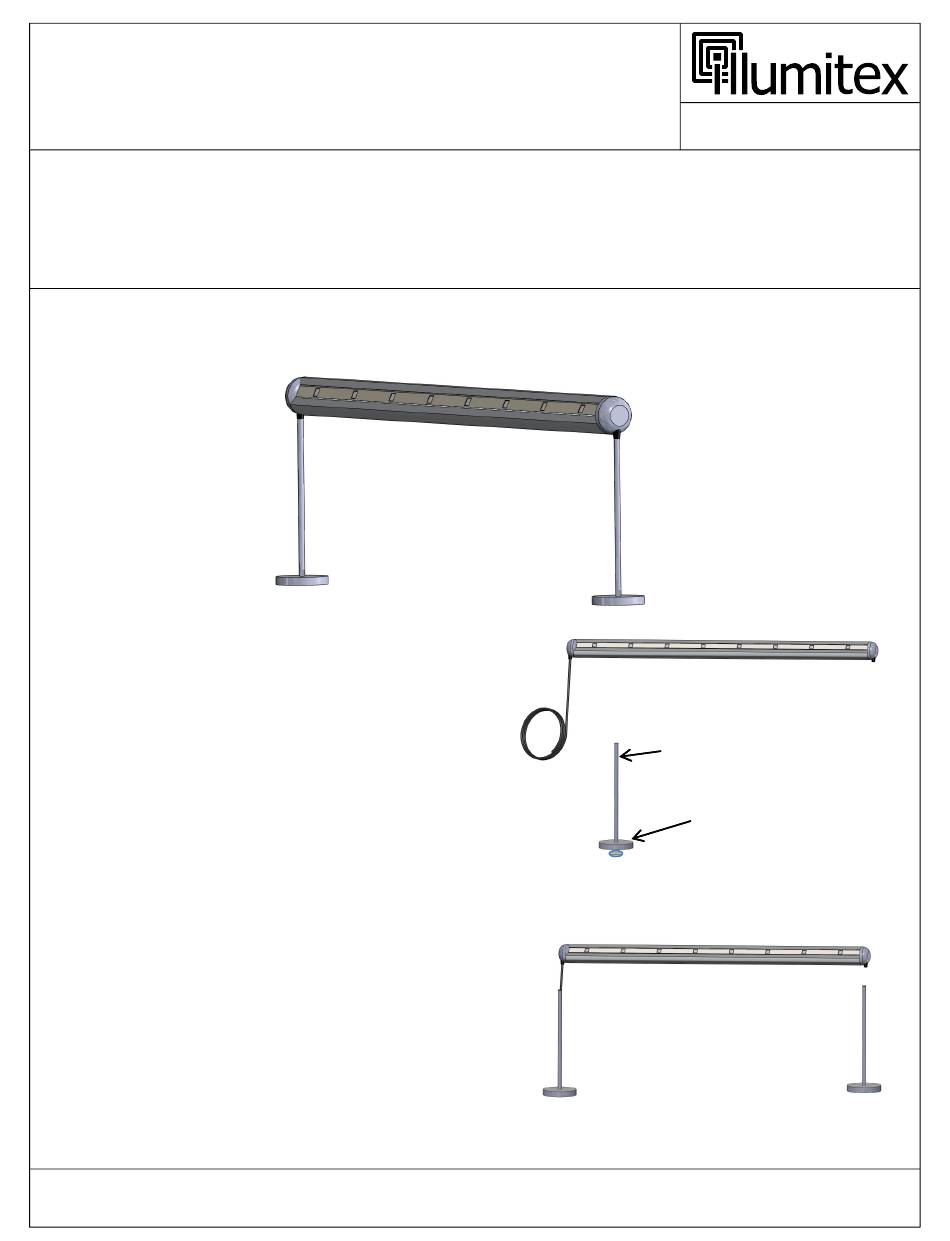

Corona Linear Flood Mounting Installation Instructions

Linear Flood Mount

Linear Flood Mount
For installation the Corona using a Linear Flood Mount
system the following instructions should be followed by a
qualified Electrician:
1. *Remove Corona light bar assembly from carton with
cable attached.
2. *Assembly the two stem mounting stand by attaching ½"
rigid conduit to base using hardware supplied.
3. *Then insert cable through conduit and thread conduit
into end cap holes. Use supplied Teflon tape.
*Instructions 1-3 are not relevant for the 6" pipe that is
included with the fixture. These instructions pertain only to
the optional 12" and 18" stanchions (available as
accessories).
© 2013 Illumitex Inc. All rights reserved. The information in this document is subject to change without prior notice.
Illumitex Inc. | 5307 Industrial Oaks Blvd., Ste. 100 | Austin, TX 78735 USA | +1 512 279 5020 | www.illumitex.com
5/14/2013
½" Rigid Conduit Stem
Base
