Installation Time: <1 Hour
Tools Required:
Box Cutter/Knife
Pliers (optional)
Installation Instructions:
1. Carefully open the package using a box cutter or knife (Figure A) and ensure the product is included and
undamaged.
2. Lay the netting out flat and find the Barricade label (Figure B).

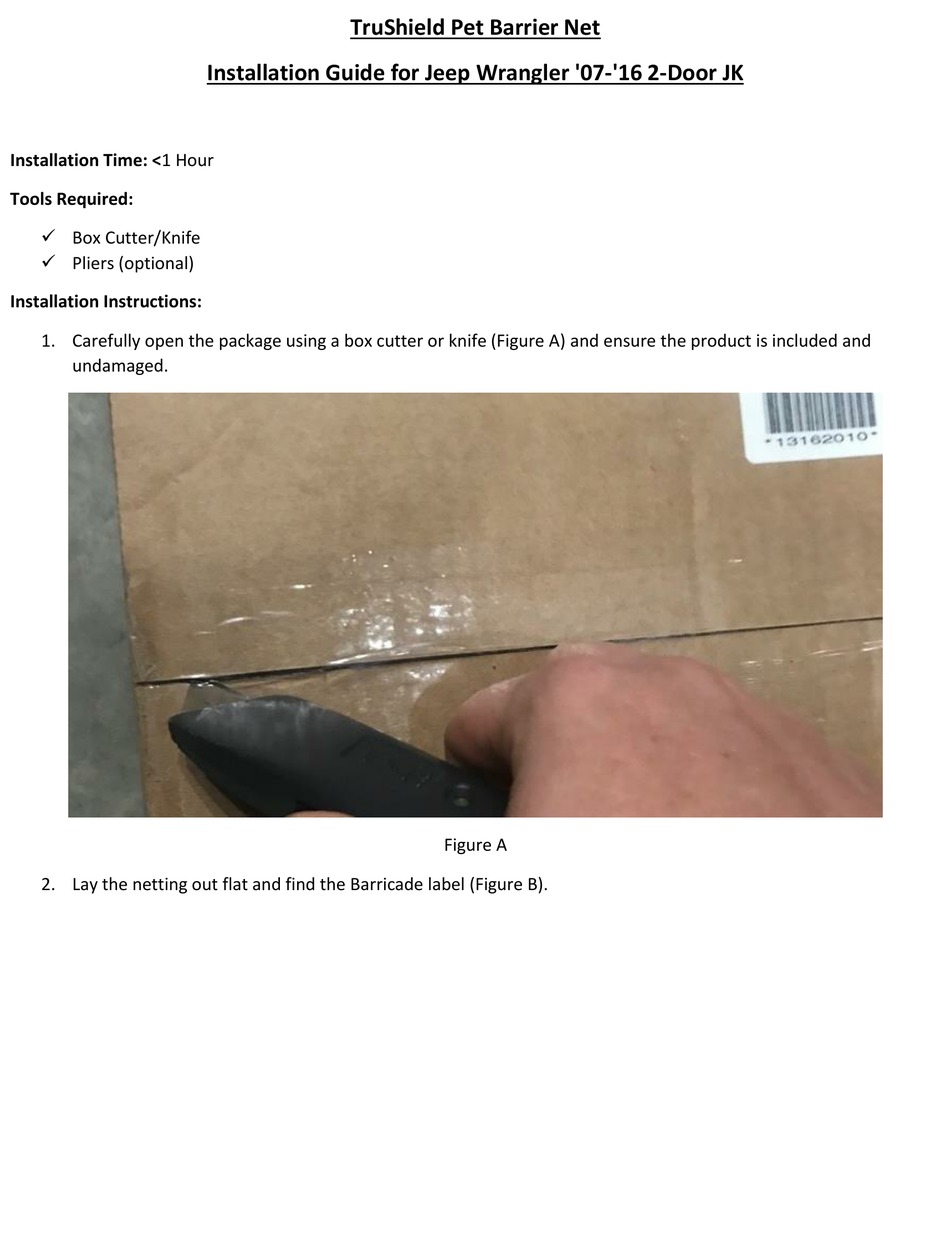

TruShield Pet Barrier Net
Installation Guide for Jeep Wrangler '07-'16 2-Door JK
Figure A
Advertisement
Related Manuals for Red rock TruShield
Summary of Contents for Red rock TruShield
- Page 1 TruShield Pet Barrier Net Installation Guide for Jeep Wrangler '07-'16 2-Door JK Installation Time: <1 Hour Tools Required: Box Cutter/Knife Pliers (optional) Installation Instructions: 1. Carefully open the package using a box cutter or knife (Figure A) and ensure the product is included and undamaged.
- Page 2 Figure B 3. Pull the front seats all the way forward (Figure C).
- Page 3 Figure C 4. If installing on a hardtop, it may be easier to install if the two front hardtop panels are removed (Figure D).
- Page 4 Figure D 5. With the Barricade logo facing the rear of the vehicle and in the top passenger-side corner, run the top right strap over the sound bar (front to rear) (Figure E). Figure E 6. Retrieve the strap on the other side of the sound bar and pull down (Figure F).
- Page 5 Figure F 7. Run the retrieved strap through the buckle at the bottom of the same strap (Figure G). Figure G 8. Follow steps 5-7 on the left side, as well.
- Page 6 9. On the bottom of the netting, find the strap with a metal hook and secure it around the outer seat bracket on both the driver and passenger seats (Figure H). Figure H 10. Tighten all straps (Figure I). Optional: Use pliers for additional leverage in tightening the netting straps.
- Page 7 Figure I...
- Page 8 Before After Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 12/20/2017...
