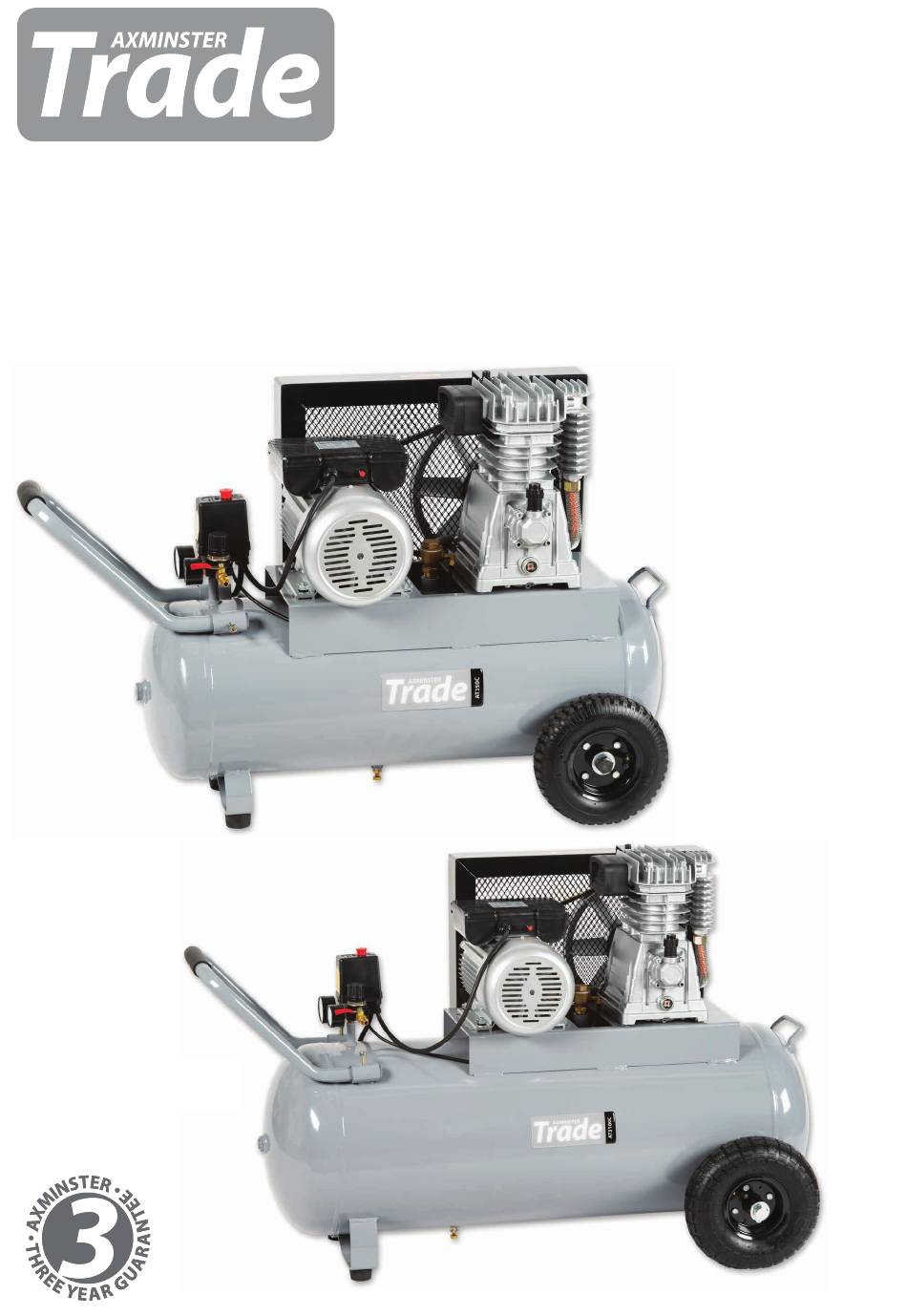

- Page 1 Code 106376 Code 106377 Original Instructions AT350C, AT3100C 3HP Air Compressor Code: 106376 Model: AT350C Code: 106377 Model: AT3100C AT&M: 06/02/2020 BOOK REF: APT008104 BOOK VERSION: 1...
-
Page 2: Eu Declaration Of Conformity
Type Air Compressor and conforms to the machinery example for which the Model AT350C, AT3100C EC Type-Examination Certificate No SH10010317-V1 has been issued by Intertek Testing Services Shanghai at: Uno Resourcing Inc. No.27, North Huan Road, C.E.P.Z Wuchi, Taichung 435, Signed Taiwan. -
Page 3: What's Included
What’s Included Model Number AT350C (AH-350) Model Number AT3100C (AH30-100) Quantity Item Part Trade Air Compressor Wheels Handle Large Stepped Bolts & Flange Nuts Manual... -
Page 4: General Instructions For 230V Machines
General Instructions for 230V Machines The following will enable you to observe good working • Carry out a final check e.g. check the cutting tool practices, keep yourself and fellow workers safe and maintain is securely tightened in the machine and the correct your tools and equipment in good working order. -
Page 5: Specification
Specification AT350C Trade Air compressor AT3100C Trade Air compressor Code 106376 Code 106377 Model AT3050C Model AT30100C Rating Trade Rating Trade Power 2.2 kW Power 2.2 kW Free Air Delivered @1 bar - 280 l/m (9.88CFM), @3 bar - 210 Free Air Delivered @1 bar - 280 l/m (9.88CFM), @3 bar - 210... - Page 6 Assembly Fitting the Rear Wheels Fitting Handle...
- Page 7 Assembly Fitting the Quick Release Coupling Filling the Crankcase with Oil Remove the 1/4" BSP Male airline fitting, see fig 01. Wrap some PTFE tape (A) around the thread on the 1/4” BSP male ALWAYS USE COMPRESSOR OIL! coupling (B) and screw it into the pressure regulator outlet, lightly tighten using a spanner.
-
Page 8: Illustration & Parts Description
Illustration & Parts Description Regulator preset lock (G) ON/OFF control switch (A), Regulator control knob (B), Pressure relief valve 1/4” BSP male coupling (C), Outlet Valve Tap (D), Tank pressure gauge (E), and Outlet pressure gauge (F) REST ‘REST’ button, press this button if compressor is not functioning properly Oil Level indicator (I) Crankcase oil filler plug (H) Oil drain plug (J) - Page 9 Illustration & Parts Description Air inlet filter Drive belt guard Motor REST control Crankcase Handle ON/OFF Switch Pressure regulator Oil filler plug Handle Open Closed Motor Outlet valve tap Water drain valve Pressure switch unit Pressure gauges Pressure relief valve Tank Rubber foot Wheel...
- Page 10 Operating Instructions Turning on the Compressor NOTE: It is advisable to fully drain the air from the tank if CONNECT THE COMPRESSOR the compressor is left unused for a period, this will prevent TO THE MAINS SUPPLY! the build-up of water in the tank. Connect the compressor to the mains supply and switch on by DO NOT use dirty or non detergent oil.
- Page 11 Operating Instructions Output Air Pressure Regulator The outlet air pressure can be regulated by rotating the regulator knob clockwise to increase the pressure and anti-clockwise to reduce it. DO NOT leave the regulator set at maximum setting unnecessarily; reduce the setting by about two turns after finishing and then re-set to the required pressure when starting work again.
-
Page 12: Maintenance
Maintenance Monthly: DISCONNECT THE COMPRESSOR FROM THE MAINS SUPPLY! Remove the air inlet filter outer casing and clean the filter element, see fig 05-06-07-08. Daily: • Wash in soapy water and leave to dry. Drain water from tank, see fig 01. •... -
Page 13: Troubleshooting
Maintenance Six Monthly: Yearly: Check the condition of the oil for the following. If you notice the (1) Replace the air filter element. oil is black insead of a golden colour, a build up of foam inside the crankcase or water bubbles showing inside the sight glass (2) Check and clean the air intake and delivery valves. - Page 14 Exploded Diagrams/Lists Models: AH-3050, AH30100 Air Compressors...
- Page 15 Exploded Diagrams/Lists Models: AH-3050, AH30100 Air Compressors DESCRIPTION Woodruff Key Bolt Bearing Spring Washer Gasket, Bearing Seat Cylinder Head Oil Seal Air Filter Assy Bearing Seat Copper Washer Spring Washer In-Six Angle Bolt In-six Angle Bolt Exht. Elbow Gasket Pulley Spring Washer Pulley Washer In-Six Angle Bolt...
- Page 16 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
