intrepid neoECU AVB/TSN User Manual

Endpoint simulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

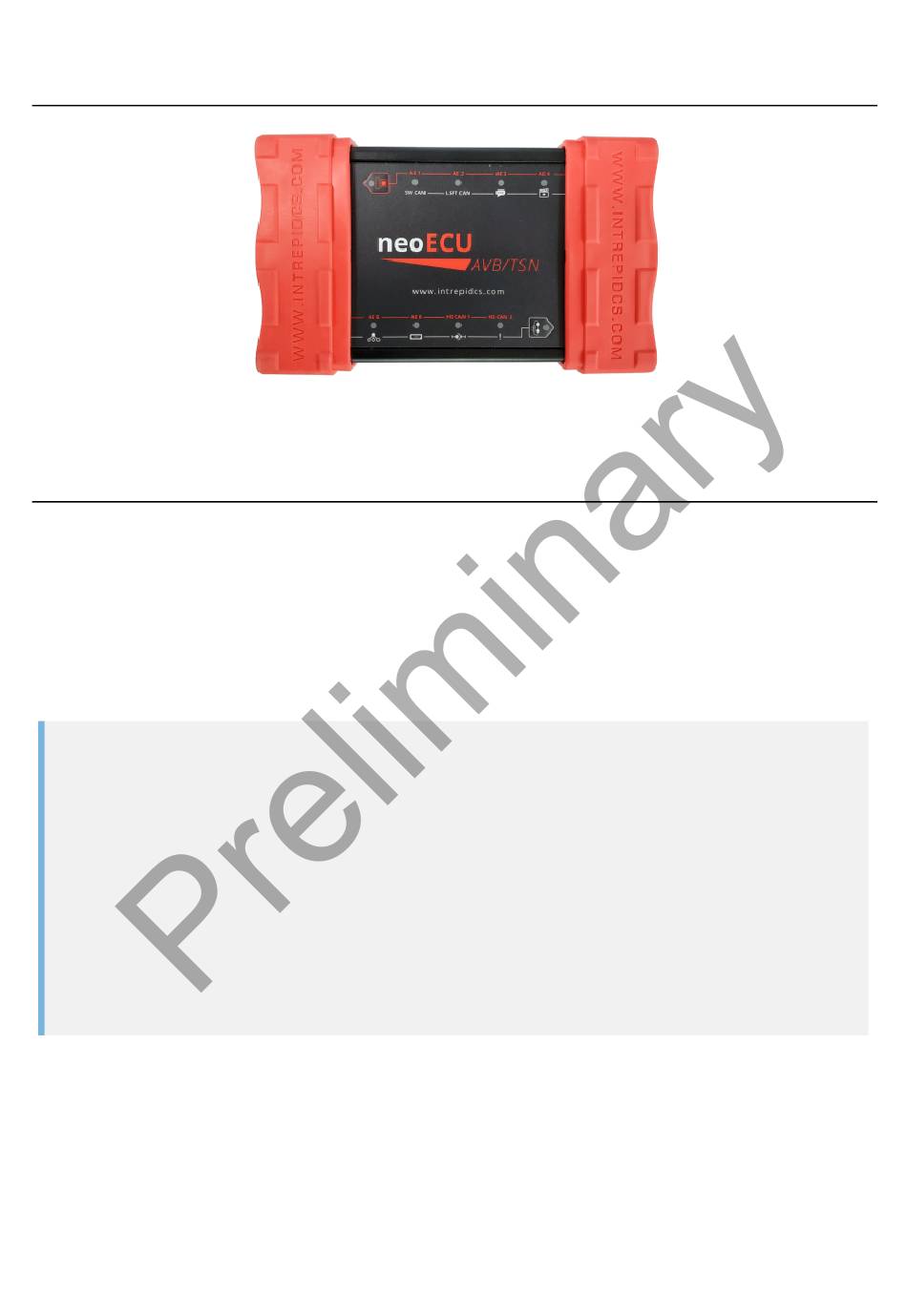

neoECU AVB/TSN User's Guide
An AVB/TSN Audio/Video Endpoint Simulator with
integrated AVB/TSN Switch
1. Introduction and Overview
2. A Tour of neoECU AVB/TSN Hardware
3. Software Setup
4. The neoVI Explorer Configuration Utility
4.1 System Settings and Firmware Updates
4.2 General Settings
4.3 CAN Network Settings
4.5 The Text API
4.6 Performance Tests
4.6 Ethernet Switch Configuration
4.7-AVB Endpoint Configuration
5. 88Q5050 Switch Use and Configuration
12/17/2019
1 / 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the neoECU AVB/TSN and is the answer not in the manual?

Questions and answers

Summary of Contents for intrepid neoECU AVB/TSN

  • Page 1 AVB/TSN User's Guide An AVB/TSN Audio/Video Endpoint Simulator with integrated AVB/TSN Switch 1. Introduction and Overview 2. A Tour of neoECU AVB/TSN Hardware 3. Software Setup 4. The neoVI Explorer Configuration Utility 4.1 System Settings and Firmware Updates 4.2 General Settings 4.3 CAN Network Settings...

  • Page 2: Safety Notices

    Disclaimers 1. Every attempt is made to keep this documentation accurate and current. Intrepid Control Systems reserves the right to update this documentation without notice and assumes no liability from its use.

  • Page 3: Introduction And Overview

    1. Introduction and Overview 1.1 Introduction Thank you for purchasing a neoECU AVB/TSN from Intrepid Control Systems (ICS). Here are some of the noteworthy features of your new device. Product Features Configurable as Talker or Listener for Audio and Video Streams...

  • Page 4: Operational Overview

    1.2 Operational Overview The neoECU AVN/TSN can be configured as a talker or listener. 1.2.1 Talker Configuration As a talker, a media stream can be generated from one of 3 sources: 1. Video stored on an internal micro SDCard (with or without audio) 2.

  • Page 5: Package Contents

    Your neoECU AVN/TSN package includes both hardware and software. Upon receipt, please remove, unwrap and inspect all its contents. If anything is missing or damaged, please contact Intrepid for prompt assistance, using the information at the end of this guide.
  • Page 6 2. A Tour of neoECU AVB/TSN Hardware Before learning how to configure and set up the device, let’s examine the device from all sides to understand all of its interfaces and status indicators. 2.1 Label and Status Indicators 1. Red Button (Activates Red Labels)

  • Page 7: Connector Interfaces

    2.2 Connector Interfaces 2.2.1 Ethernet / Audio Endpanel 2.2.1.1 DC In This device is shipped with a 12V DC power supply which mates with this connector. DC supplys with a compatible connector can be used provided they supply a voltage in the range 9-40 Volts with a current of 1A or greater.
  • Page 8 2.2.1.3 Ethernet Ports Device Port(s) AE1 / The Ethernet interface of the AVB Endpoint is selectable between AE1 Endpoint (100BASE-T1) and P1 (1000BASE-T) 88Q5050 AE2-6 5x 88Q5050 Switch Ports (100BASE-T1) Switch 88Q5050 1x 88Q5050 Switch Port (1000BASE-T) Switch The following diagram helps visualize the different modes of operation that are configurable in the neoVI Explorer configuration utility.
  • Page 9 The firmware and media storage resides on micro SDCards in these slots. The data on Micro this media is not intended to be accessed or updated with anything other than Intrepid SDCard software. Not using Intrepid software with this media may render the device inoperable Slots and void the warranty of the device.
  • Page 10 2.2.3 Connector Information 2.2.3.1 DB26 (Power/HSCAN) Signal HSCAN 1 L HSCAN 2 L HSCAN 1 H HSCAN 2 H VBATT 2.2.3.2 100BASE-T1 Connections (AE1-6) Ports 100BASE-T1_P 100BASE-T1_N AE2/AE4/AE6 Pin 8 Pin 7 AE1/AE3/AE5 Pin 4 Pin 3 12/17/2019 10 / 32...
  • Page 11 2.2.4 AVB Endpoint Status Screens When the micro HDMI port is connected to a display, a video overlay displaying endpoint status information can be enabled by double pressing the white switch membrane on the top label of the device. Note that AVB/TSN is a set of Layer 2 protocols, therefore an IP Address is not necessary, and may not be present.

  • Page 12: Software Setup

    3. Software Setup While Vehicle Spy software is not required to use your device, Intrepid devices often require specific drivers to function properly. Your device should have arrived with the software necessary to use it. If the media containing this software is no longer available, the software can be found at the following link.
  • Page 13 Starting and Using neoVI Explorer The neoVI Explorer utility allows you to connect to, manage and configure all of your Intrepid Control Systems hardware. It is supplied both as an integrated feature of Vehicle Spy, and as a standalone program. This section will describe general features and the basics of using neoVI Explorer, so you will understand the utility when we get into settings specific to your device.
  • Page 14 Starting neoVI Explorer as a Standalone Program If you want to work with your device without opening Vehicle Spy, you can launch neoVI Explorer directly. Open the Start Menu, navigate to the IntrepidCS folder, then under the Vehicle Spy 3 subfolder, select neoVI Explorer (Figure below).
  • Page 15 You should see your device listed here, along with its serial number. If you don’t see the device to be connected, but do see other Intrepid devices, be sure to scroll down to look for it. If it is still not visible, this means its drivers have not been installed correctly, it is not powered properly, or there is a problem with the USB connection.
  • Page 16 Writing and Reloading Settings To avoid potential problems, neoVI Explorer will not save any changes to device parameters until you instruct it to do so. This is done by pressing the Write Settings button, which will update the parameters within the firmware in your device.

  • Page 17: System Settings

    If this box is not checked, firmware must be updated manually. (See below for details.) Network Adapter Server: This is a feature that is used with Intrepid products having Active Taps for Automotive Ethernet. It may not apply to your device.
  • Page 18 Automatic and Manual Firmware Updates Firmware is essentially software that runs hardware and is required to enable the many capabilities of your device. New versions of firmware are created regularly by Intrepid’s engineers to implement new features and correct problems that have been identified.
  • Page 19 Explorer to confirm that the update has finished. If you receive any error messages or experience any other problems updating your device’s firmware, please contact Intrepid for assistance. Please take heed of the warning on the firmware update dialog box: leave the device connected and powered on for the entire firmware update process to avoid possible problems with the device.
  • Page 20 This is an informational area that provides technical data on the devices’s hardware and internal setup. You will generally only need this if requested by Intrepid in order to facilitate support or troubleshooting. You can use the Copy To Clipboard button to copy all of the information to the Windows Clipboard, so you can then paste it into an email or file.
  • Page 21 4.3 CAN Network Settings 4.3.1 CAN Networks This area of neoVI Explorer is used to enable, disable and configure the 2 High Speed CAN channels. Each channel has an entry under the “CAN” group (which cannot be clicked itself). The current status of each channel is shown next to its name;...
  • Page 22 Disable: Channel is disabled. Listen Only: This channel only receives messages, with no transmissions, and also no error frames generated nor acknowledgments sent. Bit Rate Calculator Press this button to launch the Intrepid Bit Timing Calculator. 12/17/2019 22 / 32...
  • Page 23 4.3.2 ISO15765-2 This page contains one setting: IFS Shift Register (shown below). Changing this from its default value of 0 causes time to be added to the Inner Frame Spacing of USDT frames transmitted by CoreMini scripts running in the FIRE 2. The number entered is multiplied by 6.4 µs to determine the time offset. The allowed range is -1563 to 1563.

  • Page 24: Performance Tests

    4.5 Text API These parameters control the operation of the text API that can be used to operate the neoVI FIRE 2 using third party software. Please contact Intrepid if you require assistance with using the API. neoVI Explorer Text API Parameters.
  • Page 25 4.7 neoECU AVB/TSN Endpoint Configuration The Endpoint can be configured in one of 3 modes from the dropdown menu displayed below. 4.7.1 Video Talker Configuration: Source of an AVTP Video Stream Stream Format: The AVTP video formats IEC61883-4 and CVF are supported and can be chosen from this drop down menu.
  • Page 26 4.7.2 Video Listener Configuration: Sink of an AVTP Audio Stream AVTP Stream Format: Select between IEC61883-4 and Compressed Video Format (CVF) Listener Video Mode: Select between Audio/Video or Video Only Listener Audio Output: Select between audio playing on Audio Jack #1 or over HDMI. Stream Connect Mode AVDECC: Endpoint will wait for an AVDECC command to connect with a Talker Endpoint.
  • Page 27 4.7.3 Audio Talker/Listener Configuration: Simultaneous Source and Sink AVTP Audio Streams Note: An endpoint is limited to a maximum of 9 simultaneous streams 4.7.3.1 Audio Talker Stream Stream Format: The AVTP video formats IEC61883-6 and AAF are supported and can be chosen from this drop down menu.
  • Page 28 4.7.3.2 Audio Listener Stream Stream Format: The AVTP video formats IEC61883-6 and AAF are supported and can be chosen from this drop down menu. Sampling Frequency: of the audio stream Channel: Number of audio channels in the stream Samples per frame: Number of audio samples per AVTP Frame (AAF format only) Bit Depth: of the audio stream Audio Output: Note that only Stream 0 is decoded for listening and can be streamed out of OUT1 or over HDMI.
  • Page 29 4.7.4 gPTP Configuration gPTP can be disabled, or set to the standard or Automotive Profile (AVNU) 4.7.4.1 Profile Independent Settings neighborPropDelayThresh (nanoseconds) Device will be identified as non-AS Capable if pDelay exceeds this value Default 800, but increased to 100000 to insure latency of active tap does not impact ability to connect stream.
  • Page 30 4.7.4.2 Standard Profile Settings gmCapable: If enabled, the endpoint will participate in the BCMA and attempt to serve as Grand Master Note: The following 5 values define the credentials of the Grand Master as specified in gPTP priority1: clockCLass: clockAccuracy: offsetScaledLogVariance: priority2: 4.7.4.3 Automotive Profile Settings (Avnu)

  • Page 31: Media File Management

    4.7.5 nEAT general config Endpoint Connection: Choose which Ethernet port is used to send and receive AVB Streams. AE1: 100BASE-T1 Automotive Ethernet P1: Standard Ethernet (100/1000BASE-T) Ethernet Switch: The endpoint is connected directly to a port of the internal 88Q5050 Switch. MAC Spoofing: The factory assigned MAC address may be overridden when this feature is enabled.
  • Page 32 4.7.7 Linux Here the versions of the hardware and Embedded Linux firmware can be seen. The Linux firmware of can also be updated here for hardware versions rev3 and later. If you have hardware earlier than rev3, please contact customer support if you think a firmware update is needed. 12/17/2019 32 / 32...
