Litheli U1CS21113 Operator's Manual

40v battery powered chain saw
Hide thumbs

Advertisement

Table of Contents

Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Operator's Manual
Keep this manual for the safety warnings and precautions, assembly,
40V BATTERY POWERED
Visit our website at: http://www.litheli.com
CHAIN SAW
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please contact us: WWW.LITHELI.COM.
©
Copyright 2019 Litheli. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Litheli.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
U1CS21113

Advertisement

Table of Contents
loading

Related Manuals for Litheli U1CS21113

Summary of Contents for Litheli U1CS21113

  • Page 1 Failure to do so can result in serious injury. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Litheli. SAVE THIS MANUAL. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein.

  • Page 2: Table Of Contents

    Power tools create sparks which may ignite the dust or fumes. Electrical Safety Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Page 2 WWW.LITHELI.COM U1CS21113...

  • Page 3: Safety

    4. Under abusive conditions, liquid mamay be fire. ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. Page 3 WWW.LITHELI.COM U1CS21113...
  • Page 4 fit the guide bar cover. Proper controlled by the operator, if proper handling of the chain saw will reduce the precautions are taken. Do not let go of the likelihood of accidental contact with the moving chain saw. saw chain. Page 4 WWW.LITHELI.COM U1CS21113...
  • Page 5 15. Maintain labels and nameplates on the tool. factors which cannot be built into this product, These carry important safety information. but must be supplied by the operator. If unreadable or missing, contact Litheli for a replacement. Lithium Battery Safety Warnings LITHIUM BATTERIES STORE...

  • Page 6: Specifications

    Charger Output Rating 36VDC / 3.3 A Battery Rating 40VDC / 2.5 Ah / 90 Wh Battery Type 40V Litheli Li-Ion Chain Speed 11m/s Oregon 14 in Saw Chain Note: This electric chainsaw is for cutting small logs and for lighter weight trimming jobs.
  • Page 7 Do not expose the battery to sunlight for a long time and do not place it on radiators (max. 45 ° C). Dispose of the batteries at a collection point for old batteries, from where they are taken to environmentally friendly recycling. WWW.LITHELI.COM Page 7 U1CS21113...

  • Page 8: Setup

    Parts List and Diagram on page 22. Functions Hand Guard / Chain Brake Lever Front Handle Rear Handle Lock Knob Drive Cover Chain Tension Knob Oil Tank Cap Saw Chain Chain Guide Bar Spiked Bumper Chain Guide Bar Sheath Page 8 WWW.LITHELI.COM U1CS21113...
  • Page 9 Battery pack fully with battery pack charged Red LED lights up with Battery pack charging battery pack Red and green LEDs Battery pack defect flashing Red and green LEDs Battery pack too cold continuously lit or warm WWW.LITHELI.COM U1CS21113 Page 9...

  • Page 10: Operation

    ANSI B175.1-1991 when tested on a occurs, this safety feature is activated when representative sample of chainsaws. the operator’s hand strikes the Hand Guard / Chain Brake Lever and pushes it forward, stopping the Chain. Page 10 WWW.LITHELI.COM U1CS21113...

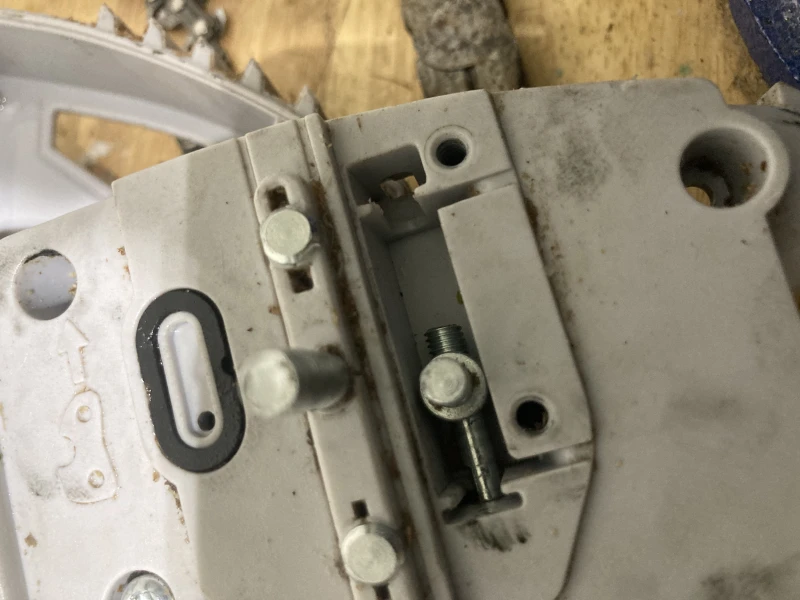

  • Page 11 Tension the Saw Chain following the steps in the Saw Chain are facing away from the Adjusting Saw Chain Tension on page 11. Chainsaw along the top edge of the Guide Bar. Fit the Chain links into the groove around the Guide Bar. WWW.LITHELI.COM Page 11 U1CS21113...
  • Page 12 Tension the Saw Chain following the steps in replaced if it shows signs of wear or is Adjusting Saw Chain Tension above. damaged. If needed, have the Sprocket replaced and the bearings greased by a qualified technician. WWW.LITHELI.COM Page 12 U1CS21113...

  • Page 13: Important Safety Information

    To install: Slide Battery Pack into slot on back of Chainsaw until it clicks into place. 2. To remove: Press both Battery Pack Release Buttons and pull Battery Pack out of slot. Battery Pack Battery Release Pack Buttons Figure E: Battery Pack WWW.LITHELI.COM U1CS21113 Page 13...
  • Page 14 fingers tool indoors out of children’s reach. encircling the handle as shown in Figure G. USE THIS GRIP THUMB BELOW HANDLE Figure G: Holding the Chainsaw NOTE: Front Hand Guard not shown. WWW.LITHELI.COM Page 14 U1CS21113...
  • Page 15 Figure H: Escape Routes Remove dirt, stones, loose bark, nails, staples and wire from the tree. staples and wire from the tree. WWW.LITHELI.COM Page 15 U1CS21113...
  • Page 16 Remove the small limbs in one cut as illustrated in Figure J. Branches under tension should be cut from the bottom up to avoid binding the chainsaw. Limb Cut Keep work off ground leave support limbs until log is cut Figure J: Tree Limbing WWW.LITHELI.COM U1CS21113 Page 16...
  • Page 17 Then make the finished cut by overbucking to meet the first cut. cut overbuck (2/3 diameter) to meet 1 cut (to avoid pinching) cut underbuck (1/3 diameter) to avoid splintering Figure L: Log Supported One End WWW.LITHELI.COM Page 17 U1CS21113...
  • Page 18 Always stop the motor before moving from tree to tree. Stand on uphill side when cutting because log may roll Figure N: Bucking a Log WWW.LITHELI.COM Page 18 U1CS21113...

  • Page 19: Specifications

    Replacing the Saw Chain on page 11. when you notice any of the following symptoms: a. The sawdust becomes powder-like. b. You can’t make the cut without extra force. c. The Chainsaw does not cut straight. d. Vibration increases. U1CS21113 WWW.LITHELI.COM Page 19...

  • Page 20: Maintenance

    Guide Bar and turn over. b. Deburr Guide Bar as needed. Monthly Maintenance: Clean Chain Oil Tank. If Worn or Damaged: a. Replace Chain Guide Bar if it becomes b. Sharpen or replace Saw Chain. worn, bent or damaged. WWW.LITHELI.COM Page 20 U1CS21113...
  • Page 21 , AND NOT BY H B THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERET , ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERET . WWW.LITHELI.COM U1CS21113 Page 21...

  • Page 22: Parts List And Diagram

    Record Product’s Serial Number Here: NOTE :If product has no serial number, record month and year of purchase instead. NOTE : Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. WWW.LITHELI.COM Page 22 U1CS21113...
  • Page 23 Assembly Diagram WWW.LITHELI.COM U1CS21113 Page 23...

  • Page 24: Warranty

    Against Defects in Materials, Parts or Workmanship. Litheli at Its Own Discretion Will Repair or Replace Any and All Parts Found To Be Defective. All Units Must Be Used and Maintained in Accordance with The Directions and Regulations in The Operator's Manual.
