DONG SHIN MPR-5000R Operating Instructions Manual

Multi source receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
MULTI SOURCE RECEIVER
MPR-5000R

Advertisement

loading
Need help?

Need help?

Do you have a question about the MPR-5000R and is the answer not in the manual?

Questions and answers

Summary of Contents for DONG SHIN MPR-5000R

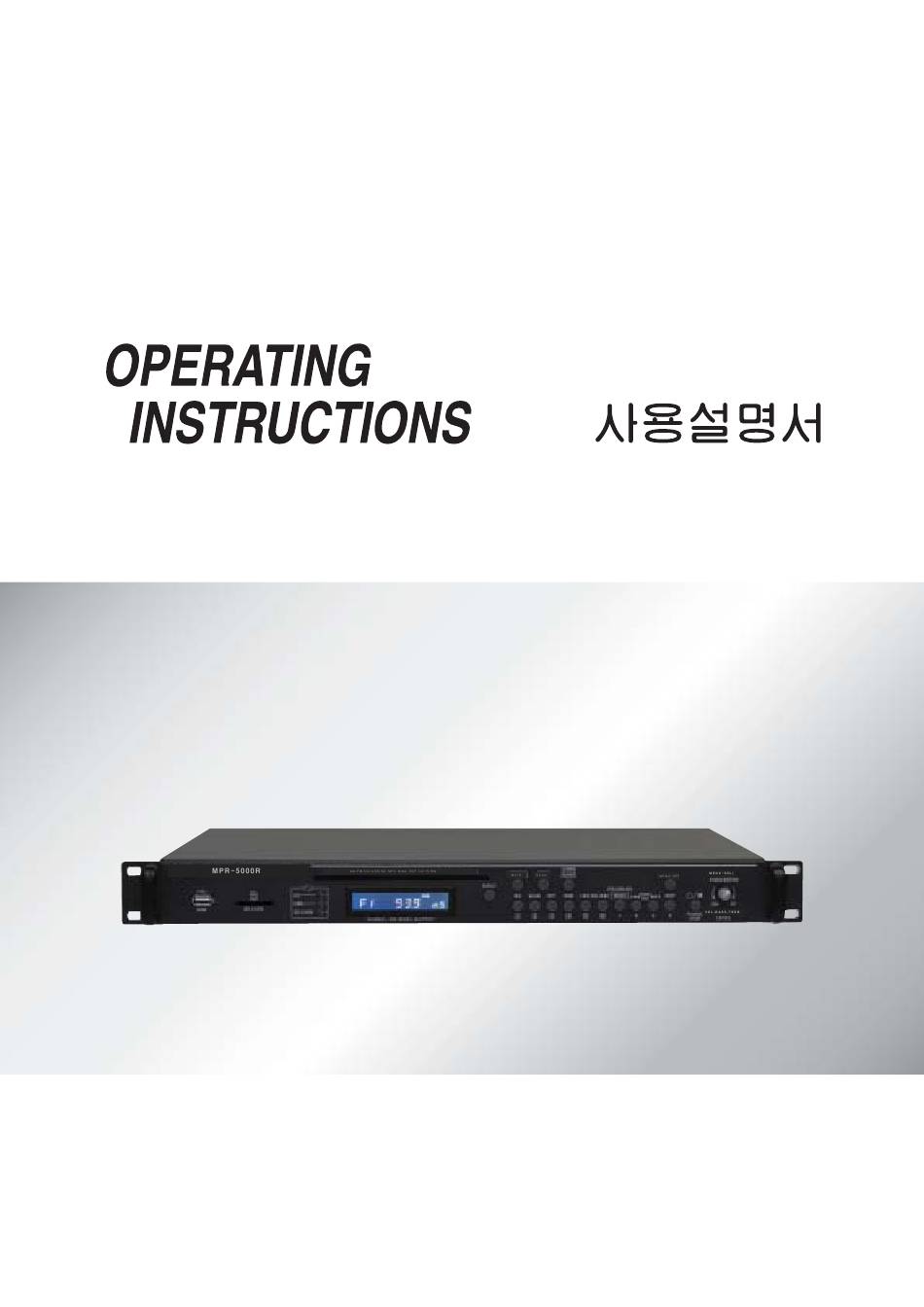

  • Page 1 MULTI SOURCE RECEIVER MPR-5000R...

  • Page 2: Table Of Contents

    AUTION AVIS SAFETY INSTRUCTIONS FEATURES RONT PANEL CONTROLS EAR PANEL CONTROLS PECIFICATIONS LOCK DIAGRAM...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Read all safety instruction before operating the APM-Series 1. Install equipment as follow conditions. Install at the place, not bending curved. Do not install this apparatus in a confined space such as a book case or similar unit. The apparatus shall not be exposed to dripping or splashing and no object filled with liquids, such as vases, shall be place on the apparatus.

  • Page 4: Ront Panel Controls

    RONT PANEL CONTROLS MENU 1. POWER STOP SWITCH 1. POWER STOP SWITCH Push this switch , Unit is turned on and operating. Pushing this switch more than 3 sec. , Unit is turned off. <CD MODE> - Push this switch less than 1 sec. , CD playing is stopped. <RADIO MODE>...
  • Page 5 RONT PANEL CONTROLS 4. LEVEL ADJUSTING / TRACK SELECTING 4-1. Level Adjusting (Treble / Bass Volume) <Operating Single Output System> - Push the rotary 1 time, LCD is indicated “VOL”, and the rotary is turned right , the output level is increased, and rotary is turned left , the output level is decreased.
  • Page 6 RONT PANEL CONTROLS 5. TUNE/TRACK >>I In Radio Mode In Radio mode Push the buttom 1time , move next boradcasting frequency. Pushing the button for 1 sec. , move next frequency continuously for pushing the button. In CD/USB/SD CARD Push the buttom 1time , move next track. Pushing the button for 1 sec.
  • Page 7 RONT PANEL CONTROLS <Single Output System Mode Changing> Whenever press the button(11) , mode is changed as following CD -> USB -> SD CARD -> TUNER (No inserted CD or USB or SD CARD , LCD is indicated “NO DISC”, “NO USB”, “NO SD”) <Dual Output System Mode Changing>...

  • Page 8: Ear Panel Controls

    EAR PANEL CONTROLS RS-485 1. AC POWER TERMINAL It is input terminal for AC 220V ~ 230V. It can be checked AC power detail before connect AC power. <Single Mode> 2. Balanced output terminal for Tuner, CD, USB & SD CARD. (Output level 0 ~ 4V RMS) 3.

  • Page 9: Pecifications

    PECIFICATIONS RECEIVER SECTION Tuning Range FM : 87.5~108MHz AM : 522~1620KHz Usable Sensitivity FM : 6 dBuV AM : 25dBuV ANT, Impedance FM : 75R UNBAL AM : LOOP ANT Signal to Noise Ratio FM : MORE THAN 60dB AM : MORE THAN 50dB Seek Stop Sens FM : 25dB (±5dB) AM : 30dB (±5dB)

  • Page 10: Lock Diagram

    LOCK DIAGRAM...
  • Page 11 423-795 Tel : +82-2-2636-8778 Rm.905 Gwangmyeong SK Technopark E Dong, DONG SHIN CO.,LTD. Fax : +82-2-2678-0878 1345, Soha-dong, Gwangmyeong-si, Gyeonggi-do C/N : MP R5000-01...
