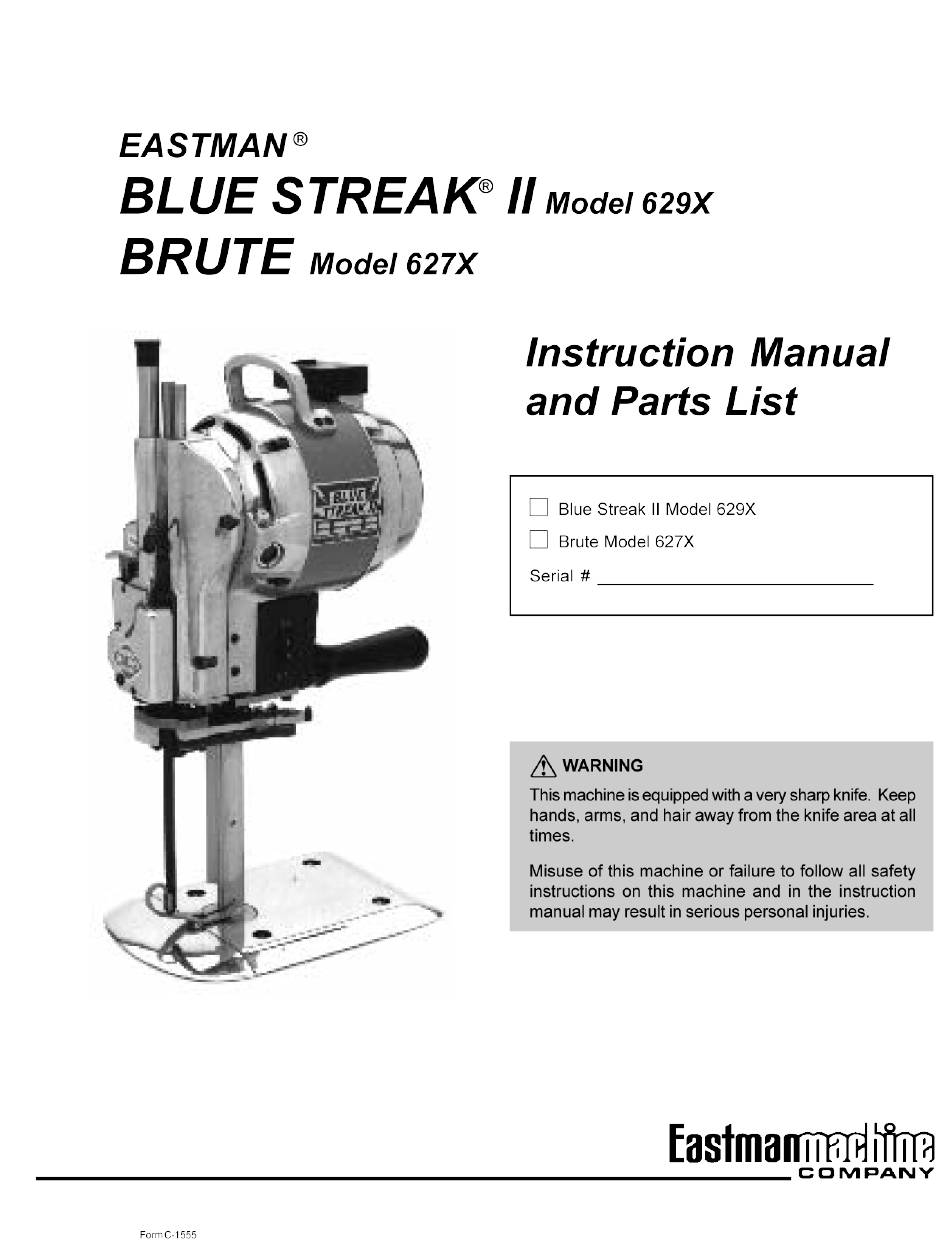

EASTMAN Blue streak II 629X Instruction Manual And Parts List
  1. Manuals
  2. Brands
  3. EASTMAN Manuals
  4. Accessories
  5. Blue streak II 629X
  6. Instruction manual and parts list

EASTMAN Blue streak II 629X Instruction Manual And Parts List

Hide thumbs Also See for Blue streak II 629X:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blue streak II 629X and is the answer not in the manual?

Questions and answers

Related Manuals for EASTMAN Blue streak II 629X

Summary of Contents for EASTMAN Blue streak II 629X

  • Page 2 (a) any special, indirect, incidental, or consequential damages, including, but not limited to, loss of use, revenue, or profit, even if Eastman has been advised of the possibility of such damages, or (b) any claim against the buyer by any third party. The price stated for the product sold is a consideration for limiting Eastman's liability.

  • Page 3: Table Of Contents

    Brute Model 627 and Blue Streak II Some parts of this manual and the equipment it describes Model 629. If you contact Eastman Machine Company for are protected by the following U.S. patents: 5,178,232, information or to order parts, always specify the machine 4,609,244, 5,111,582, 4,761,878, and D281,416.
  • Page 4 Figure 29. Sharpener Housing Assembly Figure 14. Available Metal Mesh Glove Styles ..... 17 (Exploded, Rear View) ........ 31 Figure 15. Eastman Abrasive Belts ......17 Figure 30. Lower Gear Bracket Assembly (Assembled View) ........32 Figure 16. Edges Produced by Different Belt Grits ..18 Figure 31.

  • Page 5: Safety Information

    Eastman Machine Company harmless from and against all claims, losses, expenses, damages, and liabilities to the extent that they have been caused by the purchaser’s fail- CAUTION ure to comply with the terms and instructions of this manual.

  • Page 6: Initial Set Up

    EASTMAN Operation CAUTION Operating this machine from an incorrect electrical Before operating the machine, read these instructions care- supply may damage it. fully. Familiarize yourself with all the functions and adjust- ments of the machine. 2. Check that the machine has been lubricated according to the schedule listed in Routine Maintenance–Lubrica-...

  • Page 7: Operating Procedure

    • How to disconnect power from the machine. If you are not familiar with any of these points, ask your supervisor or contact an Eastman representative. 2. Check the condition of your machine and working area. Make sure that: •...

  • Page 8: Starting The Machine

    EASTMAN Turning Off the Machine Starting the Machine When you have finished using your machine: If you have had the machine less than one month or if it has stood idle for any length of time, turn the motor on and off a 1.

  • Page 9: Twice Weekly

    Sharpening the Knife CAUTION Sharpen the knife at frequent intervals or whenever you feel Use only specially compounded Eastman 30-weight, non- it is not cutting adequately: detergent oil. Use of sewing machine oil or detergent oil may result in damage to your machine. Do not oil the 1.

  • Page 10: Replacing The Rubber Driver Pulley

    EASTMAN Replacing the Rubber Driver Pulley WARNING The sharpener is driven by a rubber driver pulley, as shown This machine is equipped with a very sharp knife. Re- in Figure 4. Replace this driver pulley whenever it appears move the knife when working in this area. Failure to keep...

  • Page 11: Adjusting The Belt Sharpener

    Adjusting Stabilizers for Central Alignment Adjusting the Belt Sharpener 1. Disengage the attachment plug, if you have not already done this. Note: You can obtain all the special tools you will require for adjusting the sharpener by ordering tool kit #820C2. 2.

  • Page 12: Checking The Sharpener Shoes

    EASTMAN 5. Remove the locknut (Figure 6, 3). Checking the Extreme Down Position of the Sharpener The correct down position is with the tip of the knife at the 6. Install gauge C189 on the exposed threaded end of the center of the belt on the shoe (Figure 6, 12).

  • Page 13: Checking The Stop Screw On The Sharpener Shoe

    5. When the spacer is adjusted, use the pin to hold the Changing the Knife spacer in position, reassemble, and tighten the locknut (Figure 6, 15). WARNING 6. Replace the plastic cap. Always handle knives with care. Safely dispose of used Checking the Stop Screw on the Sharpener Shoe knives.

  • Page 14: Figure 8. Available Eastman Knife Types

    Unplug the attachment plug from power source. three or four times before starting to cut. Note: For best results, use only Eastman knives. The 1. Make sure the sharpener is in the locked position. limited warranty covering your machine is not valid if you use knives other than those manufactured by 2.

  • Page 15: Adjusting Bevel Bloc® Shoes

    ® Adjusting Bevel Bloc Shoes Eastman’s exclusive, patented adjustable Bevel Bloc sharp- ener shoes make it possible to grind any desired bevel on the knife edge. The knife-edge bevel on your new machine is factory set to handle all normal fabrics and normally should not be changed.

  • Page 16: Adjusting Bevel Bloc Shoes (Continued)

    EASTMAN Adjusting Bevel Bloc ® Shoes (continued) If you need to adjust the bevel on the knife edge to a differ- ent length, proceed as follows: 1. Disconnect the machine from the power source. 2. Lower the knife to the bottom of the stroke with the machine turning knob (Figure 2, F on page 3).

  • Page 17: Figure 11. Maintenance Supplies

    34C10-145 Spring Shoe L.H. 242C2-2 Eastman Bearing Grease 34C10-146 Spring Shoe R.H. 162C2 Oil Can 95C5-3 Wrench, Allen 242C1* 1/2 Pint Eastman Oil 95C5-5* Wrench, Allen 81C1-2 Slot Cleaner 103C2-35 Shoe, Sharpener R.H. 103C2-36 Shoe, Sharpener L.H. *Optional 308C10-1* Screw, Socket 6/32" x 5/16" (2 required) 766C1* Bevel Block Assembly R.H.

  • Page 18: Troubleshooting

    EASTMAN Troubleshooting PROBLEM SOLUTION PROBLEM SOLUTION Motor overheats a. Cut out switch not engaging Machine does not a. Surface of cutting table not properly move easily on table smooth b. Lint and dust inside motor b. Rubber mounted rollers com-...

  • Page 19: Figure 12. Single-Phase Electrical Configuration

    Figure 12. Single-Phase Electrical Configuration Form C-1555...

  • Page 20: Freeing Frozen Guides

    EASTMAN Freeing Frozen Guides 8. Place a fiber or brass rod against the bottom of the crosshead and drive the crosshead out through the top of the guides. Note: If the wrist pin is frozen in the crosshead, drive the wrist pin out of the crosshead with a soft punch.

  • Page 21: Ordering Details

    The circular motion of the knife could pull the glove towards the blade. Genuine Eastman Abrasive Belts Eastman’s four abrasive belt grits offer an edge for every fabric. For increased cutting efficiency, Eastman offers four different edges as produced by four different abrasive belts.

  • Page 22: Ergo-Handle

    Figure 16. Edges Produced by Different Belt Grits Ergo-Handle Available as an option on new machines or for retrofitting to any existing Eastman straight knife, the Ergo-Handle al- lows the operator to adjust the handle downward from the standard horizontal through a 14-degree range. Adjusting the handle’s angle to suit the operator’s preference allows...

  • Page 23: Specialty Machines

    Specialty Machines Micro Fog Model 627MF/629MF Eastman's Micro Fog is designed for the same purpose as Plastic Master Model 627PM/629PM the Plastic Master, but is more comprehensive. The exclu- Eastman's Plastic Master has been specifically designed sive Micro Fog and a 90-120 psi compressed air hose sends...

  • Page 24: Illustrated Parts List

    Lower Gear Bracket Assembly Illustrated Parts List See pages 32 and 33. Your Eastman Straight Knife has been carefully designed to Note: Four different abrasive belt grits (designed to provide provide many hours of trouble-free operation. The compre- you with a selection of edges) may be ordered for this ma- hensive exploded parts illustrations have been carefully pre- chine.

  • Page 25: Figure 20. Standard And Baseplate Assembly (Exploded View)

    SHARPENER HOUSING ASSEMBLY (FRONT VIEW) SEE PAGES 28 AND 29 SHARPENER HOUSING 20C3-38 ASSEMBLY 20C3-39 (REAR VIEW) SEE PAGES 30 AND 31 MOTOR ASSEMBLIES SEE PAGES 22, 23, 24 AND 25 FRONT BEARING HOUSING ASSEMBLY SEE PAGES 26 AND 27 KNIFE PAGES 10 AND 11...

  • Page 26: Figure 21. Single-Phase Motor Assembly (Assembled View)

    EASTMAN Single-Phase Motor Assemblies (Single- and Dual-Speed) Part No. No. Req'd Description 53C7-35 Fan Cover 73C7-121 Terminal Wire Tubing 90C1-146 Rear Bearing Housing 90C6-46 Rear Ball Bearing 236C1-177 Label, Warning 254C1 Cable Tie, 4" 300C12-6 Screw, Round Head 301C8-1 Screw, 4-40 x 1/2 Fillister Head...

  • Page 27: Figure 22. Single/Dual-Phase Motor Assembly (Exploded View)

    STATOR WITH BAND SINGLE-PHASE SINGLE-SPEED (See Page 22 for Ratings) WARNING Attach ground wire to ground terminal 514C7-109 514C7-128 Note: L.H. indicates left- 514C7-110 514C7-137 “E” on Terminal block. Failure to hand thread. All others are 514C7-113 514C7-138 ground Terminal block may result in 514C7-117 514C7-140 right-hand.

  • Page 28: Figure 23. Three-Phase Motor Assembly (Assembled View)

    EASTMAN Three-Phase Motor Assemblies (Single- and Dual-Speed) Part No. No. Req'd Description 1C4-8 Sleeve, Cutout 4C1-145 Shaft Lock Nut 4C2-87 Nut, Clutch 10C1-41 Rotor Fan 12C1-12 Loading Spring Washer 12C1-32 Lock Washer 13C1-9 Turning Knob 18C6-16 Retaining Ring 22C1-24 Handle, Carrying...
  • Page 29 STATOR WITH BAND WARNING Note: L.H. indicates left- THREE-PHASE SINGLE-SPEED (See Page 24 for Ratings) hand thread. All others Attach ground wire to ground terminal are right-hand. “E” on Terminal block. Failure to 514C7-116 514C7-155 ground Terminal block may result in 514C7-130 514C7-157 514C7-135...
  • Page 30 EASTMAN Front Bearing Housing (90C2-162) with Oiler Assembly Part No. No. Req'd Description 62C1-140 Handle Bracket 71C3-18 Front Ball Bearing Retainer 72C4-28 Oil Hole Cover 73C7-203 Oil Tube, Clear 73C7-204 Oiler Tube 85C1-52 Crank-1-1/8 Stroke 85C1-46 Crank 1-1/4 Stroke 85C1-45...

  • Page 31: Figure 25. Front Bearing Housing With Oiler

    Note: Certain 220 volt machines will use these capacitors. Please check the capacitor number on label of your machine to order. WARNING 220/3-phase dual-speed only switch must be grounded. Failure to ground this switch may cause electrocution or serious personal injuries. Notes: L.H.

  • Page 32: (Assembled, Front View)

    EASTMAN Sharpener Housing Assembly (Front View) Part No. No. Req'd Description For both 627 & 629 4C1-149 Nut, Elastic 4C1-161 Nut, Self Lock 4C2-112 R.H. Nut for Screw Shaft 4C2-113 L.H. Nut for Screw Shaft 5C5-16 Collar, Lower 11C12-54 Shaft for Cam...
  • Page 33 *THESE PARTS SOLD ONLY IN ASSEMBLIES AS FOLLOWS. 713C4-4 Screw Shaft with Extension, R. & L. Hand Nuts 5"-8" 713C4-5 Screw Shaft with Extension, R. & L. Hand Nuts 9"-10" 713C4-6 Screw Shaft with Extension, R. & L. Hand Nuts 11 1/2" 713C4-7 Screw Shaft with Extension, R.

  • Page 34: Figure 28. Sharpener Housing Assembly

    EASTMAN Sharpener Housing Assembly (Rear View) Part No. No. Req'd Description For both 627 & 629 4C2-2 Lock Nut for Shaft 4C2-85 R.H. Follower Nut 4C2-86 L.H. Follower Nut 11C12-58 R.H. Square Shaft 5"-8" Knife 11C12-59 R.H. Square Shaft 9"-10" Knife 11C12-81 R.H.

  • Page 35: Figure 29. Sharpener Housing Assembly (Exploded, Rear View)

    R.H. SQUARE SHAFTS 11C12-58 5"-8" Knife 11C12-59 9"-10" Knife 11C12-81 11 1/2" Knife 11C12-85 13" Knife TUBES FOR SQUARE SHAFTS 73C7-46 5"-8" Knife 73C7-47 9"-10" Knife 73C7-86 11 1/2" Knife 73C7-88 13" Knife TUBES FOR SCREW SHAFTS 73C7-48 5"-8" Knife 73C7-49 9"-10"...

  • Page 36: Figure 30. Lower Gear Bracket Assembly

    EASTMAN Lower Gear Bracket Complete Sharpener Assembly Numbers: 637C10-* Assembly Machine Stroke Illustrated Parts List 1-1/8" 1-1/4" 1-1/2" 1-3/4" 5" -20, -21, -22, -23, 6" -24, -25, -26, -27, 7" -28, -29, -30, -31, 8" -32, -33, -34, -35, 9"...
  • Page 37 Note: L.H. indicates left-hand thread. All others are right-hand. FOR BELT LISTING See Page 18 Figure 31. Lower Gear Bracket Assembly (Exploded View) Form C-1555...

  • Page 38: Figure 32. Standard And Baseplate Assembly

    EASTMAN Standard and Baseplate Assembly Part No. No. Req'd Description For both 627 & 629 12C1-35 Lock Washer, #8 12C15-77 Washer for Micro Fog Standard 17C1-4 Taper Pin #0 x 3/4 17C6-9 Hinge Pin 20C5-12 Clamp Screw for Rollers 20C12-19...

  • Page 39: Figure 34. Removing A Worn Plate Roller Shell

    INSTRUCTIONS FOR REMOVING WORN PLATE ROLLER SHELL Figure 34. Removing a Worn Plate Roller Shell CAUTION Do not oil the plate roller shells or you may dam- age them. Place the plate on blocks and press out the roller shell from the ring assembly (Figure 34). NOTE: A roller shell (complete with shaft and bearings) may be ordered as required.
