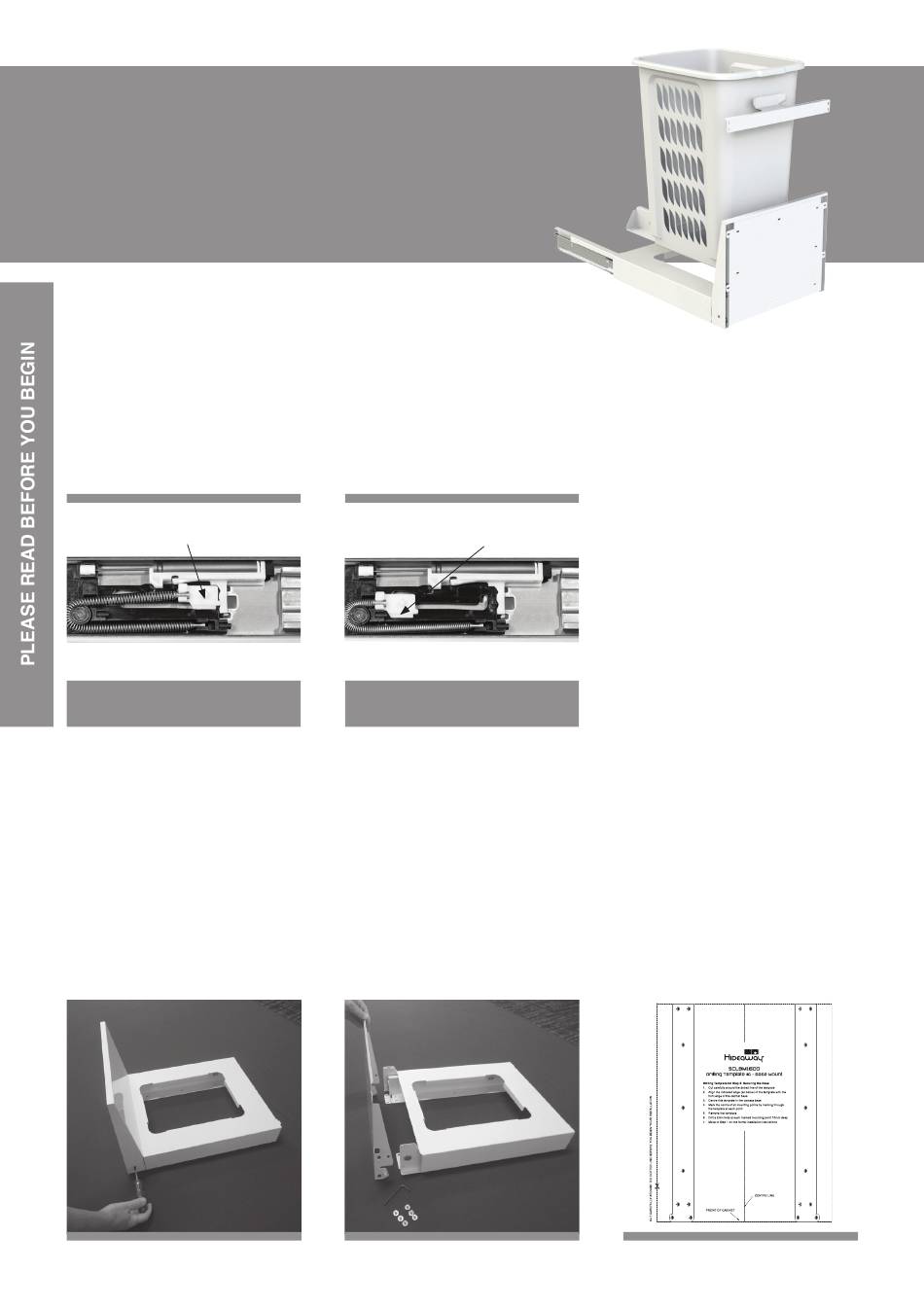

Hideaway Soft Close Series Installation Instructions

Hideaway
Installation Instructions
60L Base Mounted
Laundry Hamper

Important Installation Information:

AT ALL STAGES OF THE INSTALLATION ENSURE THE SPRING CARRIER ON THE
RUNNER IS ENGAGED!
Before you open your soft close runners, ensure the spring carriers are loaded. Failure to do so may cause damage to your runners.
Figure 1a - Demonstrates the spring
carrier in the engaged position. This is the
correct positioning.
Runner engaged - correct
FIG 1a - Runner Engaged

Step 1 - Unpack Hideaway Bin

1a Remove the laundry hamper base from
packaging.
Remove the door bracket cover by
removing the M4 machine screw on right
and left side.
Soft Close Range
®
Figure 1b - Demonstrates the spring carrier in an disengaged position. To move into
engaged position, move the white spring carrier along its runner until it clicks into location
demonstrated by arrow in Fig 1b. Alternatively, if discovered after installation is complete
then you may also try the following: push the drawer to the firmly closed position. Push the
disengaged side of the door firmly until you hear a click from the runner re-engaging. The
runner should now close fully under normal operation and be positioned as shown in Fig 1a.
Runner disengaged - incorrect
FIG 1b - Runner Disengaged
INSTALLATION INSTRUCTIONS
1b Remove the door mounting bracket
from the base by removing the M6 cap
screws using the hex key provided.
Leave the runners and runner support
connected with the base plate.
The base unit is now ready to be installed.
Base Unit
Use the
Template 1 provided.

Step 2 - Secure the base

2a
(pictured below) to mark mounting
positions for
Pre-drilling instructions are shown on the
drilling template. Please follow instructions
Drilling Installation given then move on to Step 2b.
Use the Drilling Template 1 provided
Base Unit.
