Summary of Contents for Audiomedia AMV108F

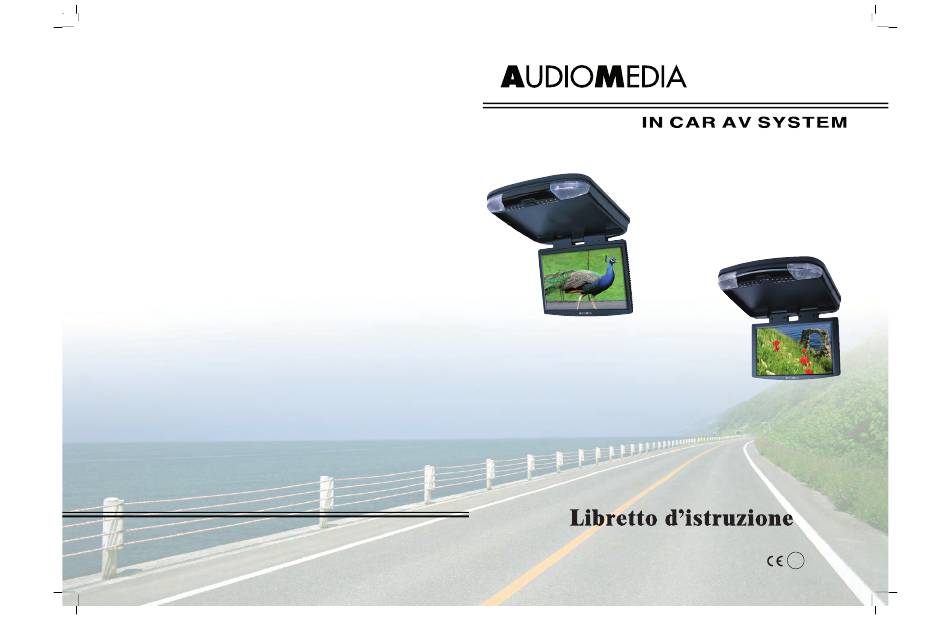

- Page 1 A M V 1 5 8 F A M V 1 0 8 F 10R-9587...
- Page 2 Thank you for buying Audiomedia AMV108F/AMV158F. • Please read this manual carefully before using • Keep this manual safely, for future needs • Keep the receipt to get warranty advantages Clarital Via Agnoletti, 6/5 42100 Reggio Emilia Tel. 0522 930911 (6 linee r.a.) Fax. 0522 304340...
-
Page 3: Table Of Contents
CONTENTS 1. FEATURES......................20 2. SAFETY PRECAUTIONS AND MAINTENANCE..........21 3. PACKAGE CONTENTS...................22 4. BUTTON FUNCTIONS...................23 5. LCD PANEL ADJUSTMENT...............24 6. REMOTE CONTROL...................25 7. PICTURE ADJUSTMENT...................26 8. INSTALLATION AND CONNECTIONS............27 9. CONNECTION DIAGRAM................30 10.TROUBLES SHOOTING...................31 11.SPECIFICATIONS....................32... -
Page 4: Features
1. FEATURES Audiomedia AMV108F and AMV158F are TFT-LCD Color Monitors that can be used as a stand-alone displays, or can be integrated into a mobile multimedia system. The units has the following features: Caratteristiche AMV108F English • 10.2" TFT-LCD color monitor (16:9) •... -
Page 5: Safety Precautions And Maintenance
2. SAFETY PRECAUTIONS AND MAINTENANCE The unit is designed for using in DC12V, negative ground battery. Do not operate the unit in any way other than described within this manual. Failure to follow the instructions within the manual will invalidate your warranty. SAFETY FIRST! Do not install the display where it may (i) obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including airbags, or (iii) impair the driver’s ability to safely operate the vehicle. -
Page 6: Package Contents
3. PACKAGE CONTENTS LCD Display IR Remote Control w/Battery Car Power Cable English Metal Mounting Plate ST4.2x16 CM 4x8 User’s Manual Use only the contents of this package to install. Use of any accessories not provided with this monitor may result in damage to the display. Before installing this display system, please check with the conformity of your local traffic rules and regulations. -
Page 7: Button Functions
4. BUTTON FUNCTIONS English 1. Power ON/OFF Button [ ] Press the button on the panel or on the remote control to turn on the power. Press again, to switch off power. 2. AV1, AV2 Button Press to select the video input mode (AV IN1 and AV IN2). 3. -
Page 8: Lcd Panel Adjustment
5. LCD PANEL ADJUSTMENT Open the LCD panel. Press Open Button to disengage the LCD panel. Pull the LCD panel outward till the desired viewing angle. English 175° Open Button CAUTION The LCD display opens to a maximum angle of 175° degrees. Opening it further than that may cause damages. -
Page 9: Remote Control
6. REMOTE CONTROL POWER button MODE button [ ] - [POWER] [MODE] [MENU+] English [MENU-] Inside the vehicle, simply aim the IR Remote Control directly at the unit, and press any desired button for better effects. Notes: Put the IR Remote Control from no further than 3 Meter on either side of the sensor. Direct sunlight or very bright light reduces sensitivity to the IR remote signal commands. -
Page 10: Picture Adjustment
7. PICTURE ADJUSTMENTS To adjust the picture, use the menu button to select the menu features you would like to adjust. Adjustments selections are as follows. The values of selected feature can be adjusted by pressing the “+” and “-” button on the remote control or “... -
Page 11: Installation And Connections
8. INSTALLATION AND CONNECTIONS Installation instruction To prevent short circuits, remove the key from the ignition and disconnect the terminal of battery. Make proper input and output cable connections for each unit. Connect the wire harness in the following order: ground wire, battery wire, ignition wire. - Page 12 8. INSTALLATION AND CONNECTIONS 5. Pull out the original dome light Power wire and Signal/power Cable through the original dome light opening. 6. Place the rubber on the player 14 English 7. Connect input and output cables. 8. Connect the wire harness in the following order: ground wire, battery wire, ACC wire and door wire.
- Page 13 8. INSTALLATION AND CONNECTIONS Battery replacement If the remote control does not function correctly or the operating range shortened, please replace the old battery with a new one. 1. Follow the arrow 1 to slide it to the right toward the battery, at the same time to pull the battery holder away from the remote control as arrow 2 instructed.
-
Page 14: Connection Diagram
9. CONNECTIONS DIAGRAM B+ (giallo) ACC (rosso) GND (nero) English Apertura portiera - door (verde) IN 2 A/V OUT A/V IN 1 Switch on the rear... -
Page 15: Troubles Shooting
10. TROUBLESHOOTING English... -
Page 16: Specifications
12. SPECIFICATIONS POWER SOURCE CAR BATTERY (DC +10.5V ~ +16V) OPERATING VOLTAGE DC +12V MECHANISM manual open / close English DISPLAY ANGLE vertical adjustable: up/down <175° OPERATING CURRENT <1.2A (dome light off) DOME LIGHT 5W X 2 OPERATING TEMPERATURE 0° C to 55° C STRNGAGE TEMPERATURE -20°...
