Yolink YS6801-UC/SM-SO301 User Manual

Smart

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

User Guide

YS6801- UC/SM - SO301

Smart Power Strip

Table of Contents

Need help?

Do you have a question about the YS6801-UC/SM-SO301 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yolink YS6801-UC/SM-SO301

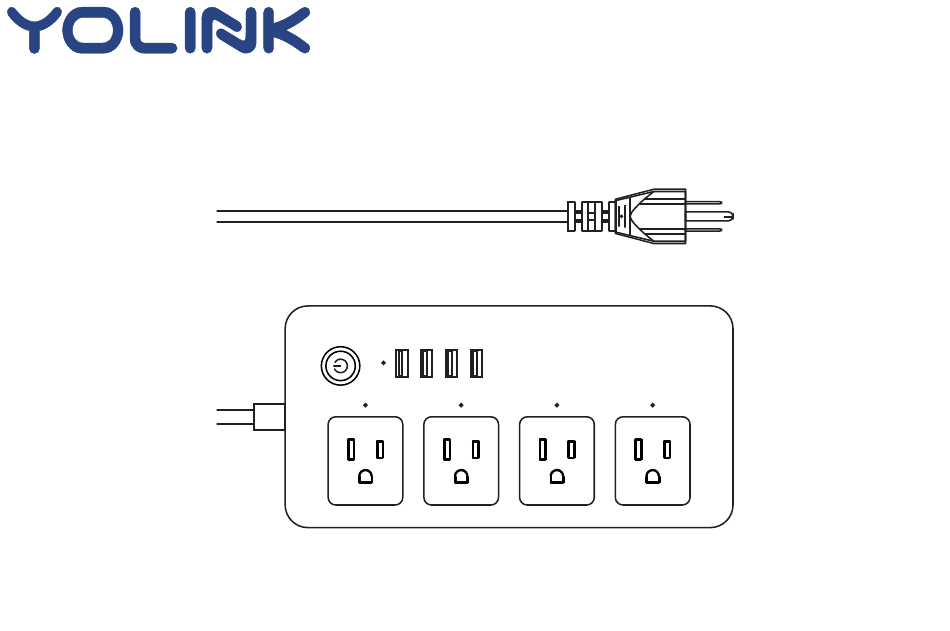

Page 1 User Guide YS6801- UC/SM - SO301 Smart Power Strip...
Page 2: Table Of Contents
Contents Introduction······························································1 Features··································································3 Product Requirements·················································3 Set Up Smart Power Strip·············································4 Using YoLink App with Smart Power Strip··························8 YoLink Control···························································13 Maintaining the Smart Power Strip································16 Speciﬁcations··························································18 Troubleshooting························································19 Customer Service & Warranty·······································20...
Page 3: Introduction
Introduction With independent control of 4 smart outlets and 4 USB ports, you can easily control lights and home electric devices via YoLink App on your iOS or Android device. USB PORT Charge your tablet, smartphone or other devices. Default is turned on...
Page 4 LED light can show you the current status. See the explanation below: Blue At least one plug or USB ports is on. All plugs and USB is off. Blinking Blue Connecting to cloud. The USB ports are on. Fast Blinking Blue Set up connection with devices.
Page 5: Features
Features Individual Control - Independently control 4 smart outlets and USB ports via YoLink App on your iOS or Android device. Control from anywhere - Control your Smart Power Strip remotely via YoLink App on your iOS or Android device.
Page 6: Set Up Smart Power Strip
Set Up Smart Power Strip Follow the steps below to set up your Smart Power Strip via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play.
Page 7 Step 2: Log in or sign up with YoLink account Open the App. Use your YoLink account to log in. If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account.
Page 8 Name - Name Smart Power Strip. b. Room - Choose a room for Smart Power Strip. c. Favourite - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account.
Page 9 Step 4: Connect to the cloud Plug into an outlet and your device will connect to the cloud automatically. Note Make sure you hub is connected to internet. Internet Cloud...
Page 10: Using Yolink App With Smart Power Strip
Using YoLink App with Smart Power Strip Details You can customize the name, set the room, add to/remove from favourite, check device history. a . N a m e - N a m e S m a r t P o w e r S t r i p o r 4 o u t l e t s a n d U S B i n d i v i d u a l l y.
Page 11 Timer With YoLink App, you can set up a timer to turn on or/and off 4 outlets individually. Tap the “Smart Power Strip ” in App to go to its controls. Tap “Timer” for timer setting. Choose action from “ON”, “OFF”, or “ON then OFF”.
Page 12 Schedule You can create ON/OFF schedules to automate your plugged-in devices to work around your home and work schedules. Tap the “Smart Power Strip ” in App to go to its controls. Tap “Schedule” to open the Schedule screen, tap “ ”...
Page 13 Scene Set one-click control for multiple devices in your YoLink App. You only run a scene via your YoLink App. Tap “Smart” to switch to Smart Screen. Tap “ ” to create your own Scene. To set a Scene, you will be able to put one or more devices under this scene, and deﬁne their actions...
Page 14 Automation Automation allows you to set up “If This Then That” rules so the devices could act automatically. Tap “Smart” to switch to Smart screen and tap “Automation”. Tap “ ” to create an automation. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition.
Page 15: Yolink Control
YoLink Control YoLink Control is our unique “device to device” control technology. Under YoLink Control, the devices can be controlled without internet or Hub. Device which send out command is called controller(Master). Device which receive command and act accordingly is called responder(Receiver).
Page 16 Pairing Find a power strip as controller(Master). Hold the power button for 5-10 seconds, the light will ﬂash blue quickly. Find another action device as responder(Receiver). Hold the power/set button for 5-10 seconds, the device will enter pairing mode. After pairing succeed, the light will stop ﬂashing. When the power strip turns on, the responder will turn on as well.
Page 17 YoLink Control Diagram OPENED OPENED CLOSED CLOSED TURN OFF TURN ON TURN OFF TURN OFF PAIRED UNPAIRED...
Page 18: Maintaining The Smart Power Strip
Maintaining the Smart Power Strip Firmware Update E n s u r e o u r c u s t o m e r h a v e t h e b e s t u s e r e x p e r i e n c e . H i g h l y r e c o m m e n d y o u c o u l d u p d a t e o u r n e w e s t v e r s i o n ﬁ...
Page 19 Factory reset will erase all your settings and bring it back to default. After the factory reset, your device will still in your Yolink account. Hold the power button for 20-25 seconds until the LED blinks red and green alternately.
Page 20: Specifications
Speciﬁcations Input: 100 ~ 120V AC, 60Hz 100 ~ 120V AC, 10A MAX (Resistive) AC Power Output: USB Power Output: 5V DC, 2.1A -30°C ~ 70°C (Humidity <90%) Environment:...
Page 21: Troubleshooting
There was a power blackout before turn on/off the power strip also you can Timer does not run. timer executes. turn on/off power strip via YoLink App or set a new timer. Other problems. Product defective. Please contact customer service.
Page 22: Customer Service & Warranty
If you are unable to get your power strip working Please contact Our Customer Service during business hours US Live Tech Support: 1-844-292-1947 M-F 9am - 5pm PST Email: support@YoSmart.com YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614 WARRANTY 1 Year Limited Electrical Warranty YoSmart warrants to the original residential user of this product that it will be free from defects in materials...
Page 23 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 24 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Conﬁgurations.
