Design 2000 ON HOLD MESSENGER APPLIANCE OH-4910 User Manual

ON HOLD MESSENGER APPLIANCE
USER GUIDE
Introduction
The On Hold Messenger Appliance Model OH-4910 is a 'no-frills' record/loop-playback unit for playing messages to
telephone callers when they are placed on hold. Importance has been placed on telephone quality message reproduction
rather than supplementary facilities. Also, the unit is not adversely affected by power interruptions. Your on-hold message
is retained indefinitely until you download a new one and, loop-playback starts automatically when power is applied.
The On Hold Messenger Appliance is supplied with superb royalty-free music ready for immediate use. You can
personally download your own on-hold message from a tape, CD or PC Sound card and your message can run for up to
four minutes (eight minutes optional).
Applications for this device include on-hold messaging and recorded information services.

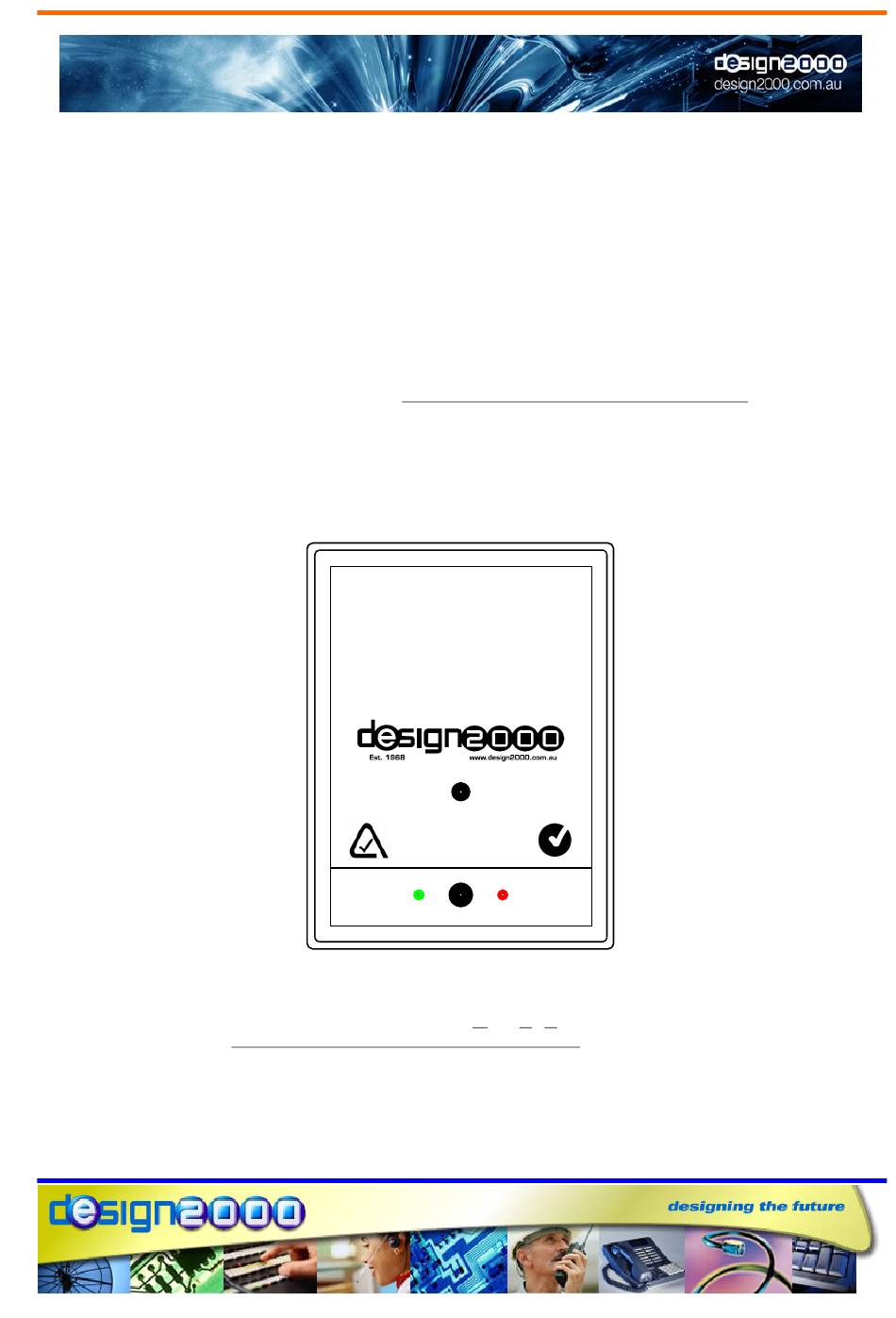

Diagram
Connection
The On Hold Messenger Appliance is simply connected to the Music On Hold (MOH) port of any telephone system via
the RJ12 socket on the unit. No external Line Isolation Unit (LIU) is required. Apply 12Vdc power to the On Hold
Messenger Appliance 2.1 mm power socket and the recorded message automatically starts playing in an endless loop.
Note: When the On Hold Messenger Appliance is playing, the green 'Play' LED indicator is steady on.
When the On Hold Messenger Appliance is recording the red 'Record' LED indicator blinks.
User Guide for On Hold Appliance OH-4910
RECORD INPUT
ON HOLD
MESSENGER
APPLIANCE
MODEL OH-4910
MADE IN AUSTRALIA
OUTPUT
VOLUME
ACA SUPPLIER'S
CODE N468
PLAY REC
ON HOLD POWER
PORT PRESS TO RECORD 6-12V DC
Document G/01144
OH-4910
