UNIVIEW UNI-2165H User Manual

Thermal imager
Hide thumbs
Table of Contents

Advertisement

Quick Links

P/N:110401109192X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNI-2165H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for UNIVIEW UNI-2165H

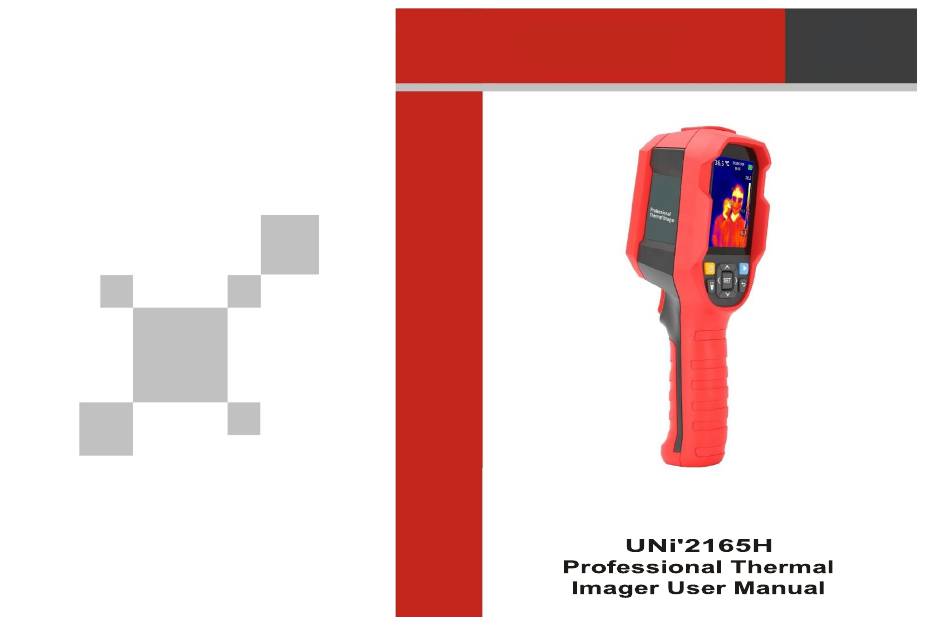

  • Page 1 P/N:110401109192X...
  • Page 2 UNi'2165H Preface Thank you for purchasing this brand new product. In order to use this product safely and correctly, please read this manual thoroughly, especially the safety notes. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.

  • Page 3: Table Of Contents

    1. Safety Instructions To ensure proper use of this product, please read the instructions carefully before using. Table of Contents • The optimal measuring distance for this product is 1 meter. • To ensure measurement accuracy please use the product in an operating environment of 15°...

  • Page 4: Structure

    3. Display 2. Structure Display size: 2.8" Display resolution: 320 (vertical) x 240 (horizontal) pixels Description Description Item Item Description Description Item Item Temperature unit option Maximum temperature point Tripod mounting hole Micro SD card slot Cursor option Center point Type-C USB interface Flashlight button Color palette option...

  • Page 5: Menu Introduction

    5. Menu Introduction 6.0perating Instructions 6.1 Temperature Unit Selection 1. Press the SET button to open the main menu. 2. Press the left/right button to select option. Press the SET button to enter the temperature unit submenu. 4. Press the up/down button to select 5.
  • Page 6 6.4 High/Low Temperature Alarm To track high temperature: 1. Press the SET button to open the main menu. 2. Press the left/right button to select the option. 3. Press the SET button to enter the cursor submenu. 4. Press the up/down button to select the option.
  • Page 7 6.5.1 Language 6.5.3 Emissivity/Temperature Compensation To set emissivity/temperature compensation: To set language: 1. Press the up/down button to select the Emissivity option in the Settings menu. 1. Press the up/down button to select the Language option in the Settings menu. 2.
  • Page 8 6.5.7 Alarm Temperatures 6.5.5 Display Brightness To set alarm temperatures: To set display brightness: 1. Press the up/down button to select the HI/LO Alert option in the settings menu. 1. Press the up/down button to select the Brightness option in the settings menu. 2.

  • Page 9: Usb Communication

    6.5.9 Factory Reset 6.5.11 Auto Save To restore settings: 1. Press the up/down button to select the Factory Reset option in the settings menu. To turn on/off auto save: 2. Press the SET button to enter the Factory Reset submenu. 1.

  • Page 10: Specifications

    8. Specifications General parameters PC software UFPA Sensor Type-C USB interface Data transmission Temperature range 30° C~45° Product size (L x W x H) 236mm x 75.5mm x 86mm Measurement resolution 0.1° Display type ± 0.5° C (at 25° C ambient temperature) 2.8"...

  • Page 11: Maintenance

    9. Maintenance Use a wet cloth or weak soap solution to clean the outer shell of the device. Do not use abrasives, isopropyl alcohol or solvents to clean the outer shell, lens or window. 10. Common Emissivity Emissivity Emissivity Material Material Black paper Wood...
