WARNING
The installation must only be performed by a licensed electrician.
l
To prevent death, injury or damage to property, this product must be installed in accordance to National
l
Electrical Code (NFPA70) in the US or Canadian Electrical Code (CSA22.1) in Canada.
Disconnect power before installing the product or servicing it.
l
Wait until fixture has cooled down before installing or servicing the fixture.
l
MIN. 90°C SUPPLY CONDUCTORS
l
MODEL NUMBERS
This installation instructions covers the following products:
Power Supplies
1. 50W Power Unit: PUC-UNV1-2100
2. 75W Power Unit: PUC-UNV1-3000
3. 96W Power Unit: PUC-UNV1-3570
Luminaires
1. CNP-1-50 Series Luminaires
BOX CONTENTS
Mounting Plate Assembly
Wire Harness/Cover
Assembly
US LED
| 6807 PORTWEST DR | HOUSTON, TX 77024 | T 866 972 9191 | F 713 972 9393 | info@usled.com | www.usled.com

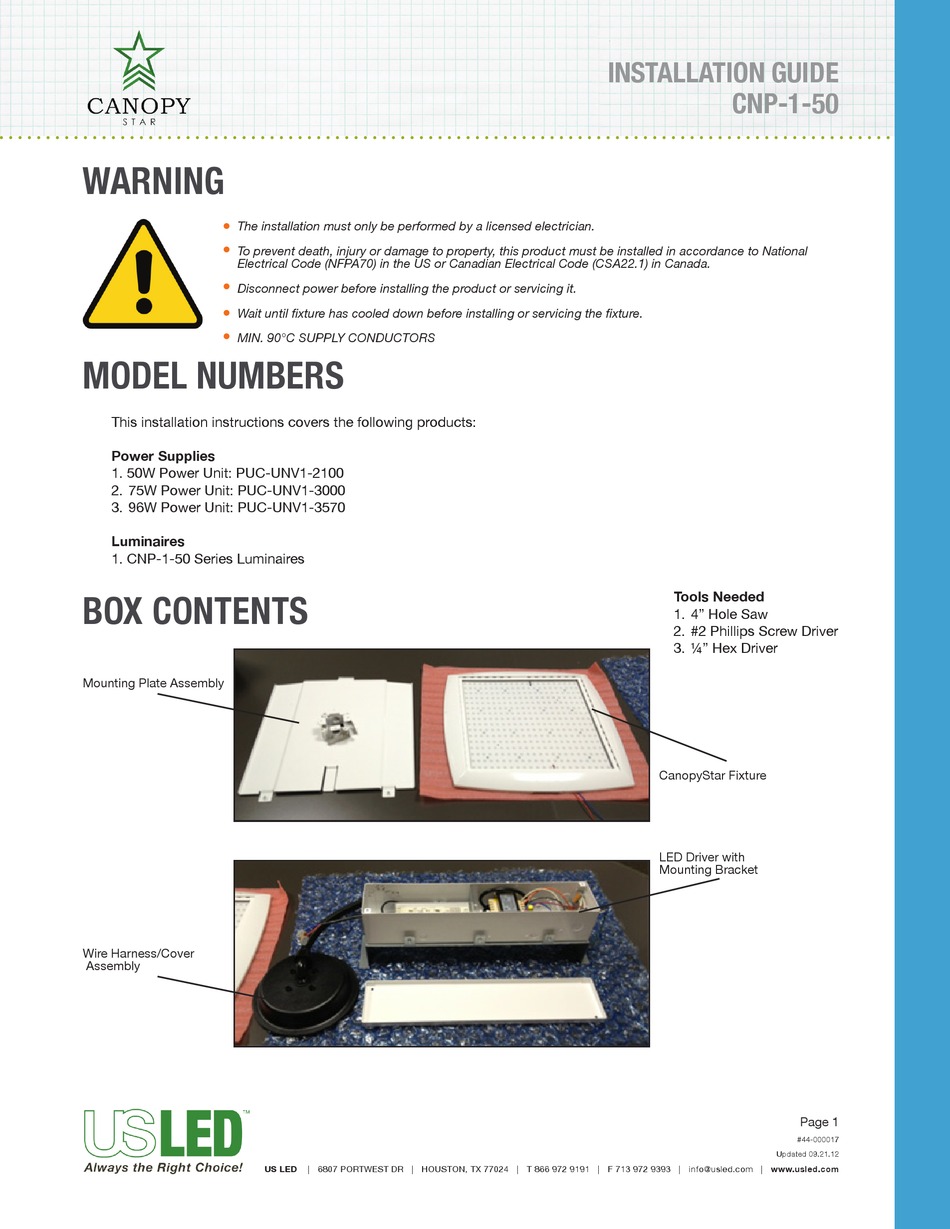

INSTALLATION GUIDE
CNP-1-50
Tools Needed
1. 4" Hole Saw
2. #2 Phillips Screw Driver
3. ¼" Hex Driver
CanopyStar Fixture
LED Driver with
Mounting Bracket
Updated 09.21.12
Page 1
#44-000017
Advertisement
Table of Contents
Summary of Contents for CANOPY US LED CNP-1-50 Series
- Page 1 INSTALLATION GUIDE CNP-1-50 WARNING The installation must only be performed by a licensed electrician. To prevent death, injury or damage to property, this product must be installed in accordance to National Electrical Code (NFPA70) in the US or Canadian Electrical Code (CSA22.1) in Canada. Disconnect power before installing the product or servicing it.
- Page 2 Mounting tabs FIG 1 FIG 2 Hang Canopy Fixture on mounting plate assembly by hooking hinge on mounting plate hook. Secure by sliding locking plate forward into slot and tightening #6-32 locknut. See Figures 3 and 4. Locking plate Locknut...
- Page 3 INSTALLATION GUIDE CNP-1-50 INSTALLATION INSTRUCTIONS Route wires through center of mounting plate assembly. See Figure 5. Take wire harness assembly and make power connections using approved electrical connector. Connect Red wire to Red wire and Blue wire to Blue wire. See Figure 6. FIG 5 FIG 6 Pack excess wire in center of mounting plate assembly and mount cover using #10 sealing weather resistant...
- Page 4 INSTALLATION GUIDE CNP-1-50 INSTALLATION INSTRUCTIONS - DRIVER BOX Turn off main power. Secure driver box assembly to mounting bracket by tightening mounting screws using ¼” hex driver. See Figure 9. Secure mounting bracket to any vertical wall using #10 sheet metal screws supplied. Insure location allows wire harness to reach low voltage side of power supply box.
