Summary of Contents for Pay Device EP BLACK FH100H-A

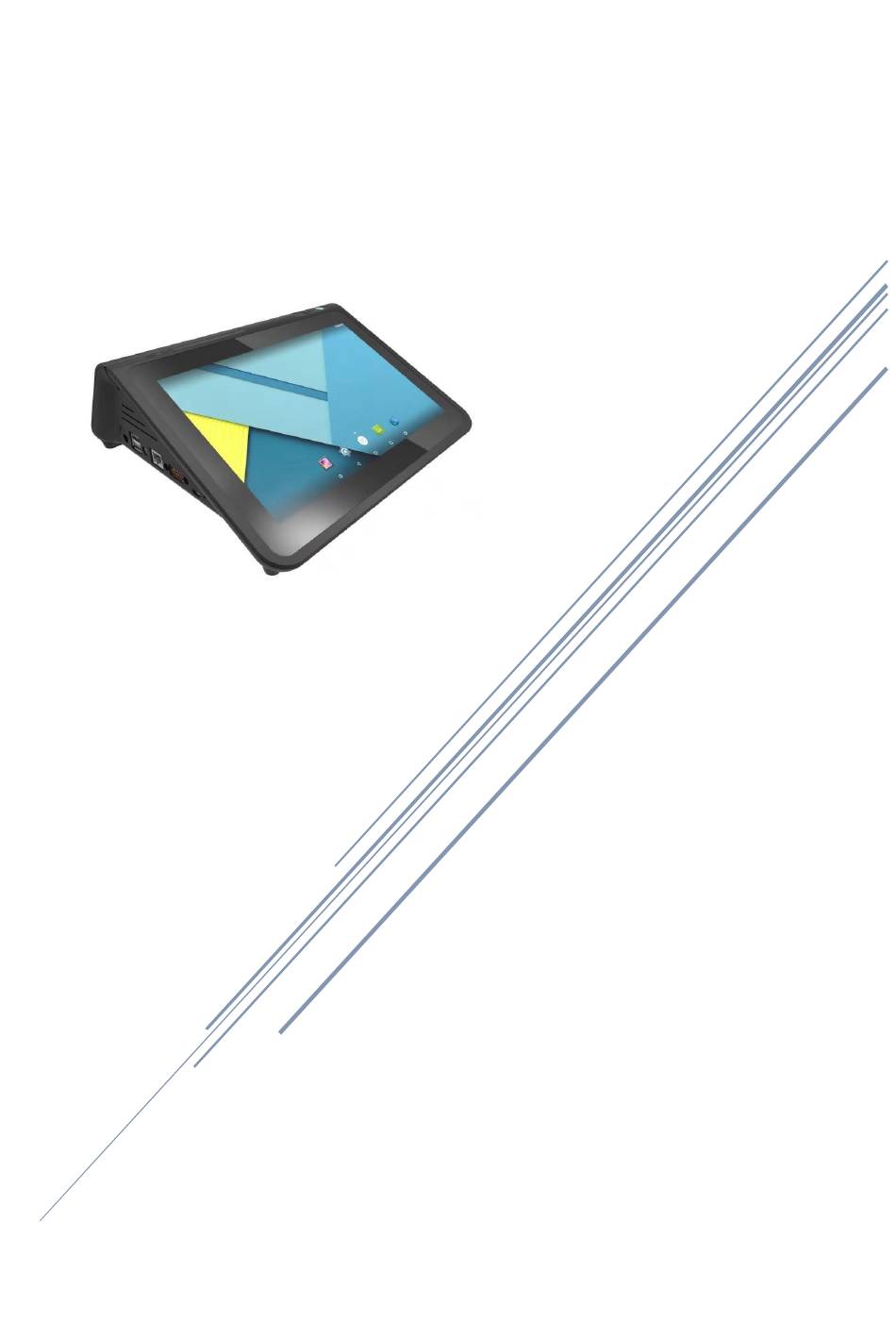

- Page 1 POS TERMINAL USER MANUAL EP BLACK – FH100H-A...
-
Page 2: Table Of Contents
POS Terminal User Manual – EP Black FH100H-A Contents Installation of battery ........................1 Reload printing paper ......................... 4 Interface connection ........................7 Adapter and cash drawer connection ..................8 Start-up interface ......................... 9 System interface ......................... 10 Connect to WIFI .......................... 11... -
Page 3: Installation Of Battery
POS Terminal User Manual – EP Black FH100H-A Installation of battery 1. Take out two screws, press down the middle buckle and open the battery cover upwards. 2. Pull up the pool according to the position shown in the arrow. - Page 4 POS Terminal User Manual – EP Black FH100H-A 3. After removing the battery, it flips 180 degrees horizontally and 180 degrees vertically. The symbol shown in the figure is aligned with the contact point of the battery. 4. After the battery is turned over, press the battery hard, so that the battery periphery is...
- Page 5 POS Terminal User Manual – EP Black FH100H-A 5. Install the battery cover and press the snap button hard. 6. Tighten two screws.
-
Page 6: Reload Printing Paper
POS Terminal User Manual – EP Black FH100H-A Reload printing paper 1. The position of receipt printer 2. Open the printer cover with your hands up. - Page 7 POS Terminal User Manual – EP Black FH100H-A 3. Open the lid of the printer. 4. Put the printing paper in the direction shown in the picture.
- Page 8 POS Terminal User Manual – EP Black FH100H-A 5. After putting the paper, pull the part out of the paper store. 6. Close the lid of the paper cover and press hard on both sides.
-
Page 9: Interface Connection
POS Terminal User Manual – EP Black FH100H-A Interface connection 1. From left to right, there are "power interface", "USB interface", "speaker interface", "network interface", "RS232 interface", "micro USB interface". 2. Power adapter and electronic cash box USB cable connector... -
Page 10: Adapter And Cash Drawer Connection
POS Terminal User Manual – EP Black FH100H-A Adapter and cash drawer connection 1. Connect the power connector to the terminal and the USB connector of the electronic cash box. 2. Press the power switch for 3 seconds to turn on and off. -
Page 11: Start-Up Interface
POS Terminal User Manual – EP Black FH100H-A Start-up interface 1. Main screen boot display 2. Secondary screen start display... -
Page 12: System Interface
POS Terminal User Manual – EP Black FH100H-A System interface Volume down Volume up Return/back Menu Home Setting Program list... -
Page 13: Connect To Wifi
POS Terminal User Manual – EP Black FH100H-A Connect to WIFI 1. Select Settings button 2. Select WI-FI option... - Page 14 POS Terminal User Manual – EP Black FH100H-A 3. Turn on the WIFI switch. 4. Select WIFI signal...
- Page 15 POS Terminal User Manual – EP Black FH100H-A 5. Enter the WIFI password. 6. When you finish, click the connection button. 7. After completing the WIFI connection, click home button to return to the home.
