This 100% plug-and-play kit allows for run and turn operation of the OEM pilot light assemblies ����
1
) Remove bolt securing side cover on right side of
motorcycle.
3) Push intake grill to the side and remove the
10mm bolt securing radiator stay to side cover.
6) Locate the OEM blinker lamp connectors, remove
from retention slot behind shroud, and maneuver
connector down as shown. Depress locking tab and
disconnect. Repeat on both sides of motorcycle.

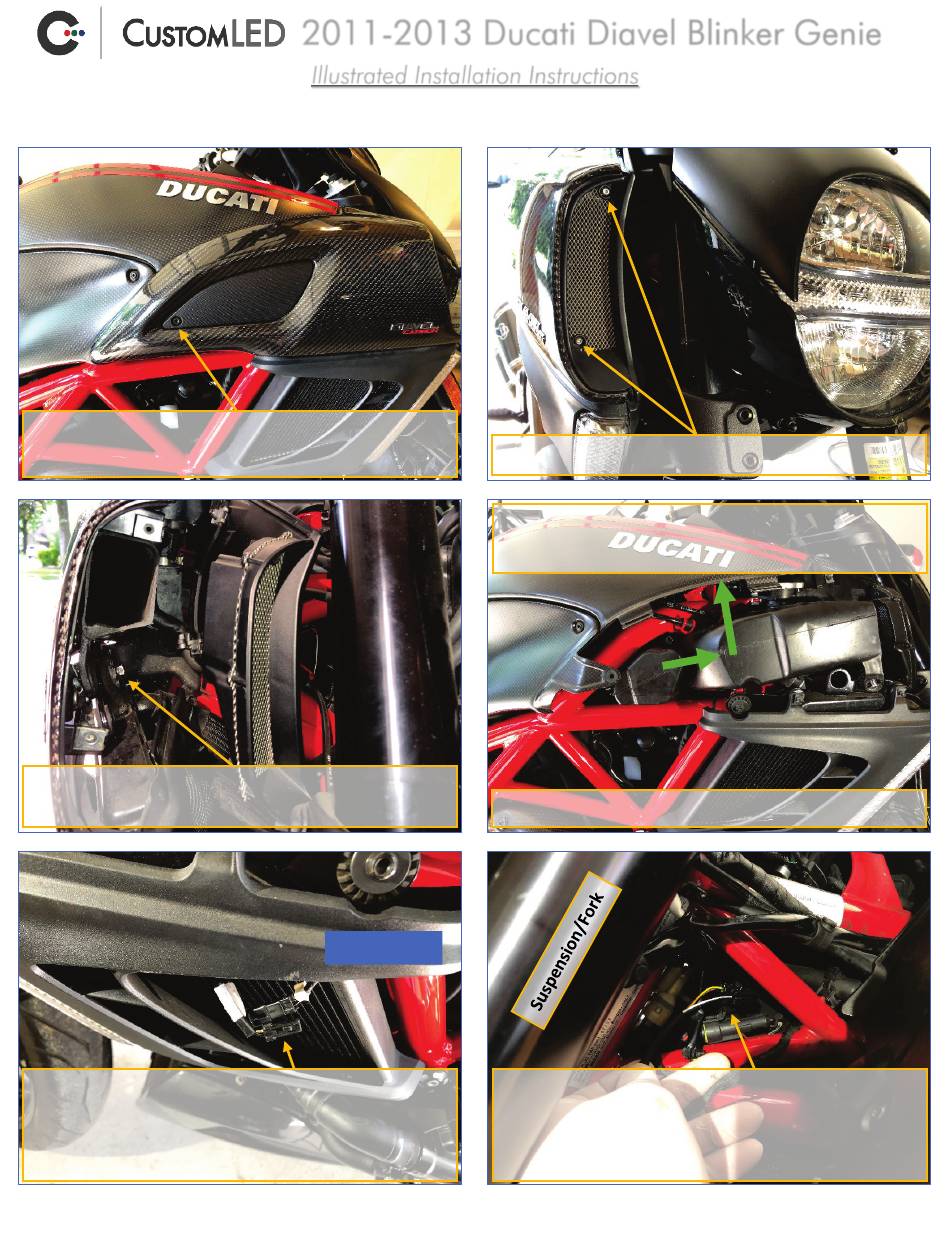

2011-2013 Ducati Diavel Blinker Genie
Illustrated Installation Instructions
Slot behind here
(continued on other side)
2
) Remove two bolts securing intake grill.
4) Remove side cover by sliding forward slightly, and
then lifting straight upward.
5) Repeat procedure on left side of motorcycle.
7) Rout long legs of blinker genie harness from
behind steering neck area down to turn signal
connectors on each side of motorcycle. Route wires
inside of frame. See next image for more details.
