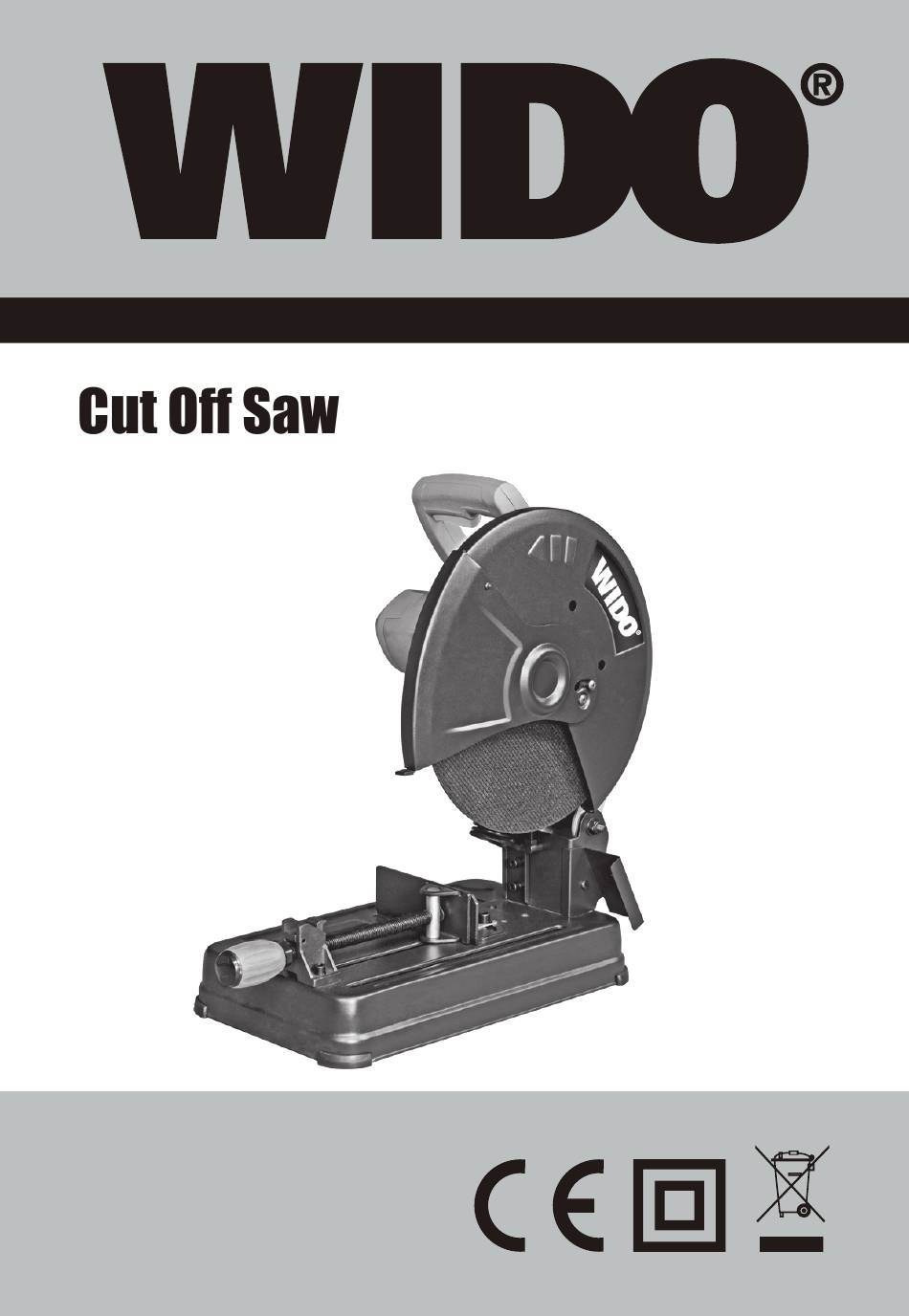

- Page 1 WD030312350 2350W...
- Page 2 WD030312350 Thank you for purchasing a WIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD030312350...
- Page 4 WD030312350...
-
Page 5: Component List
2350W CUT OFF SAW COMPONENT LIST 1) Spindle handle 2) Quick-release button 3) Clamping spindle 4) Angle stop 5) Cutting disc 6) Moving guard 7) On/off switch 8) Handle 9) Cutting disc guard 10) Spark guard 11) Lock bolt of the angle stop 12) Base plate 13) Transport handle 14) Transport safety-lock... -
Page 6: General Power Tool Safety Warnings
2350W CUT OFF SAW GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 7 2350W CUT OFF SAW f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 8 2350W CUT OFF SAW there is danger of kickback, when the cutting disc becomes wedged in the workpiece. 9) Operate the power tool only when the work area to the workpiece is clear of any adjusting tools, metal chips, etc. Small pieces of metal or other objects that come in contact with the rotating cutting disc can strike the operator with high speed.
-
Page 9: Double Insulation
2350W CUT OFF SAW flammable materials in close vicinity. Sparking occurs when cutting metal. 28) When an extension cord is required you must ensure it has the correct ampere rating for your power tool and that it is in a safe electrical condition. Fully unwind extension cords to avoid potential overheating. -
Page 10: Technical Data
2350W CUT OFF SAW TECHNICAL DATA Model WD030312350 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz 50-60Hz Power input 2350W 2350W No load speed 3800/min 3800/min Cutting disc diameter, max Ф14″ Ф 355mm Cutting disc bore diameter Ф 25.4mm Ф1″ Cutting disc width, max 1/8″... - Page 11 2350W CUT OFF SAW OPERATING INSTRUCTIONS Note: Before using the power tool, read the instruction manual carefully. 1. Intended use The machine is intended for stationary use with cutting disc to perform lengthways and crossways straight cuts and miter angles to 45° in metal materials without the use of water. 2.
- Page 12 2350W CUT OFF SAW angle stop with appropriate markings. The 0° and 45° position are set at the respective end stop. 1) Loosen the locking bolts for the angle stop with the supplied hex key. 2) Adjust the desired angle and firmly tighten both locking bolts again (See Fig 4). 9.
- Page 13 2350W CUT OFF SAW a) Bring the power tool into the working position. b) Swing back the moving guard to the stop. c) Turn hexagon bolt with the provided hex key and at the same time press the spindle lock until it engages (See Fig 10).
-
Page 14: Troubleshooting
2350W CUT OFF SAW 5) Slowly guide the power tool arm upward and tighten the lock nut. 16. Aligning the angle display To ensure precise cuts, the basic adjustment of the power tool must be checked and adjusted as necessary after intensive use. 1) Bring the machine into the transport position. -
Page 15: Environment Protection
2350W CUT OFF SAW ENVIRONMENT PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. -
Page 16: Explosive View
2350W CUT OFF SAW EXPLOSIVE VIEW... -
Page 17: Part List
2350W CUT OFF SAW PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Spindle handle cap Rear cover Screw Brush spring Spring washer Carbon brush Washer Screw Spindle handle Brush holder Clamping spindle Screw Rubber foot Housing Base plate Bearing sleeve Adjusting fence Bearing Dental washer Stator... - Page 18 2350W CUT OFF SAW Switch trigger Screw Upper handle Cable protector Screw Cable and plug Carry handle Cable clamp Screw Spring Screw...
- Page 19 WD030312350...
- Page 20 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
