OWNER'S MANUAL
WHEELED LEAF VACUUM
MODEL: STWV58L
IMPORTANT! IT IS ESSENTIAL THAT YOU READ THE INSTRUCTIONS IN THIS
MANUAL BEFORE ASSEMBLING, OPERATING AND MAINTAINING THIS PRODUCT.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STWV58L and is the answer not in the manual?

Questions and answers

Summary of Contents for Sherpa STWV58L

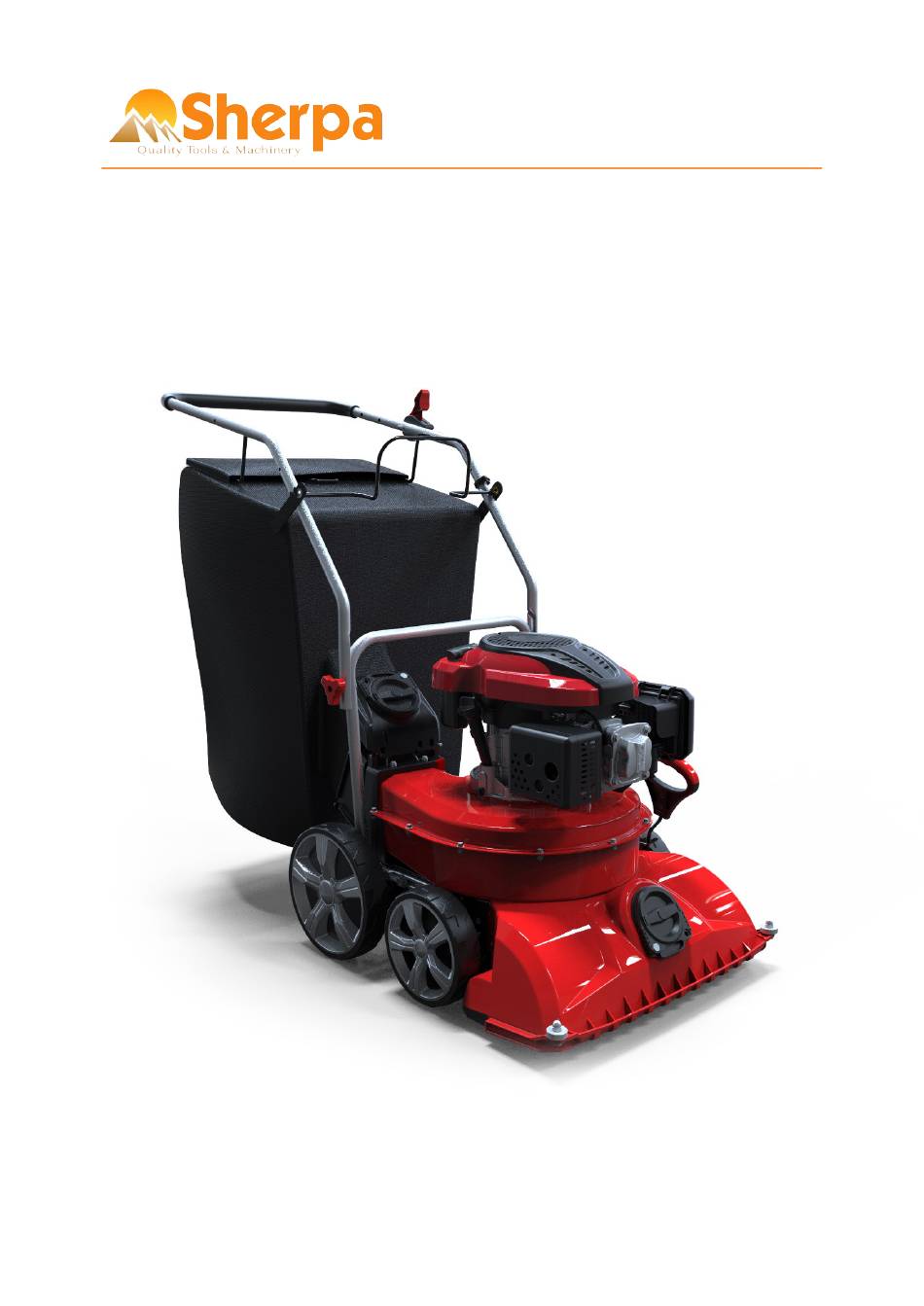

  • Page 1 OWNER’S MANUAL WHEELED LEAF VACUUM MODEL: STWV58L IMPORTANT! IT IS ESSENTIAL THAT YOU READ THE INSTRUCTIONS IN THIS MANUAL BEFORE ASSEMBLING, OPERATING AND MAINTAINING THIS PRODUCT.

  • Page 3: Included Accessories

    Included accessories Accessories Collection Bag Fixing Bracket 1） 2） Collection Bag 3） Auxiliary Hose - Optional Extra Included With Hose Kit 4） Suction Port Baffle - Optional Extra Included With Hose Kit 5） Hose Bracket 6） Guide Wheel Warning: For your own safety, please read this manual before using this machine for the first time.
  • Page 4 WARNING: If any of the labels are damaged or missing, replace them before operating the equipment. Safety and specification introduction 1）Product safety warning General security warning： WARNING: When using petrol tools, always follow basic safety precautions (including the following) to reduce the risk of serious personal injury and/or equipment damage.
  • Page 5 2）Warning Label A.1 Read the operating manual. A.2 Keep bystanders at a safe distance. A.3 Do not touch the rotating parts while operating. A.4 Toxic gases; do not operate inside the house. A.5 Please wear protective gloves; pay more attention to your hands and feet to avoid injury.
  • Page 6 Assembly instructions Assembly is required before use. Please understand the name and function of each part on the second page of this manual, and then assemble it with the installation steps described in the following figure. Note: The shape of the part contained in the assembly diagram is not inconsistent with the actual part shape.
  • Page 7 — Assembly step 2）Collection bag fixing bracket assembly Insert the left and right ends of the collection bag fixing bracket into the corresponding four holes on the upper handle bar assembly. Assembly guide Fig. Assembly completion diagram Fig. Assembly step 3）Hose bracket assembly -Insert the left and right ends of the hose bracket into the corresponding two holes on the upper grab bar assembly.
  • Page 8 Baffle Hanging Board Catch Fig.10-4 Fig.10-5 Press the baffle and open the rear cover Fig.10-6 Insert back cover bracket Fig.10-7 Insert in place Fig.10-8 Installation completion diagram...
  • Page 9 △ — Assembly step 5）Auxiliary hose assembly Open the cover on the suction port, align the end of the hose into the interface fixing bracket, and tighten it to the right according to the marking indication on the interface fixing bracket. Fig.12-1 Open the cover Fig.12-2...
  • Page 10 Fig.b-2 Right guide wheel installation completion diagram Fig.b-3 Left guide wheel installation completion diagram 5- Butterfly Nut 6- Pulley 7- Washer Fig.b-1 8- Fixed Bolt Product specification Wheeled Vacuum Specification Hose Kit Specification Machine Model DY580-159P-00 Hose Length 2500 mm Handle Length Telescopic 730 - 990 mm Engine...
  • Page 11 Instructions for use Warning: Before reading the instructions for use, make sure you understand the above and keep it in mind. 1） Start the machine Before starting, please check if the accessories you have assembled are completely fixed. 1. Make sure oil level is correct. Check oil level on oil dipstick and fill accordingly. (See below and engine manual for full instructions) 2.
  • Page 12 2） Adjust the height of the suction inlet Pull the height adjustment handle out of the gear position slot and provide the height adjustment range according to the terrain and type of debris you are collecting. Select one height position from the 5 positions (See Fig 19-1, 2, 3). Lowest position Highest position Height up...
  • Page 13 Fig.31 Using a hose Blow function 1. Close the rear cover（see fig 33-1, 2, 3） Rear cover baffle locks the rear cover Rear cover baffle clip Fig.33-1 Close the rear cover Fig.33-2 Close completely ●Note: When using this function, please turn off the machine. ●Note: When fully closed, check that the rear panel bezel securely locks the rear cover.
  • Page 14 Note: Ensure the machine is on the highest operating height setting, and they front is clear of any debris for maximum air flow. Fig. 34-1 Open the cover Fig. Using a hose Fig. 34-2 Fixed interface Start the machine，Point the hose mouth at the trash。 （see fig 35） Telescopic Handle 1.
  • Page 15 • Note: Do not use the hose head around liquids, fire, and hazardous gases. • Note: Do not try to collect debris that is larger than the hose port. • Note: When the hose is clogged, stop the machine and then maintain it. •...

  • Page 16: Engine Description

    Fig.37-4 Fig.37-5 Fig.37-6 4. Collection bag precautions ●Note When encountering backflow, please check if the venting hole of the collecting bag is blocked; Whether the collection bag is full; Stop the machine and check if the collection bag chute is blocked. ●Note: When loading and unloading the collection bag, please make sure the machine has been turned off.
  • Page 17 Machine cleaning and storage Proper cleaning and storage are critical to keeping your machine trouble-free and in good condition. 1）Cleaning 1. Cleaning machine ●Wear thick gloves to protect your hands from the blade. Cleaning engine Cleaning collection bag ●Manually clean the engine and take care to prevent water from entering ●Remove the collection bag from the machine and wash it with a garden the air filter.
  • Page 18 Make sure the engine is off before starting any maintenance or repairs. 4）Routine maintenance 1. Oil maintenance Before each use of the machine, check the oil level to see if it is between the upper and lower marks on the oil gauge (see Fig 39-2). The new machine will take approximately 5 hours to achieve optimal performance.
  • Page 19 Maintenance planning cycle Cycle Before each After each Every 10 Every 25 Before Remarks Date hours hours storage Category Or every quarter Check parts ● ● Cleaning collection bag ● ● ● Cleaning machine ● ● Check/replace belt Replace according to the degree ●Check Machine of damage...

  • Page 20: Troubleshooting And Solutions

    Troubleshooting and solutions Problem Possible Cause Corrective Action Engine cannot start Throttle wrench is not in the Move the throttle choke to the correct position correct position There is no fuel in the fuel tank Add the same amount of petrol according to the fuel volume provided in the parameter table of this manual (page 11).

  • Page 21: Environmental Protection

    push wheels The ground is uneven Adjust the height to the appropriate level The lawn is very lush Adjust the height to the appropriate level Collection bag full Empty collection bag Weak or no auxiliary The inside of the hose is Remove hose and clear any blockage hose suction blocked...

  • Page 22: Declaration Of Conformity

    Declaration of conformity EC- Declaration of Conformity Herewith we, Mower Magic Ltd. Magic House, Station Road, North Hykeham, Lincoln, LN6 9AL. declare that the following Appliance complies with the appropriate basic safety and health requirements of the EC Directives (see item 4) based on its design and type, as brought into circulation by us.

  • Page 23: Limited Warranty

    Buyer’s remedies with respect to this Warranty are limited to the repair or replacement of defective parts after Sherpa Tools inspection and verification of a covered defect. Any Product to be considered for repair or replacement must be returned by Buyer to a duly authorised Sherpa Tools retail store or service centre.
  • Page 24 Sherpa Tools Ltd. Wheeled Vacuum STWV58L If you experience any problems with this product, please do not return to the store. Contact Sherpa Tools direct on our UK helpline. UK Helpline: 01522 283 020 www.sherpatools.co.uk...
