IMPORTANT SAFEGUARDS

When using electrical equipment, the following safety precautions should always be taken:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
To avoid the possibility of electrical shock, turn off power supply before
installation or servicing.
2.
Product must be installed in accordance with NEC and your local
electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
3.
Ensure the mounting surface is capable of supporting the weight of the
luminaire before installation.
4.
Due to the weight of the luminaire, as many as 3 people may be necessary
during TANDEM installation.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

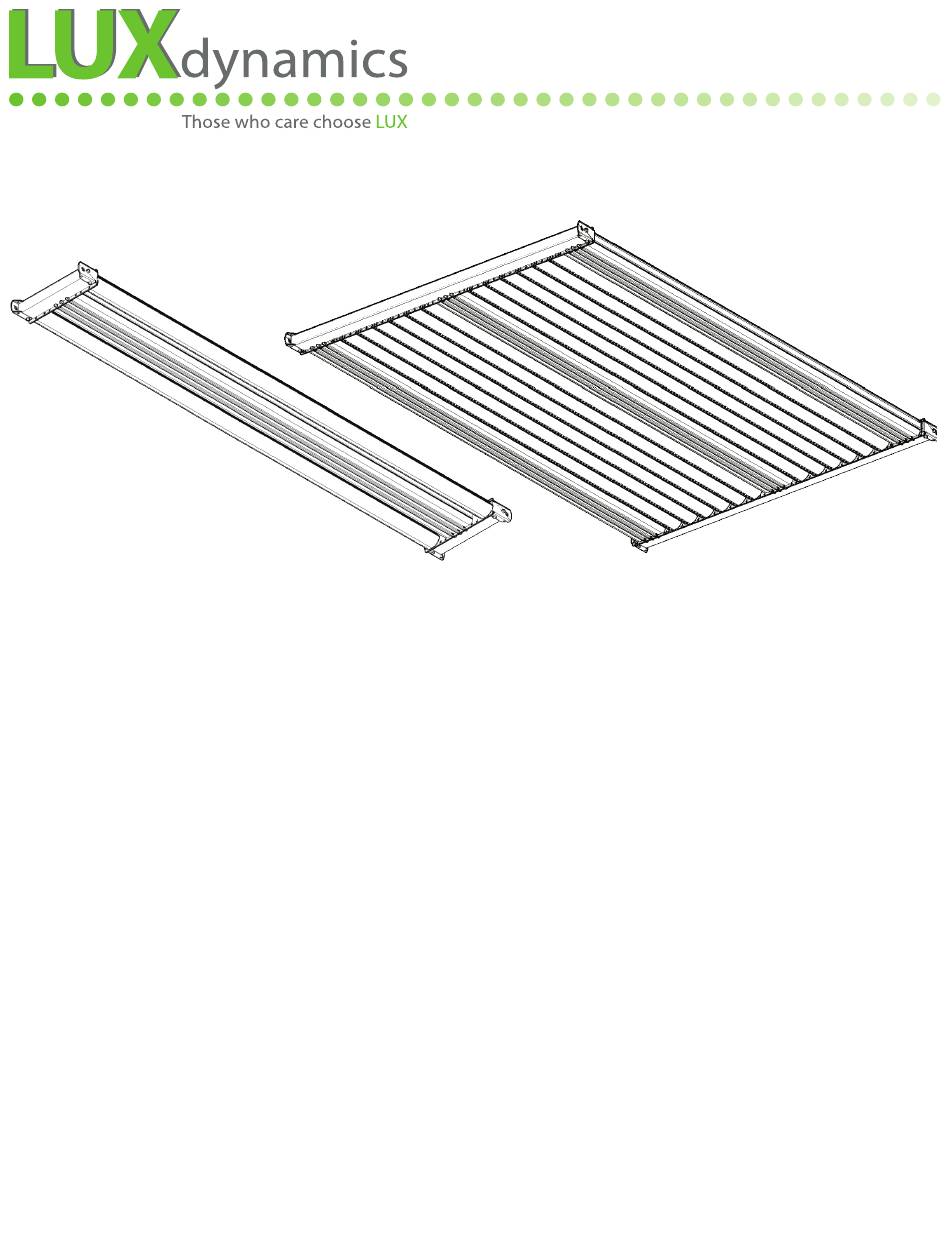

Installation Instructions

IK10 and BAR
04 May 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IK10 and is the answer not in the manual?

Questions and answers

Summary of Contents for LUX dynamics IK10

  • Page 1: Installation Instructions

    IK10 and BAR Installation Instructions IMPORTANT SAFEGUARDS When using electrical equipment, the following safety precautions should always be taken: READ AND FOLLOW ALL SAFETY INSTRUCTIONS To avoid the possibility of electrical shock, turn off power supply before installation or servicing.
  • Page 2 To Install Aircraft Cable Mounting for use with options: Hx-xY H4Px Thread the unfinished end of the aircraft Pass the unfinished end of the aircraft cable through one end of AC cable cable around the mounting point. friction lock Snap hooks through the hanging Thread end of cable through other brakets on the end of each fixture. mouth of AC cable friction lock. Ensure the fixture is hanging level before proceeding.
  • Page 3 To Install Surface Mounting for use with options: Fasten the fixture directly to the Ensure the fixture is firmly mounted, mounting surface through the with all hardware flush to the mounting electronics channel. surface, before relpacing lid and Please note, this can only be done with closing the electronics channel. BOTTOM ACCESS option.
  • Page 4 Electrical Connections Make the following Electrical Connections: Connect the green or green/yellow ground lead to the green wire position of the terminal block. Connect the black fixture lead to the voltage supply position or Hot 1 (for 208/240V wiring). b1. If applicable, connect the Red fixture lead to the voltage supply position or Hot 2 (for multiple-switch installations). Connect the white fixture lead to the neutral supply position or Hot 2 (for 208/240V wiring). Connect the purple/blue dimming positive lead to the supply dimming positive lead.
