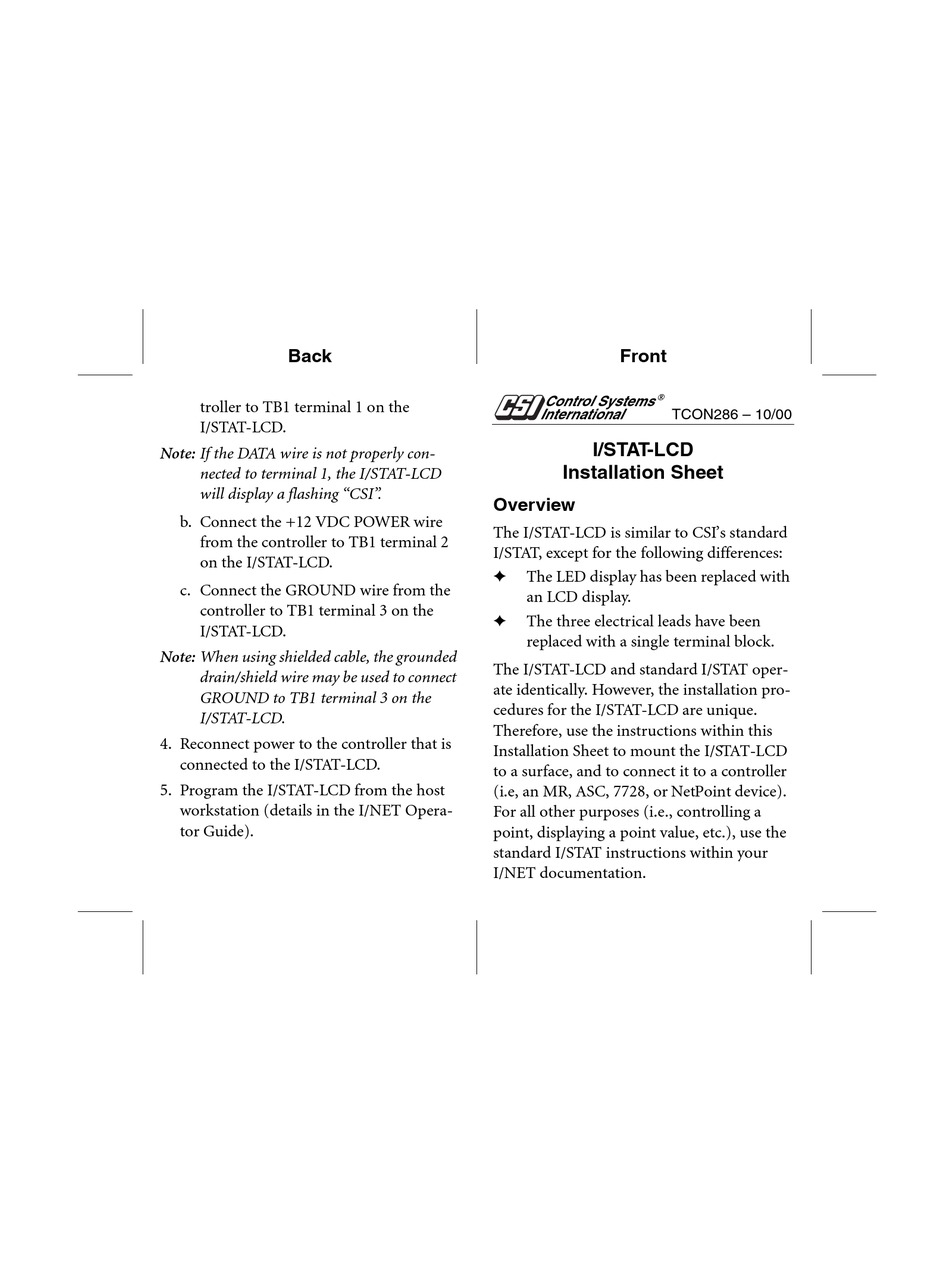

CSI I/STAT-LCD Installation Sheet

Back
troller to TB1 terminal 1 on the
I/STAT-LCD.
Note: If the DATA wire is not properly con-
nected to terminal 1, the I/STAT-LCD
will display a flashing "CSI".
b. Connect the +12 VDC POWER wire
from the controller to TB1 terminal 2
on the I/STAT-LCD.
c. Connect the GROUND wire from the
controller to TB1 terminal 3 on the
I/STAT-LCD.
Note: When using shielded cable, the grounded
drain/shield wire may be used to connect
GROUND to TB1 terminal 3 on the
I/STAT-LCD.
4. Reconnect power to the controller that is
connected to the I/STAT-LCD.
5. Program the I/STAT-LCD from the host
workstation (details in the I/NET Opera-
tor Guide).
Front

Control Systems
International
TCON286 – 10/00
I/STAT-LCD
Installation Sheet
Overview
The I/STAT-LCD is similar to CSI's standard
I/STAT, except for the following differences:
✦
The LED display has been replaced with
an LCD display.
✦
The three electrical leads have been
replaced with a single terminal block.
The I/STAT-LCD and standard I/STAT oper-
ate identically. However, the installation pro-
cedures for the I/STAT-LCD are unique.
Therefore, use the instructions within this
Installation Sheet to mount the I/STAT-LCD
to a surface, and to connect it to a controller
(i.e, an MR, ASC, 7728, or NetPoint device).
For all other purposes (i.e., controlling a
point, displaying a point value, etc.), use the
standard I/STAT instructions within your
I/NET documentation.
