Summary of Contents for Freshcup Freshcup

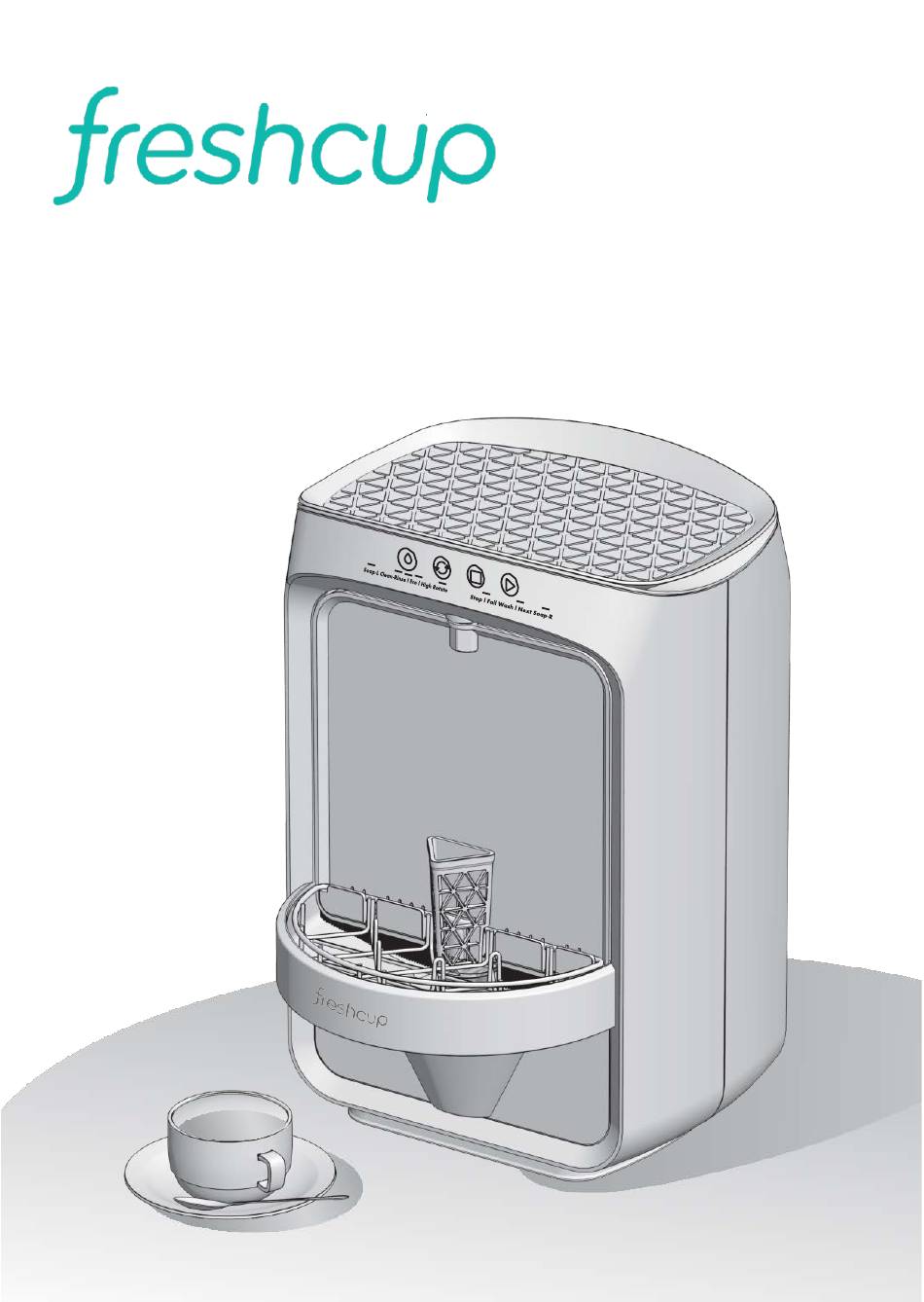

- Page 1 User Manual...
- Page 3 Contents Safety Instructions freshcup is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been instructed satisfactorily. Washed items should be positioned onto the dish rack and into the cutlery basket without stacking and/or overlapping to ensure proper cleaning.
- Page 4 Introduction freshcup Thank you for choosing as the solution for a constant supply of clean cups at home or at work. freshcup is a brand-new product developed in Israel following eight years of research and development by top experts in the fields of engineering, chemistry, and electronics.
-
Page 5: Table Of Contents
Contents Contents freshcup Description ....................1 Operation ........................3 Maintenance .......................8 Detecting & Handling Malfunctions ................11 Installation ........................ 12... -
Page 6: Freshcup Description
Description freshcup Description Drying Tray Control Panel Revolving Partition Cutlery Basket Dish Rack... - Page 7 Description Water Entry Main Switch and Power Cable Connection Drain Pipe Connection...
-
Page 8: Operation
Operation First Time Operation: Press the main switch at the rear to the ON position (Position 1). The switch light turns on. freshcup will carry out a few rinse cycles automatically. Remove the machine’s drying tray. Insert the yellow cartridge into the yellow... - Page 9 Operation freshcup Placing Dishes in the Cups and Glasses • Remove solids (lemon slices, cigarette butts, paper, etc.) from the mug/cup/glass. • Rinse out black coffee grinds or other heavy residues. • Invert the dirty mug/cup/glass, and place it mouth down on the dish rack.
- Page 10 Operation Personal Drinking Bottles Open the bottle top/cap and place it neck down on the dish rack. Special High Fence Dish Rack For high glasses, baby bottles and personal drinking bottles, a special high fence dish rack is available for purchase. It is recommended to use the special rack for such items, to keep them from toppling over during the wash cycle.
- Page 11 Operation freshcup This is the default operating mode. Use this mode to wash a cup that has been standing dirty for less than 6 hours, and is without traces of grease freshcup (soup/cocoa). The “Eco” mode includes hot water and steam.
- Page 12 Once you have selected the operating mode (or wish to use the default “Eco” mode), press the “Wash” button on the right. The light above the selected operating mode will flash intermittently throughout the freshcup complete cleaning cycle, indicating that is running.
-
Page 13: Maintenance
Soap-R Removing the Washed Items At the end of each cycle, the partition will rotate automatically, allowing you to freshcup remove the clean items from the Recommendation: Do not leave items dirty overnight or for prolonged periods. Clean them in the “Rinse” mode as soon as they are used, thus saving on water and detergent. - Page 14 In order to refill the yellow (right) detergent container, follow these steps: Remove all items from the drying tray and then remove the drying tray itself. Should there be freshcup a cabinet above the that interferes with the insertion of the detergent, gently move the machine forward so as to allow the cartridge to be inserted (return the machine to its place after refilling the detergent).
- Page 15 Maintenance freshcup Reset the freshcup After completion of the detergent refilling procedure, switch the off using the main switch at the rear. Wait until the blue lights on the control panel turn off. freshcup Switch on the using the main switch. The machine will perform a few cycles auromatically.
-
Page 16: Detecting & Handling Malfunctions
Detecting & Handling Malfunctions Note: freshcup Avoid cleaning the 's exterior with running water – The machine exterior should be cleaned with a moist rag and clean water only. Do not attempt to repair the machine yourself! Our service personnel are at your service at all times under the warranty or under your extended service contract. -
Page 17: Installation
Installation Sprinkler Stuck/Caught Turn the machine off. Wait for the control panel lights to turn off. Switch the freshcup machine on again using the switch at the rear. The will carry out a number of rinse cycles. Remove the cutlery basket and the dish rack. - Page 18 Installation Installation requirements • Power supply – An electrical outlet at a maximum distance of 1.5 meters from freshcup the location of the • Water supply – Minimum water pressure of 101 kPa (1 Bar) and maximum water pressure of 607 kPa (6 Bar) at a maximum distance of 1.5 meters from...
- Page 19 Install a coupling adapter for the drain outlet hose at the point where the sink connects with the siphon Ensure that the drainage hose is not bent/kinked and that it is at a continuous downward slope throughout its route. Bends/kinks may cause obstructions and freshcup flooding both within and outside the freshcup Technical Data...
