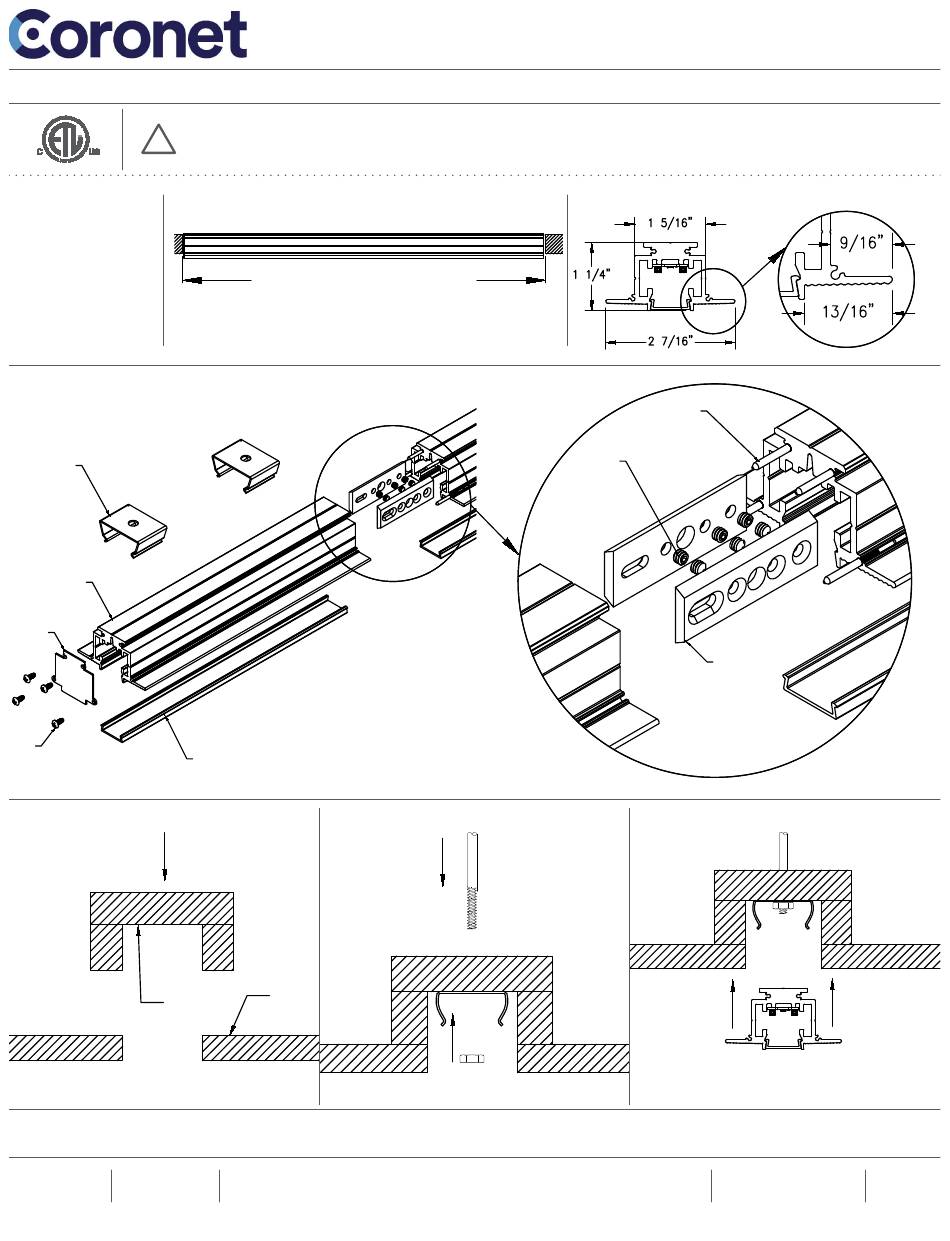

Coronet RUSH NT Installation Manual

INSTALLATION GUIDE-RECESSED
Risk of fire and electrical shock. In accordance with national local building and electrical codes, CORONET lighting fixtures must
!
be installed by a qualified electrician. Disconnect power at electrical panel before servicing.
PART LIST
A-4-40 Screw
B-End Plate
C-Extrusion
D-Optional Support Bracket
E-Lens
F-Connection Bracket
G-8-32 Set Screw
H-Alignment Pin
D
C
B
A
E
1 Option 1
BLOCKING
BY OTHERS
For use of the optional support bracket to mount the fixture, block in the fixture
using the ceiling cutout dimensions as a guide. Material/blocking by others.
Note: Leave a hole for the power feed cable.
CORONET, Inc.
T 973 345 7660
55 Shepherds Lane
F 973 345 8705
Totowa, NJ 07512
SIDE VIEW
CEILING CUT OUT
PLEASE CONSULT FACTORY SHOP DRAWINGS
FOR CEILING CUT OUT DIMENSIONS
EXPLODED VIEWS ARE TO SHOW DETAIL ONLY, FIXTURES ARE SHIPPED PRE-ASSEMBLED.
2
CEILING
Use a machine screw and nut to secure the support bracket to the frame (hardware
INDIVIDUAL FIXTURES ARE NOT INTENDED FOR CONTINUOUS RUNS.
ADDITIONAL SUPPORTS TO THE STRUCTURE MAY BE REQUIRED.
*CHECK WITH YOUR LOCAL BUILDING CODE FOR THOSE REQUIREMENTS.
CORONET, Inc. reserves the right to make any design changes for continuous improvement which will not
affect the overall appearance or performance. All fixtures to be wired by a certified electrician only.
CROSS SECTION VIEW
EXPLODED VIEW
by others).
H
G
F
3
Raise the fixture upward until it snaps into the support bracket.
WWW.CORONETLED.COM
RUSH NT
1/2
