Sternberg Lighting XRLED 1843 Installation Instructions

XRLED 1843 CONVERSION KIT
WARNING: TO AVOID FIRE, SHOCK OR DEATH, TURN OFF AND LOCKOUT POWER BEFORE PERFORMING ANY MAINTENANCE.
CAUTION: THIS FIXTURE MUST BE WIRED IN ACCORDANCE WITH THE NATIONAL ELECTRIC CODE AND ALL APPLICABLE LOCAL
CODES. PROPER GROUNDING IS REQUIRED. ALL WORK SHOULD BE DONE BY A QUALIFIED ELECTRICIAN.

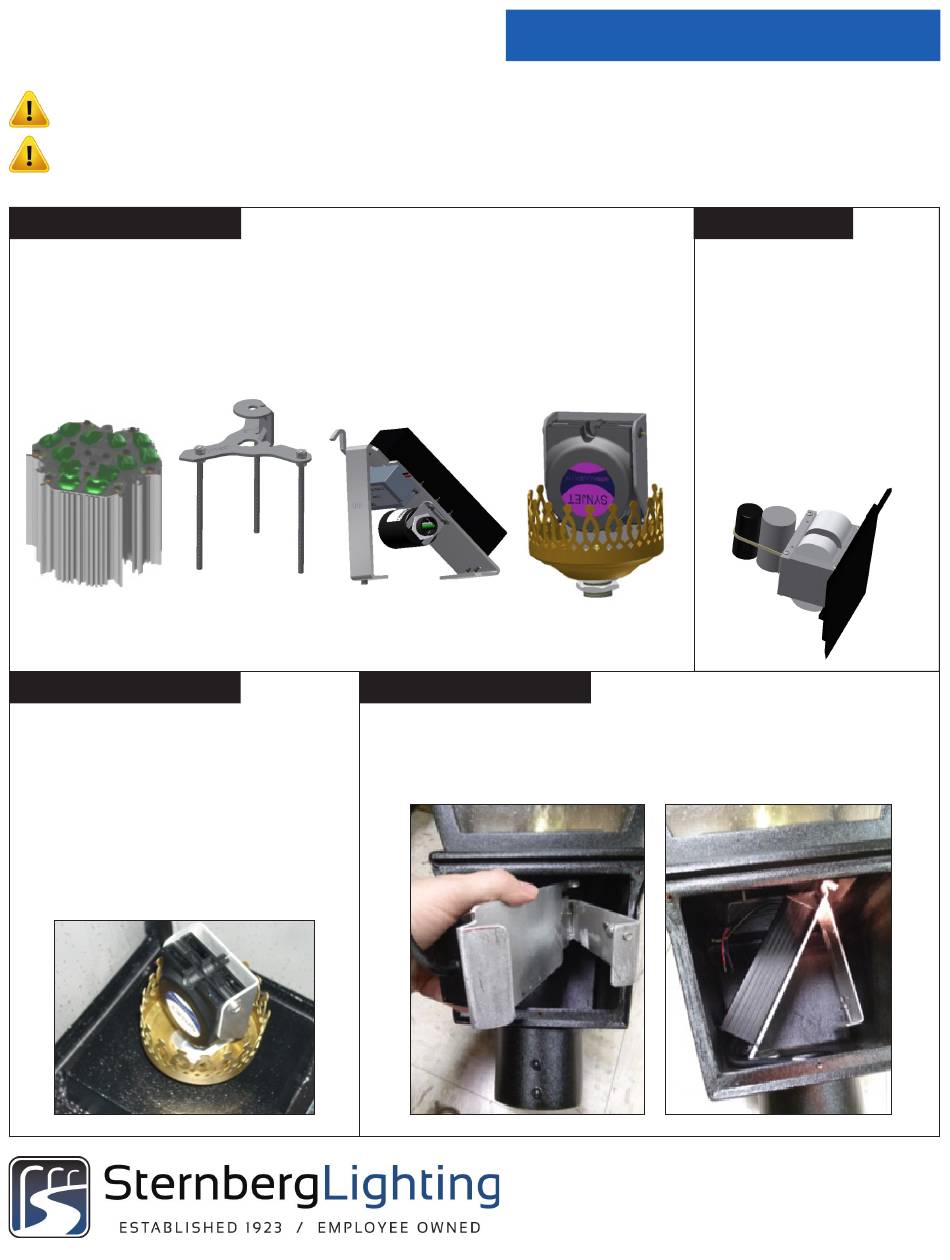

STEP 1
Unpack the 1843-XRLED CONVERSION KIT. Handle with care. Do not touch the optics.
Recycle the empty packaging.
LED Module LED Bracket Assembly
STEP 3
For 2100mA Driver with Synjet Only
Open roof and remove all reflectors and sockets.
Remove bottom hex nut and lock washer from
Synjetassembly and insert pipe nipple and leads
through the hole in the center of the fitter and
into fitter chamber. Tighten in place with nut and
lockwasher.
NOTE: If the hole in the center of the fitter is not
present, it may be added using a 21/32", 11/16",
or 17mm drill.
Driver Assembly Bracket
STEP 4
Lean the bracket forward toward the fitter opening to allow the locking tab to enter the right
side of the fitter where the roof is lower. Slide the bracket to the left and twist to engage
the driver against the front left wall and tighten the thumb screw to restrict movement of
the assembly.
INSTALLATION INSTRUCTIONS
SYNJET Assembly
(For 2100mA Driver)
555 Lawrence Ave., Roselle, IL 60172
6/14 STERNBERG LIGHTING. ALL RIGHTS RESERVED. PRINTED IN THE USA.
STEP 2
Remove the mounting screws
(retain them) on the fitter door
and pull out the door and at-
tached ballast. Disconnect supply
lines and fixture leads. Detach the
ballast from the door by remov-
ing two mounting screws. The
ballast will not be required for the
conversion.
Note: Most 250W HID configura-
tions have the ballast in a remote
location. These ballasts should
also be removed.
