Summary of Contents for ShangHai Sunray Technology SRWF-RFScanner-SDK

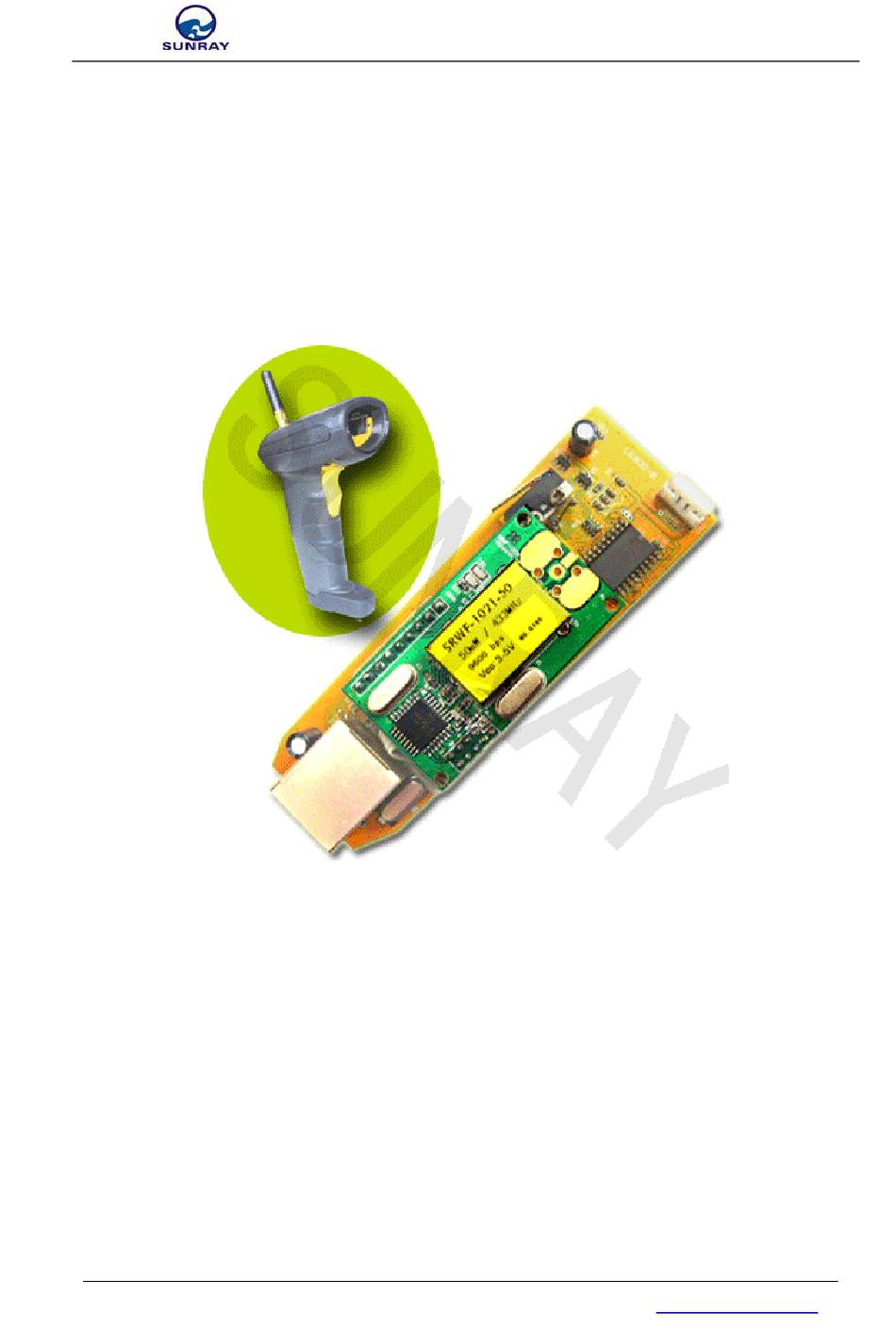

- Page 1 ShangHai Sunray Technology Co.,Ltd SRWF-RFScanner-SDK Transceiver Data Module Of Wireless scanner user manual ShangHai Sunray Technology Co.,Ltd China. Shanghai Tel：86-21-38953738/ 86-21-50275250 Fax：86-21-50270187 http://www.51sunray.com Page 1 of 4...
- Page 2 ShangHai Sunray Technology Co.,Ltd I. Introduction SRWF-RFScanner-SDK transceiver data module of wireless scanner transmit the coding data from scanner by wireless to wireless receiver terminal. It has wireless transmit、 carrier detect、 verification、 low voltage alarm, guaranteeing the convenience and veracity of data transmit.
- Page 3 Reliable transmit 400m distance IV. Interface Definition SRWF-RFScanner-SDK supplies 6-pin connector (J1) for scanner and 8-pin connector (J2) for indicator (shown in Figure1). The definitions and connection methods are shown in Table 1 and Table 2 , respectively. Fig.1 Connection method for scanner Table 1.
- Page 4 ShangHai Sunray Technology Co.,Ltd Battery - Vcc - Vcc - Bell + Bell + Bell + Bell - Bell - Bell - Arouse Switch Waken Scanner Switch Arouse Switch Switch Twinkle when LED + LED + module is in transmit LED- V .
