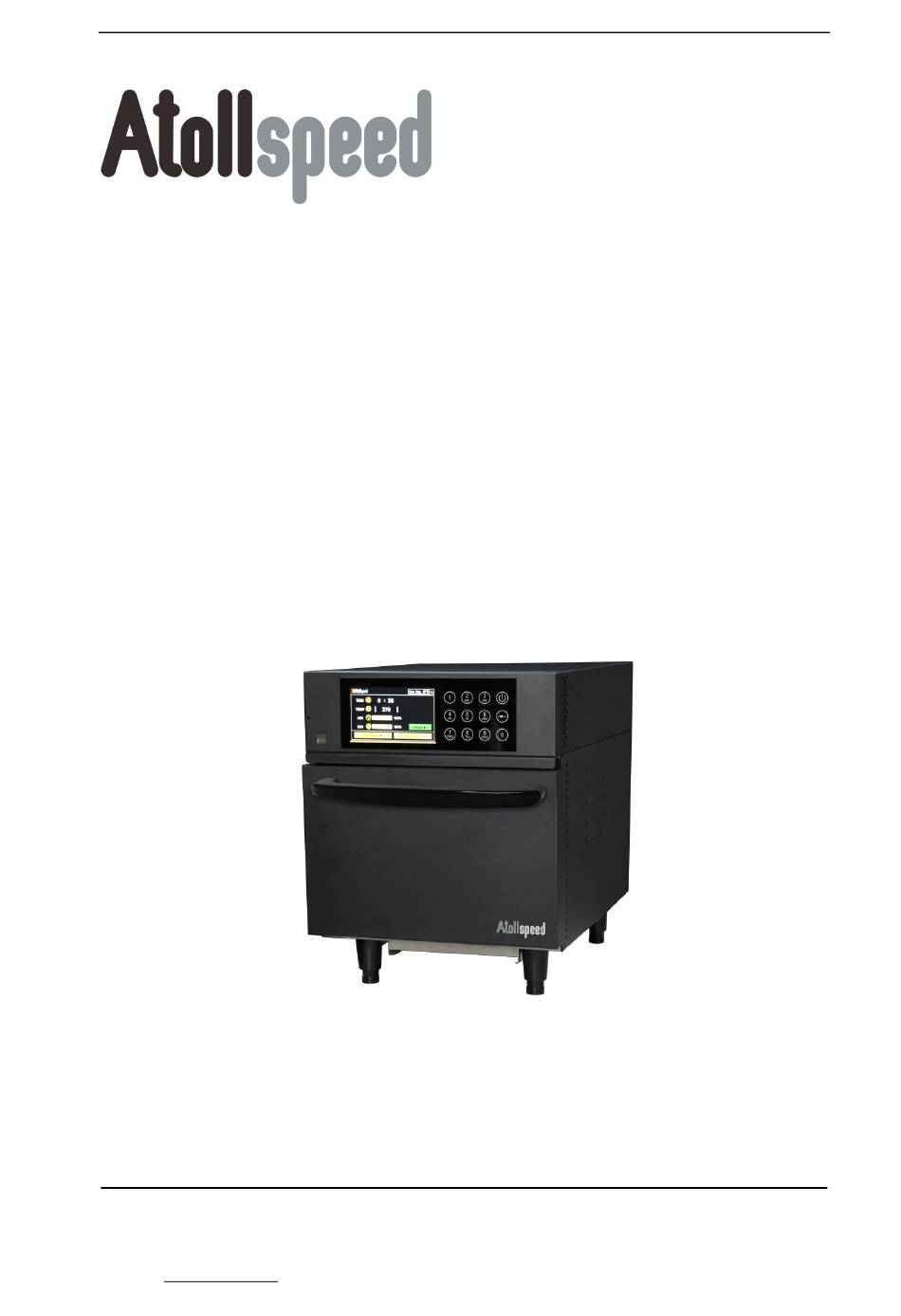

Atollspeed Touch Screen Series – Original Instructions
OPERATING INSTRUCTIONS
CAUTION: Read the instructions before using the machine.
Kolb Huizhou Ltd.
Shatou Industrial Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province,
China PC: 516123 Phone: + 86 0752 6111 203 Fax: +86 0752 6111 201
Website: www.kolbcn.com
Service Hotline in China: 400 999 4322
Touch Screen Series
Atollspeed Nano2 K02-3004T1S
Atollspeed 300H
Atollspeed 400H
Mail: info@kolbcn.com
K02-3003T1S
K02-4003T1S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touch Screen Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Kolb Touch Screen Series

  • Page 1 Atollspeed Touch Screen Series – Original Instructions Touch Screen Series Atollspeed Nano2 K02-3004T1S Atollspeed 300H K02-3003T1S Atollspeed 400H K02-4003T1S OPERATING INSTRUCTIONS CAUTION: Read the instructions before using the machine. Kolb Huizhou Ltd. Shatou Industrial Area, Yuanzhou Town, Boluo County, Huizhou City, Guangdong Province, China PC: 516123 Phone: + 86 0752 6111 203 Fax: +86 0752 6111 201 Website: www.kolbcn.com...

  • Page 2: Table Of Contents

    Atollspeed Touch Screen Series – Original Instructions Contents 1. Certificate and Drawings ..................3 2. Introduction ....................... 12 3. Important Safety Instruction ................14 4. Oven Installation ....................16 4.1 Electric connection ......................16 4.2 Start the oven for the first time ..................17 5.

  • Page 3: Certificate And Drawings

    Atollspeed Touch Screen Series – Original Instructions 1. Certificate and Drawings This document is property of Kolb Huizhou Ltd.
  • Page 4 Atollspeed Touch Screen Series – Original Instructions This document is property of Kolb Huizhou Ltd.
  • Page 5 Atollspeed Touch Screen Series – Original Instructions This document is property of Kolb Huizhou Ltd.
  • Page 6 Atollspeed Touch Screen Series – Original Instructions This document is property of Kolb Huizhou Ltd.
  • Page 7 Atollspeed Touch Screen Series – Original Instructions This document is property of Kolb Huizhou Ltd.
  • Page 8 Atollspeed Touch Screen Series – Original Instructions This document is property of Kolb Huizhou Ltd.
  • Page 9 Atollspeed Touch Screen Series – Original Instructions Technical Drawing Atollspeed Nano2 Atollspeed Nano2 K02-3004T1S Steam discharge cover Temperature limiter Power cable Touch screen display Dimension: 395(W) x 626(D) x 570(H) mm Door open dimension: 395(W) x 816(D) x 570(H) mm...
  • Page 10 Atollspeed Touch Screen Series – Original Instructions Technical Drawing Atollspeed 300H Atollspeed 300H K02-3003T1S Steam discharge cover Temperature limiter Power cable Touch screen display Dimension: 445(W) x 687(D) x 570(H) mm Door open dimension: 445(W) x 880(D) x 570(H) mm...
  • Page 11 Atollspeed Touch Screen Series – Original Instructions Technical Drawing Atollspeed 400H Atollspeed 400H K02-4003T1S Steam discharge cover Temperature limiter Power cable Touch screen display Dimension: 583(W) x 730(D) x 592(H) mm Door open dimension: 583(W) x 935(D) x 592(H) mm...
  • Page 12 Atollspeed Touch Screen Series – Original Instructions Circuit Diagram Atollspeed Nano2 / 300H This document is property of Kolb Huizhou Ltd.
  • Page 13 Atollspeed Touch Screen Series – Original Instructions Circuit Diagram Atollspeed 400H This document is property of Kolb Huizhou Ltd.

  • Page 14: Introduction

    Atollspeed Touch Screen Series – Original Instructions 2. Introduction Notes on Technical Dimensions and Installation Planning of the Atollspeed Micro- Convection Oven. When planning the installation of the Atollspeed, make sure that the installation side (especially the right side) is permanently accessible. When planning the installation of an Atollspeed in a wall recess, keep free the following spaces around the baking oven.
  • Page 15 Atollspeed Touch Screen Series – Original Instructions  With the microwave function you cannot cook or boil eggs or sealed container (with food or liquids) as they may explode.  Food with skin should be cut with a knife before heating up. (Sausage, apples, pear, potatoes etc.)

  • Page 16: Oven Installation

    Atollspeed Touch Screen Series – Original Instructions  Eggs in their shell and whole hard-boiled eggs should not be heated in ovens since they may explode even after microwave heating has ended.  When preparing frozen food defrost with 0% microwave power to avoid damage to the device.

  • Page 17: Start The Oven For The First Time

    Atollspeed Touch Screen Series – Original Instructions  Supply lines and fuse protection must be installed to the list. A master switch provided by the customer is to be fitted into the supply line (all-pole connector).  Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

  • Page 18: Cooking Speed And Accessories

    Atollspeed Touch Screen Series – Original Instructions 5. Cooking Speed and Accessories The Atollspeed produces a combination of high speed forced air convection heating and microwave energy to cook food. Due to the combination of several technologies baking and cooking with the Atollspeed is much faster than with conventional convection ovens.
  • Page 19 Atollspeed Touch Screen Series – Original Instructions The Silicone Mat is self-sticking. Remove cover on the backside before attaching it to the stone. It is typically used with products that are prepared on the Baking Stone, but a lot of cheese makes the stone look dirty and difficult to clean.

  • Page 20: Description Of The Pcb Function

    Atollspeed Touch Screen Series – Original Instructions 6. Description of the PCB Function 1. Capacitive touch screen 2. On/Off button 3. Capacitive NUM-Pad 4. Reset switch for the PCB 5. Red safety temperature limiter reset 6. USB Port This document is property of Kolb Huizhou Ltd.

  • Page 21: Operation Of The Oven

    Atollspeed Touch Screen Series – Original Instructions 7. Operation of the Oven 7.1 How to start Atollspeed To turn on Atollspeed touch the On-touch button for more than one second. Then Start up screen appears for three seconds. You have the possibility to interrupt start up and enter User Settings.

  • Page 22: Home Screen

    Atollspeed Touch Screen Series – Original Instructions 7.2 Home screen Home screen allows the user to start baking instantly or access all functions important for baking within a few clicks.  Actual temperature inside the baking chamber. (Preheat temperature in User settings) ...
  • Page 23 Atollspeed Touch Screen Series – Original Instructions Preheat Temperature T1/T2 Atollspeed has a preheat temperature T1 to which to oven heats up when it is switched on. This takes about 10 minutes. Then the oven keeps this temperature until it is turned off again. If a baking program with different Temperatures is started the oven follows the set temperatures and returns to the preheat temperature after wards.
  • Page 24 Atollspeed Touch Screen Series – Original Instructions Set Temperature Since Atollspeed is very well insulated, temperature cannot change very quickly. So setting a different temperature than the preheat temperature has rather small impact on the baking result. It is much more effective to change the air speed.

  • Page 25: Start Manual Baking

    Atollspeed Touch Screen Series – Original Instructions Preheat timer and Reheat timer can be adjusted or turned off in user settings. They do not affect the function of the oven, but are a visual indicator for the user. This function can help to achieve a reproducible baking result.

  • Page 26: How To Start A Baking Program

    Atollspeed Touch Screen Series – Original Instructions When baking is finished take out the food and close the door. Notes: In user settings you can set the alarm repeat time so the alarm is repeated regularly until the food is taken out.
  • Page 27 Atollspeed Touch Screen Series – Original Instructions Select the Program you want to bake, for example P0 or the corresponding number on the NUM pad. Insert food, then press “Start” to start this baking program. Never start baking if the baking chamber is empty, it can damage the machine.

  • Page 28: How To Save/Edit A Baking Program

    Atollspeed Touch Screen Series – Original Instructions 7.5 How to save/edit a baking program To create a new baking program or edit an existing baking program you have to unlock the menu. To unlock, select the “Lock” symbol on the top of the screen.
  • Page 29 Atollspeed Touch Screen Series – Original Instructions Unlocked Edit name of Program / Group Edit picture Add to Favorites star Edit values Create new Step Accumulated program counter To Add/Edit a program picture tab on the picture and select any picture on the following screen.

  • Page 30: Editing A Group Name

    Atollspeed Touch Screen Series – Original Instructions 7.6 Editing a group name When the program List is unlocked you can also edit the Group name. Tab on the name, and then enter the letters with NUM pad. Wait three seconds, then the new name is saved.

  • Page 31: Power Off The Oven

    Atollspeed Touch Screen Series – Original Instructions In the bottom left corner of each favorite a small two digit number is displayed. This shows the program number of the favorite (for example “26” is Group 2, Program number 6). This helps you to find the program easy if you want to edit or remove it.
  • Page 32 Atollspeed Touch Screen Series – Original Instructions You can open the door and the air continues to work to speed up the process. Be careful of hot surfaces. Please note if the power was interrupted and is restored and the baking chamber is still hot the oven will automatically show this screen, start the fan and cool down to 100 degrees.

  • Page 33: Function

    Atollspeed Touch Screen Series – Original Instructions 7.9 +1 Function The oven has an optional “+1” function that can be activated in user settings. This function allows a dynamic scaling of baking programs to different food quantities. Generally, altering the food quantity has a big influence on the baking result and should be avoided.
  • Page 34 Atollspeed Touch Screen Series – Original Instructions When running a program the oven behaves as normal, but you will now see the “+1” button on the baking screen. If you do not do anything the program will run as normally programmed, for example for one sandwich.

  • Page 35: User Settings

    Atollspeed Touch Screen Series – Original Instructions 7.10 User settings To enter User Settings, turn off the oven, then turn it on. On Start screen press the button “User Settings”. Enter User PIN (default PIN is 000), then press Enter.
  • Page 36 Atollspeed Touch Screen Series – Original Instructions  “Alarm Repeat Time” defines after how many seconds the Alarm is repeated if the door is not opened after baking is finished. The alarm is repeated regularly until the door is opened.
  • Page 37 Atollspeed Touch Screen Series – Original Instructions Example: “Cleaning every 500 bakings”  “Do it Later” will remind you again the next time when powering on the oven.  “Completed” will reset the counter and remind you again 500 bakings later.

  • Page 38: Usb Program Transfer

    Atollspeed Touch Screen Series – Original Instructions 7.11 USB program transfer To copy programs from/to an external USB drive power off the oven, then power on. On start screen you see the USB option, select it, then enter the user PIN.
  • Page 39 Atollspeed Touch Screen Series – Original Instructions Confirm the action. Then wait for the process to complete. Confirm the action. Then wait for the process to complete. Do not power off and do not remove the USB drive until finished.

  • Page 40: Warning Screens

    Atollspeed Touch Screen Series – Original Instructions 7.12 Warning screens Oven too warm The oven has internal temperature sensors monitoring component temperatures. If the internal temperature is too high a warning screen will appear. In this case wait for the oven to cool down and take measures to ensure proper ventilation.
  • Page 41 Atollspeed Touch Screen Series – Original Instructions Baking chamber overheated The oven has a safety temperature limiter to limit the maximum temperature of the baking chamber in case of malfunction. It can also trip from vibration or cold temperature. If this warring screen appears wait for the oven to cool down, then press the red reset button under the roof.
  • Page 42 Atollspeed Touch Screen Series – Original Instructions Microwave Overheating The microwave overheating warning can appear after a baking process if the becomes too hot. In this case the microwave will reduce its power temporarily to avoid further overheating or hardware damage.
  • Page 43 Atollspeed Touch Screen Series – Original Instructions Regular maintenance suggested After a default of 500 hours of magnetron operation the oven reminds you that a regular check-up is suggested to make sure the oven is in geed condition. You can cancel the message any time and continue working normally. This screen is just a Reminder and does not influence the operation of the oven.

  • Page 44: Troubleshooting

    Atollspeed Touch Screen Series – Original Instructions 8. Troubleshooting 8.1 Safety temperature limiter The Atollspeed oven is equipped with a safety temperature limiter. Safety temperature limiter (STL) controls the temperature in the baking chamber and switches off the whole baking oven when the temperature is inadmissibly high, for example in case of thermostat failure, in order to avoid possible damages caused by overheating.
  • Page 45 Atollspeed Touch Screen Series – Original Instructions  Use a moist towel for cleaning the machine. If the oven is seriously contaminated a liquid detergent can also be used. After the application of liquid detergent, the baking chamber always has to be rinsed with pure water.

  • Page 46: Product Warranty

    Defiance can lead to control failure and consequently to the expiration of any guarantee claims. If any mistakes slipped in while editing this manual, Kolb Huizhou Ltd. does not need to take any responsibility. This document is property of Kolb Huizhou Ltd.
