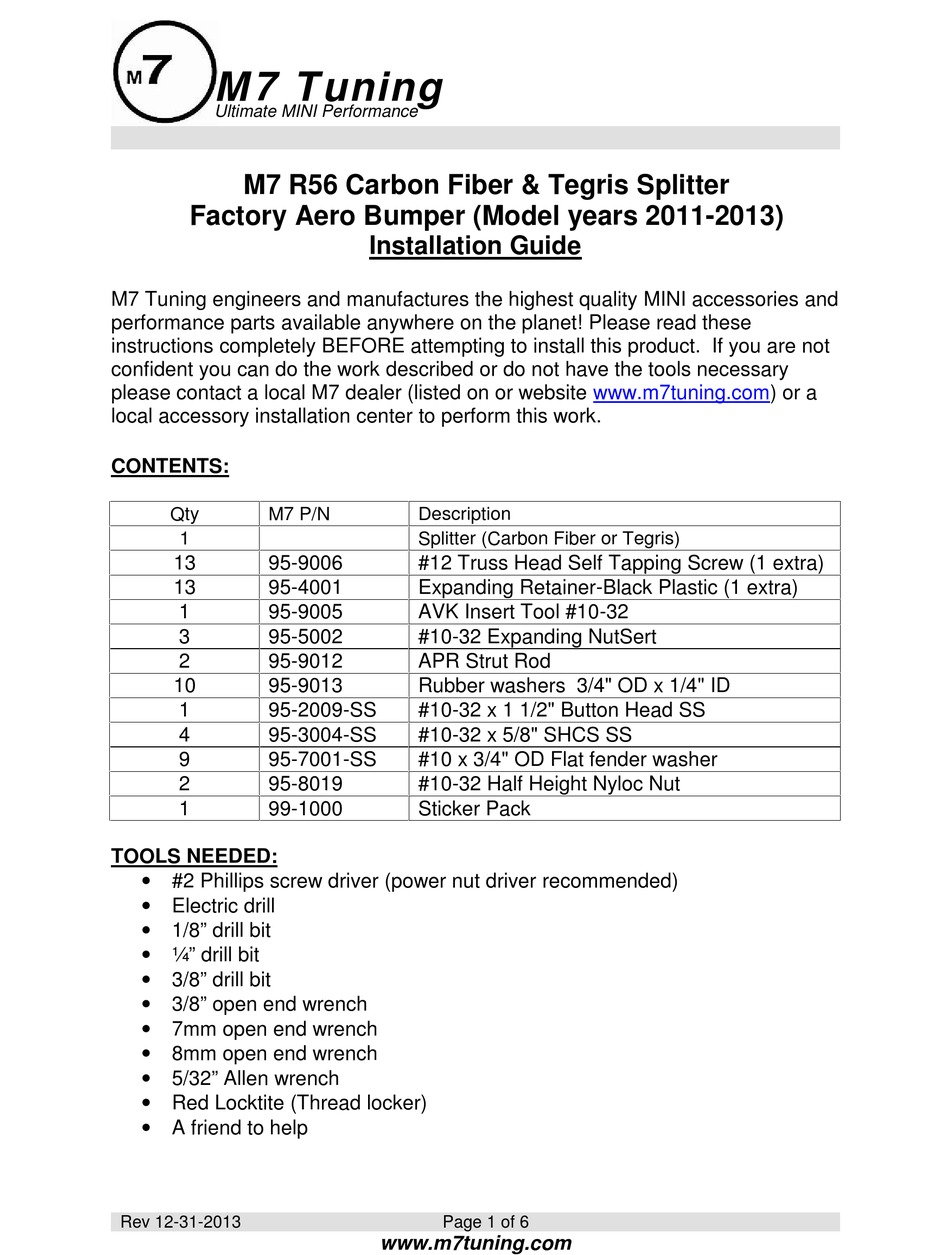

M7 Tuning
Ultimate MINI Performance
M7 R56 Carbon Fiber & Tegris Splitter
Factory Aero Bumper (Model years 2011-2013)
M7 Tuning engineers and manufactures the highest quality MINI accessories and
performance parts available anywhere on the planet! Please read these
instructions completely BEFORE attempting to install this product. If you are not
confident you can do the work described or do not have the tools necessary
please contact a local M7 dealer (listed on or website www.m7tuning.com) or a
local accessory installation center to perform this work.
CONTENTS:
Qty
M7 P/N
1
13
95-9006
13
95-4001
1
95-9005
3
95-5002
2
95-9012
10
95-9013
1
95-2009-SS
4
95-3004-SS
9
95-7001-SS
2
95-8019
1
99-1000
TOOLS NEEDED:
#2 Phillips screw driver (power nut driver recommended)
Electric drill
1/8" drill bit
¼" drill bit
3/8" drill bit
3/8" open end wrench
7mm open end wrench
8mm open end wrench
5/32" Allen wrench
Red Locktite (Thread locker)
A friend to help
Rev 12-31-2013
Installation Guide
Description
Splitter (Carbon Fiber or Tegris)
#12 Truss Head Self Tapping Screw (1 extra)
Expanding Retainer-Black Plastic (1 extra)
AVK Insert Tool #10-32
#10-32 Expanding NutSert
APR Strut Rod
Rubber washers 3/4" OD x 1/4" ID
#10-32 x 1 1/2" Button Head SS
#10-32 x 5/8" SHCS SS
#10 x 3/4" OD Flat fender washer
#10-32 Half Height Nyloc Nut
Sticker Pack
Page 1 of 6
www.m7tuning.com
Advertisement
Table of Contents
Related Manuals for M7 R56
Summary of Contents for M7 R56
-
Page 1: Installation Guide
BEFORE attempting to install this product. If you are not confident you can do the work described or do not have the tools necessary please contact a local M7 dealer (listed on or website www.m7tuning.com) or a local accessory installation center to perform this work. - Page 2 M7 Tuning Ultimate MINI Performance CAUTION: WHEN WORKING UNDER YOUR CAR ALWAYS USE THE RIGHT EQUIPMENT FOR THE JOB. DON’T BE TEMPTED TO TAKE SHORT CUTS OR USE INAPPROPRIATE SUPPORTS SUCH AS CONCRETE BLOCKS, BRICKS OR WOOD. NEVER WORK UNDERNEATH A VEHICLE THAT IS ONLY SUPPORTED BY A JACK.
- Page 3 M7 Tuning Ultimate MINI Performance Figure 1 USE THESE 13 HOLES AS A GUILD TO DRILL FOR RETAINER CLIPS CAUTION: STOP AS SOON AS THE DRILL BREAKS THROUGH. THERE IS LIMITED CLEARANCE ABOVE THE BUMPER COVER. 7. Remove the splitter and set it to the side.
- Page 4 M7 Tuning Ultimate MINI Performance CAUTION: DO NOT OVER TIGHTEN. USE A HAND SCREW DRIVER TO FINAL TIGHTEN. REMEMBER-----YOUR ARE WORKING WITH PLASTIC MATERIALS! SPLITTER CENTER SUPPORT: 14. At the center of the bumper/splitter measure the gap between the top of the splitter and the bottom of the bumper lip at the splitter center hole (Ref: YELLOW hole in Figure #1).
- Page 5 M7 Tuning Ultimate MINI Performance Approx. 1” 4 3/4” Figure 2 17. Place one end of the strut rod into the pre-drilled hole in the splitter and locate where the top of the strut rod will attach to your bumper. (1” & 4 ¾”...
- Page 6 23. Check all hardware for tightness and you are Done! Enjoy the Ride and stay M7 Tuned…………………. Thank you Team M7...
