Sky Factory
looser kerning
Sky Factory
Luminous Virtual Window Maintenance
For technical support at any time during the installation, please call us toll free at 866-759-3228.
We want your installation to go as smoothly as possible. Thank you for choosing The Sky Factory.
TM
www.skyfactory.com
•
toll free 1.866.759.3228
3/2/2016
Advertisement
Table of Contents
Summary of Contents for Sky Factory Luminous Virtual Window
- Page 1 1.866.759.3228 Luminous Virtual Window Maintenance For technical support at any time during the installation, please call us toll free at 866-759-3228. We want your installation to go as smoothly as possible. Thank you for choosing The Sky Factory. 3/2/2016...

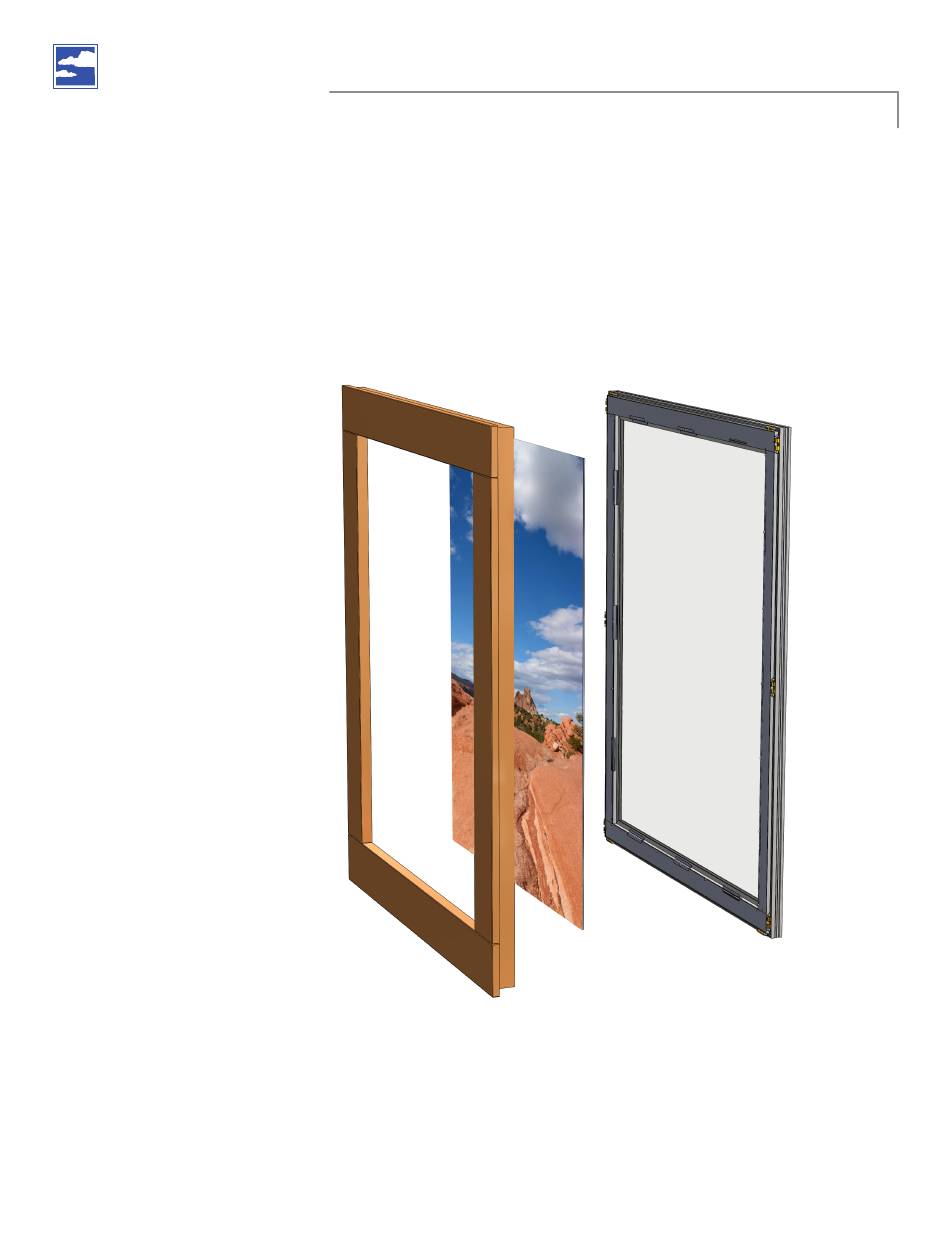

- Page 2 Cleaning the trim and visible portion of the image tile: The Luminous Virtual Window (LVW) trim and visible portion of the image tile can be cleaned without removing the trim. Use a microfiber cloth and for more difficult smudges, a mild diluted dish soap solution and gently wipe the surfaces clean.
- Page 3 #6-32 x 3/4” Phillips machine screw is located in hole in extension trim at top of LVW. Once safety screw is removed, grasp the trim in the middle of both sides and pull gently but firmly outward. The Sky Factory Page 3...
- Page 4 Set the tile back in the inner metal borders of the LVW case and re-install the tile brackets. IMPORTANT: WHEN REPLACING THE BRACKETS, SNUG SCREWS ONLY! DO NOT OVERTIGHTEN SCREWS AND STRIP THE SCREW CHANNEL! The Sky Factory Page 4...
- Page 5 Make sure all the catches latch. If the catches aren’t firmly engaged, the trim could pop loose. If ball catch holding strength or location need to be adjusted for any reason, see “Install the trim” in the installation instructions, or call The Sky Factory for technical support Maintaining the LED’s: The LED’s themselves are maintenance-free.
