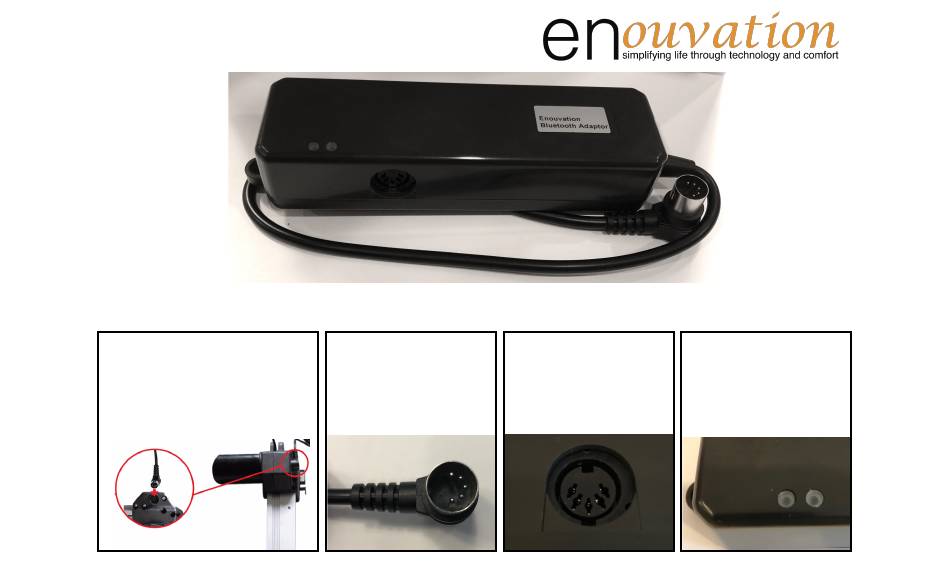

BLE Chair Controller User Manual
The BLE Chair Controller is compatible with 1 and 2 motor chairs.
STEP 2:
Identify the 5 pin connection to motor
(wire controls buttons to open and close recliner)
Location will vary by manufacturer:
All will connect to motor either directly (as shown)
Power Button
or with a splitter wire from motor
Part #
JLDK.04.05.01C
Motor
Part #
A
B
STEP 1:
Disconnect power source to furniture
Y Connection Cord
Part #
STEP 3:
RS.216.01.015
Disconnect 5 pin from Motor
Connect BLE 5 pin connector to motor
Indicated with letter C
5 pin connector
Power Button
Part #
JLDK.04.05.01C
Transformer
Part #
JLDP10.013.000
BLE connector to motor
Motor
Step 6: Installation of app on reverse
Part #
C
STEP 4:
Connect 5 pin removed from motor
to 5 pin receiver
Indicated with letter B on reverse
5 pin receiver
Input for control wire
STEP 5:
Connect power source to furniture
The LED Power indicator
should illuminate blue
Power
Indicator
