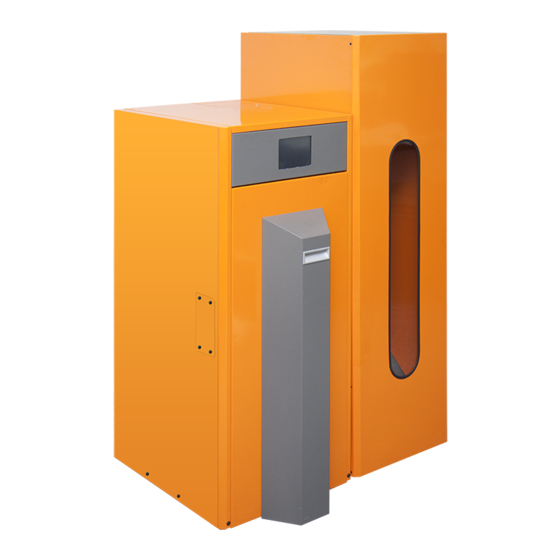

User manual for Ekoheat pellet boiler
Dear Customer
Congratulations on your new Ekoheat pellet boiler from Ekopower.
Please read this manual thoroughly before starting the
installation.
Page 2
: Mounting of the Ekoheat pellet boiler
Page 3
: Initial start-up
Page 4-9 : The controller
Page 10-11 : Cleaning and maintenance
Page 12
: Electrical chart of the control
Page 13
: Accessories
Page 14-15 : Fault finding
Page 16
: Software up-dating
Page 17
: Technical specifications
Page 18
: Warranty
Page 19
: CE-Marking
Page 20-23 : Test of approval
Page 24
: Marks of approval
The pellet boiler from Ekopower has been
tested by Dansk Teknologisk Institut
according to the following norm:
Ekoheat 900 = EN 303-5:1999
Ekoheat 1500 = EN 303-5:1999
Ekoheat 2500 = EN 303-5:1999
Ekoheat 4000 = EN 303-5:2012
All systems are marked
A = Efficiency / A = Environment
Ekoheat pellet boilers are CE marked.
AA
Best regards
Dan Elkjær
Managing
director
Page 1
Warning
Ekoheat pellet boiler must not be
operated by minors.
Top plate as well as front gate,
must always be mounted during
operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ekoheat Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ekopower Ekoheat Series

  • Page 1 User manual for Ekoheat pellet boiler Dear Customer Congratulations on your new Ekoheat pellet boiler from Ekopower. Please read this manual thoroughly before starting the installation. Page 2 : Mounting of the Ekoheat pellet boiler Page 3 : Initial start-up...
  • Page 2 Mounting of the Ekoheat pellet boiler must be done in accordance to firetechnical guidelines, and must be mounted by an of Ekopower authorised technical assistant. It is also recommended by Ekopower to contact the chimney sweeper before mounting is started, and that the pellet boiler is carefully checked for damages occured during transportation.
  • Page 3: Initial Start-Up

    Now connect the power and the display will immediately lighten up with the Ekopower logo and after app. 5 sec. a grapich picture will emerge on the screen. Press ”INFO” for a start and check that it is the same type of Ekoheat which is mentioned in the control as just have been installed.
  • Page 4 The controller Info: Here you find information concerning the Start: When you press this button, the boiler boiler. starts and the text changes to ”Stop”. Operation time in hours. Stop: When you press this button, the boiler Number of ignitions (reset by changing electrical igniter).
  • Page 5 VVB Priority Make the boiler produce hot water (domestic water). To use the function use an Ekopower priority sensor and a 230 V motor powered valve. In the menu you set the wanted hot water temperature, and how much the temperature is allowed to drop before the domestic water need heating again.
  • Page 6 If the circulation pump is connected to the boiler, this will run when the temperature of the boiler is above set point, and stops when this is below again. Ekopower recommends to set pump stop at 55˚ and the boiler temperature at 65˚by engagement of summer operation.
  • Page 7 Menu / Fitter settings/ Designation Area Standard Description Ignition fuel 0 – 200g. 150 – 200g. How many grams are taken in before starting up. This depends on the type of boiler. If the boiler uses more than 3 – 4 minutes on starting up, the amount can be reduced/increased by 10 gram per time, until the ideal time of ignition has been reached.
  • Page 8 Menu / Fitters settings/Next/On-Off Operation This setting is meant for operation in periods with fluctuating heat consumption or a very low heat consumption and where the hot water tank must be kept warm. This is an alternative to summer operation, where the boiler runs on the time control. By on/off operation the boiler runs on the temperature.
  • Page 9 Menu / Self-Testing Here you can choose which type of boiler you have. 900-1500- 2500-4000 Test boiler is only for Ekopower authorised technician. Menu / Self- On this page you can see if the different sensors are working.
  • Page 10: Maintenance And Cleaning

    Maintenance and cleaning Type Description Before cleaning Turn off the burner on the control ( stop ) Wait for 15 min. so the burner gets cold before anything is demounted. Take care that wires are not broken or pulled during cleaning. The hopper Refill the hopper before it is totally empty.
  • Page 11 Type Description The ash plate Once a month or on demand the spindle for the ash plate must be lubricated with KEMA RG 1100 aluminium paste. Stop the boiler and press menu/clean now/5 then the ash plate will run 5 times and the burner pipe is cleaned for ash. Now unscrew the 4 Allen screws, which are placed opposite the engines in both sides.
  • Page 12 Electrical chart of the control Page 12...
  • Page 13: Optional Equipment

    Ekosupply The Ekosupply system can convey the pellets over a distance of up to 25 meters from the small hopper, depending on the slope of the pipes. See more on www.ekopower.eu Page 13...
  • Page 14: Fault Finding

    Fault finding Type of Alert Possible cause Possible solution Hot shaft /burner The contact on the side of To activate the contact take out the burner and put it disconnected the burner pipe does not straight in. connect because the burner is not mounted correctly.
  • Page 15: Troubleshooting

    Minimum is set too low. Increase it to 25-30. The software version is old. Change to the newest software. See page 15. Download on www.ekopower.eu Alert ash plate Micro switch dirty or Check the micro switch manually to check if it clicks.
  • Page 16 Then press ”DOWNLOAD” by ”NEW SOFTWARE” The screen will now turn black for 15 – 20 seconds. Then the EKOPOWER logo will turn up and it will count down from 5. Demount the USB flash drive. Mount the controller again.
  • Page 17 Technical specifications etc. Producer: Ekopower ApS, Rømøvænget 163 , DK-5500 Middelfart, DK Model Ekoheat 900 Ekoheat 1500 Ekoheat 2500 Ekoheat 4000 Efficiency 92,4 % 95,5% 93,1% 93,1% nominal output Efficiency lowest 88,3% 91,5% 91,2% 91,2% output Nominal output 9,4 kW...
  • Page 18 Ekopower. 3. Warranty conditions  It is a condition for the warranty that the warranty certificate is filled in and registered at Ekopower no later than 14 days after the installation. ...
  • Page 19 •'i:"iZ':IZll) i:iC: ((.I.Hl .Ji ZP"!:TTl.Ji i;.s - i:.c: 1Y.' ib1 '[:. li:bli1 .- ll'[Cll ·iZ':IZll) S1 S:i .:i.:i Td.:') SI .;..;. - T11. : E C C ONFORMITY DE CLARA TI ON D OMUi:A CALEFACCIDN S.C 0 Ol'." V A.T . ESF-20000184" i'.l.iftess B-=- Sm i;:i.rili.
  • Page 20 Page 20...
  • Page 21 Page 21...
  • Page 22 Page 22...
  • Page 23 We do hope that you have got a good profit from this manual. Should you have further questions please do not hesitate to contact us at post@ekopower.dk Page 23...
