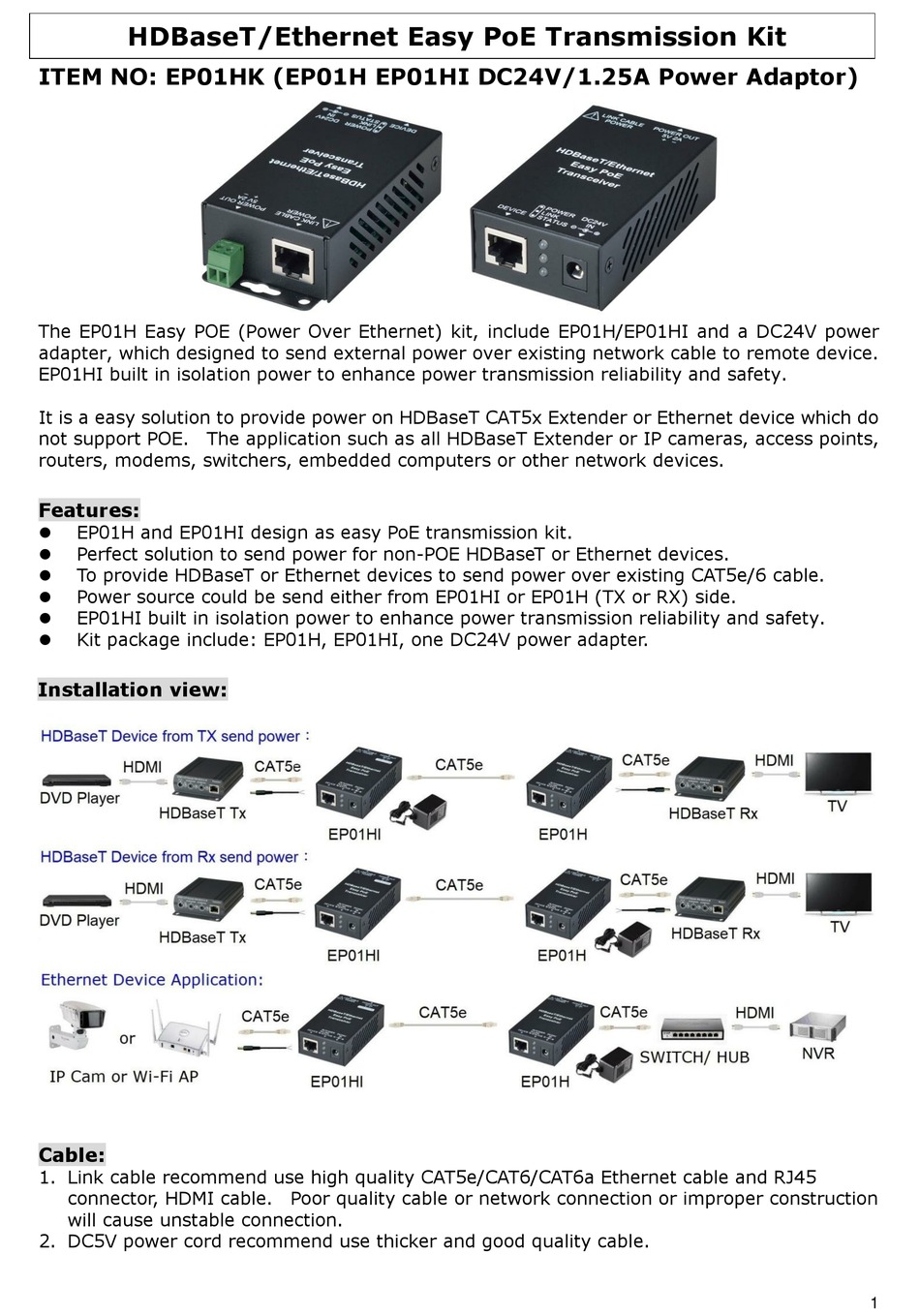

Foresight CCTV EP01HK Quick Start Manual

HDBaseT/Ethernet Easy PoE Transmission Kit
ITEM NO: EP01HK (EP01H EP01HI DC24V/1.25A Power Adaptor)
The EP01H Easy POE (Power Over Ethernet) kit, include EP01H/EP01HI and a DC24V power
adapter, which designed to send external power over existing network cable to remote device.
EP01HI built in isolation power to enhance power transmission reliability and safety.
It is a easy solution to provide power on HDBaseT CAT5x Extender or Ethernet device which do
not support POE. The application such as all HDBaseT Extender or IP cameras, access points,
routers, modems, switchers, embedded computers or other network devices.

Features:

EP01H and EP01HI design as easy PoE transmission kit.

Perfect solution to send power for non-POE HDBaseT or Ethernet devices.

To provide HDBaseT or Ethernet devices to send power over existing CAT5e/6 cable.

Power source could be send either from EP01HI or EP01H (TX or RX) side.

EP01HI built in isolation power to enhance power transmission reliability and safety.

Kit package include: EP01H, EP01HI, one DC24V power adapter.


Installation view:

Cable:
1. Link cable recommend use high quality CAT5e/CAT6/CAT6a Ethernet cable and RJ45
connector, HDMI cable. Poor quality cable or network connection or improper construction
will cause unstable connection.
2. DC5V power cord recommend use thicker and good quality cable.
