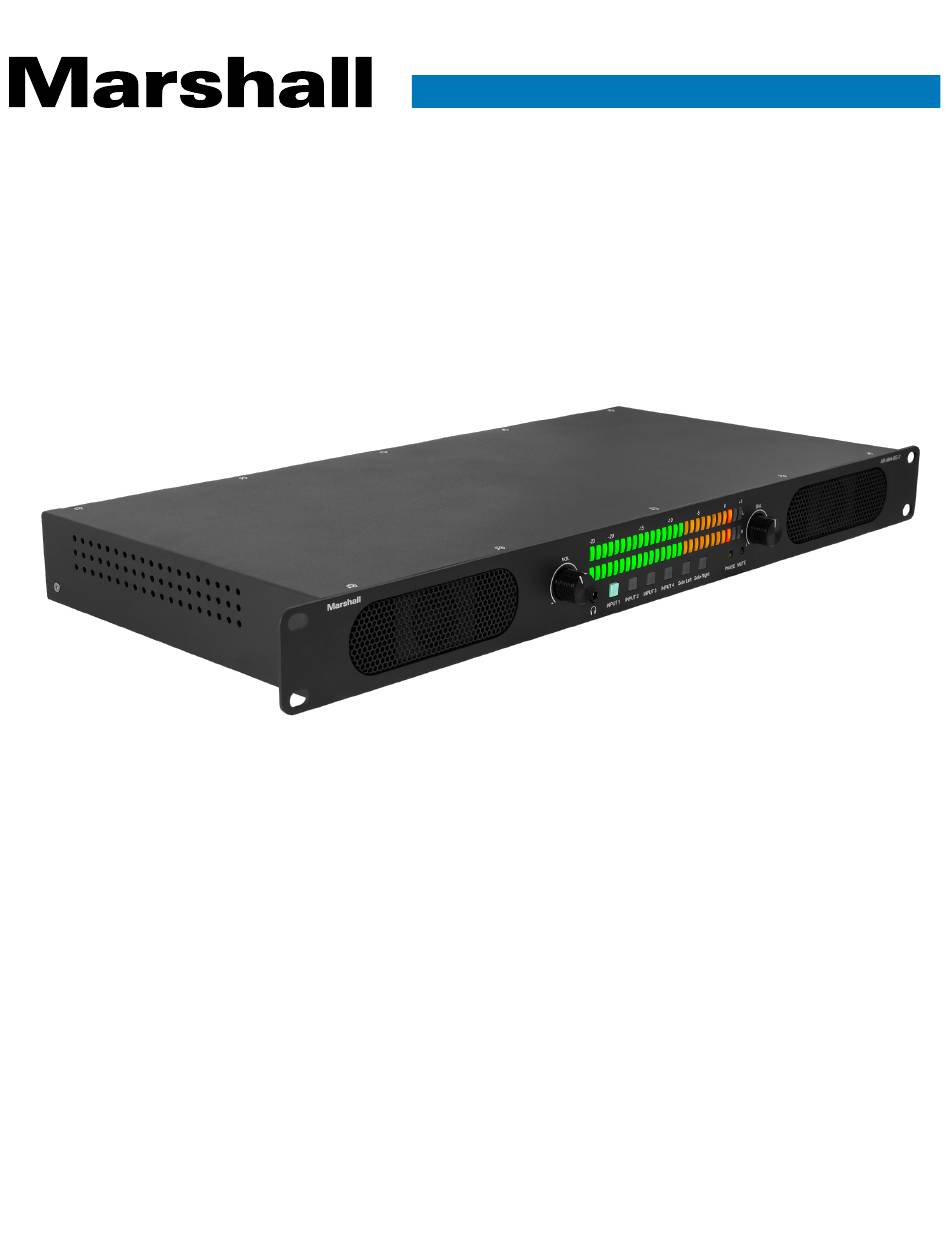

- Page 1 B r o a d c a s t A / V D i v i s i o n AR-AM4-BG-2 Multichannel Analog Audio Monitor User Manual [Firmware Version 0.43]...
-
Page 2: Table Of Contents
AR-AM4-BG-2 Manual Table of Contents 1. Features High Performance Audio 1. Features • Matches or exceeds many larger 2RU designs 2. Package Contents • Enough “punch” for the noisiest server rooms 3. Front Panel Description Multiple Inputs 4. Control Button Detail •... -
Page 3: Front Panel Description
AR-AM4-BG-2 Manual 3. Front Panel Description 4. Control Button Detail 1. Speakers 1. Input Select Provides sound from two channels except when Solo buttons are pressed Press one of these four buttons to monitor the corresponding input 2. Headphone Jack 2. -
Page 4: Operation
Balance knob will light whenever the audio is muted. The AR-AM4-BG-2 may be operated and configured from a Windows® computer by a Serial (RS- Press either Solo Left or Solo Right to hear sound from only the Left or Right channel. The selected 232) link. -
Page 5: Serial Connection
To control the AR-AM-4 using an RS-232 serial link, first select the port number. The correct port Once a connection has been established between the control application and the AR-AM4-BG-2, number will likely be the one with the highest numeric value. -
Page 6: Updating
Audio Outputs Analog Balanced x 2 XLR Male Next, click on “Burn” which will transfer the file to the AR-AM4-BG-2 and start the update process. Do not turn off the unit until the update has completed. 3.5mm Stereo Phone Jack (plugging in... -
Page 7: Warranty
Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Human body model — ±15kV [air-gap ESD protection discharge] & ±8kV [contact discharge] Relative humidity 20~90% RH [no condensation] Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date.
