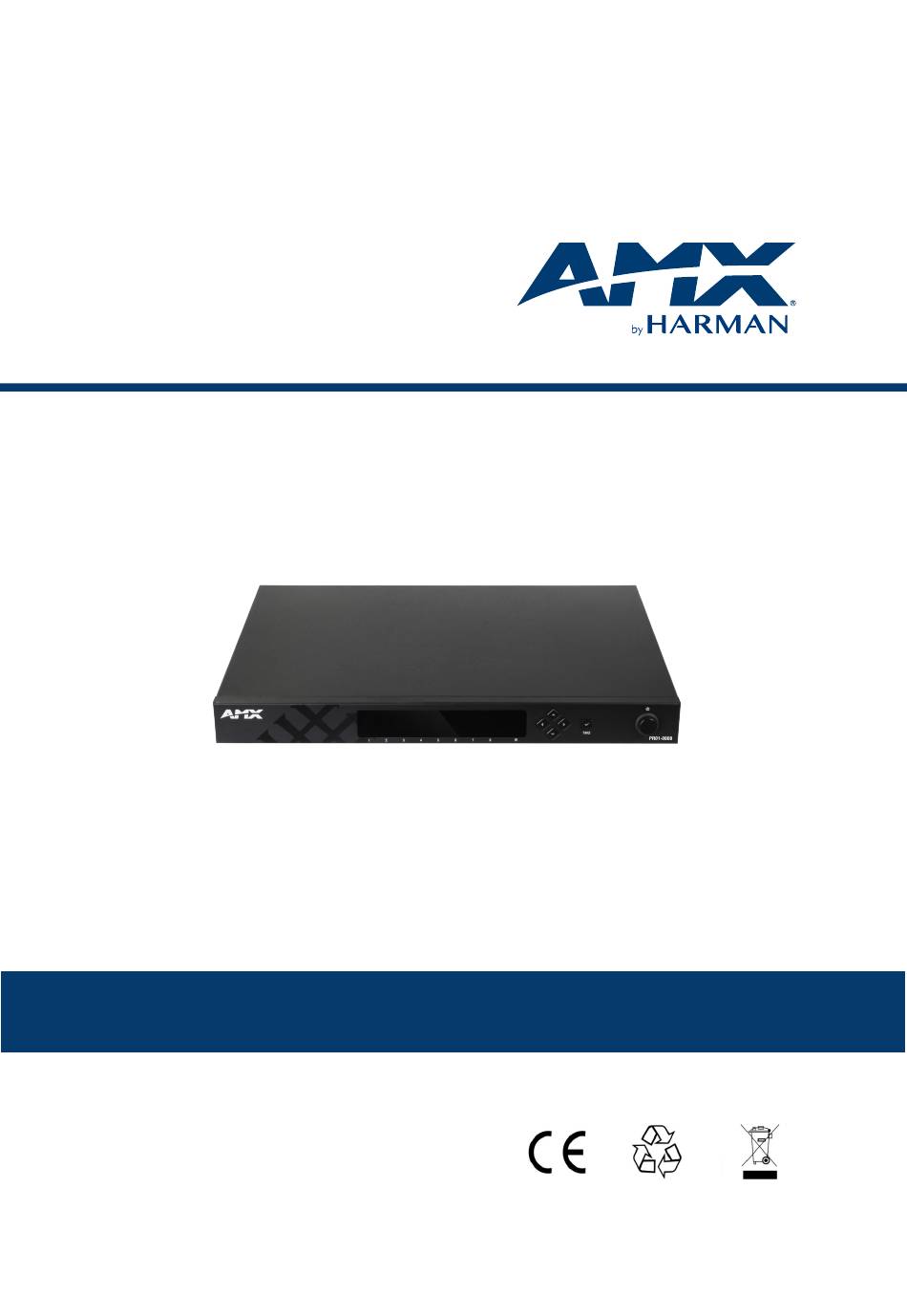

PR01-0808
Precis 8x8 HDMI 4K60 with 4 HDBaseT
User Manual
Version: V1.0.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMX PR01-0808 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman AMX PR01-0808

Summary of Contents for Harman AMX PR01-0808

  • Page 1 PR01-0808 Precis 8x8 HDMI 4K60 with 4 HDBaseT User Manual Version: V1.0.2...
  • Page 2 Important Safety Instructions 1. Do not expose this apparatus to 6. Clean this apparatus rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 7. Unplug this apparatus 2.
  • Page 3 Warnings of FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Table Of Contents

    Table of Contents Introduction ...................... 3 Overview ....................3 Features ....................3 Package Contents ..................4 Specifications .................... 5 Panel Description ..................9 Front Panel ..................9 Rear Panel ..................10 Installation and Wiring..................11 Installation ....................11 Wiring ..................... 11 Front Panel Control ..................
  • Page 5 Firmware Upgrade ..................42 Before You Start ..................42 Transferring KIT Files ................43 Trouble Shooting .................... 45 Steps of Regular Troubleshooting Routine ........45 Warranty Terms and Conditions ..............46...

  • Page 6: Introduction

    Introduction Overview PR01-0808 is an 8x8 HDMI Matrix with HDMI 2.0 and HDCP 2.2 compatibility, allows eight sources to be switched to any of the four HDBaseT outputs to remote displays and any of the eight HDMI outputs to local displays simultaneously.

  • Page 7: Package Contents

    HDBT mirror HDMI OUT 1~4  Independent DIP switch for advanced EDID management  Supports fast switching when working with SCL-1 and PR01-RX  Package Contents 1 x PR01-0808  1 x US AC Power Cord  1 x UK AC Power Cord ...

  • Page 8: Specifications

    Specifications Technical Input 8 x HDMI IN Established Timings 1280 x 1024@75 Hz 1152 x 870@75 Hz 1024 x 768@60 Hz, 70 Hz, 75 Hz, 87 Hz 832 x 624@75 Hz 800 x 600@56 Hz, 60 Hz, 75 Hz 720 x 400@70 Hz, 88 Hz 640 x 480@60 Hz, 67 Hz, 72 Hz, 75 Hz CEA Video Information Code (VIC) Formats:...
  • Page 9 VIC = 19, 1280 x 720p 50 Hz 16:9 VIC = 20, 1920 x 1080i 50 Hz 16:9 VIC = 21, 720(1440) x 576i 50 Hz 4:3 VIC = 22, 720(1440) x 576i 50 Hz 16:9 VIC = 29, 1440 x 576p 50 Hz 4:3 VIC = 30, 1440 x 576p 50 Hz 16:9 VIC = 31, 1920 x 1080p 50 Hz 16:9 VIC = 32, 1920 x 1080p 23.97/24 Hz 16:9...
  • Page 10 SMPTE Formats 1280x720p@50Hz, 59.94Hz, 60Hz 1920x1080p@50Hz, 59.94Hz, 60Hz 3840x2160p@24Hz, 25Hz, 30Hz, 50Hz, 60Hz 4096x2160p@24Hz, 25Hz, 30Hz, 50Hz, 60Hz Input Audio Supported PCM 2.0 8 x HDMI Out Output 4 x HDBT Out 8 x Audio Out VESA Formats 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz,...
  • Page 11 NetLinx General Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -10°C to 60°C (14°F to 140°F) Humidity 5% to 85%, non-condensing Power Supply AC 100-240V 50/60Hz Power Consumption (Max) Human-body Model: ESD Protection ±10kV (Air-gap discharge) ±5kV (Contact discharge) Device Dimension 440mm ×43.5mm ×...

  • Page 12: Panel Description

    Panel Description Front Panel Name Description Output Channel Indicator Indicates input for output port 1~8. IR receive window. Selects the input and output channels. Left/Right buttons are used to select Select buttons with LED outputs; (White) UP/Down buttons are used to select inputs Press this button to take effect after Enter button...

  • Page 13: Rear Panel

    Rear Panel Name Description 100~240V AC 100~240V 50/60Hz power supply input. 50/60Hz VIDEO INPUTS Connect to HDMI sources (HDMI 1-8) VIDEO OUTPUTS Connect to HDMI display devices (HDMI 1-8) IR EXT IR extension port: for IR Receiver Cable. EDID DIP Switch: for EDID management. Connect to control system, used for Web UI, Telnet LAN 10/100 controlling, Thor commands controlling.

  • Page 14: Installation And Wiring

    Installation and Wiring Installation Note: Before installation, please ensure the device is disconnected from the power source. PR01-0808 occupies 1U space and can be placed on a solid and stable surface or installed on a standard rack mount. Steps to install the device in a suitable location Attach the installation bracket to the enclosure using the screws that were provided in the package separately.
  • Page 15 streaming device, CCTV etc.) to the HDMI input ports 1-8 of the matrix. Suggestion: Please insert and extract cables carefully with the power SWITCHED OFF. Power is passed along transmissions so connecting and disconnecting cables while powered may cause damage to circuitry or possible injury. Firmly connect HDMI OUT 1-8 of the matrix to HDMI IN of 4K or HD display devices, make sure all sources and displays are compatible and correctly configured.

  • Page 17: Front Panel Control

    Front Panel Control This HDMI matrix is designed with ease of connection and control in mind. Basic switching of input sources to output displays can be achieved by pressing front panel buttons and the front LEDs indicate the current input and output status of the matrix.
  • Page 18 Step 3. Press the Enter (√) button to confirm the selection, after the selection takes effect, the LED stops blinking.

  • Page 19: Remote Control

    Remote Control The HDMI matrix can be controlled by a remote as well. Previous and next buttons ( Scrolls between the input sources. The previous button means the previous input; while the next button means the next input. When using the matrix remote, point it directly at the matrix or IR receiver, are used to scroll between the input sources for each...

  • Page 20: System Code Switch

    individual output display. For example, to select output display 1 to be set to input source 2, find row 1 on the matrix control and scroll to input source 2. System Code Switch In the event that the matrix remote’s IR signals interfere with or interfered by other IR devices, such as TV, DVD or the other matrix, the matrix is capable to allow the IR of switching between two distinct IR system codes...

  • Page 21: Rs232 Operation

    RS232 Operation RS232 Pinout The following figure shows the RS232 pinout besides HDBT Out port. Please connect with the phoenix connectors provided. RS232 Pass Through RS232 phoenix female port next to HDBT OUT port are used to RS232 pass through. To start RS232 pass-through between PR01-0808 and a Receiver (e.g.

  • Page 23: Netlinx Control

    NetLinx Control Advanced users may also choose to control the PR01-0808 through NetLinx studio via Ethernet port. Before launch the NetLinx Studio, connect the PR01-0808 to RX, PC, control system (e.g. NX-3200) to the same network. Device Number and Ports Each Module has its own Device Number (which is assigned when the unit is bound to a Control System) and the following ports.
  • Page 24 After configure each port respectively, you can send commands to the device to control it. Send Commands to Control a Device Click "Diagnostics" on the menu bar, choose "Control a Device". A window will display as follows, enter a command in the textbox, and click "Send To Device".

  • Page 25: Telnet Control

    Telnet Control To launch Telnet Window, Right click the Device Number in NetLinx Studio's Online Tree, select "TELNET Window" – "Launch TELENT Window via NetLinx Studio" (or "Launch TELENT Window via User Defined Program"). *...
  • Page 26 Note: Users also can select “Launch TELNET Window via User Defined Program”. More telnet commands, please refer to “API Command Set_PR01-0808 V1.0.3”. At the prompt (>), type the Telnet command and press Enter.

  • Page 27: Web Ui Control

    If you select "Launch TELENT Window via User Defined Program", you may need to enable Telnet by completing the following: Go to Start/Control Panel/Programs and Features; On the left, select "Turn Windows features on or off"; Select the check-boxes Telnet Client and Telnet Server, and click “OK”. Web UI Control PR01-0808 offers users a web interface for changing settings and controlling the matrix.

  • Page 29: Web Ui Control

    Web UI Control The Web UI designed for the PR01-0808 allows basic controls and advanced settings of the device. The Web UI page can be accessed through NetLinx Studio. Access the Web UI To get access to Web UI: Connect your PC and the LAN port of the PR01-0808 to the same local area network.

  • Page 30: Web Ui Introduction

    Web UI Introduction Matrix Control The Matrix Control submenu is used to perform the following tasks: Switch  Preset  Switch The Switch manages the connection configurations of displays and sources.

  • Page 31: Advanced Setting

    The input/output switch allows selection of output port (display) and input port (source) for specific combinations of displays and sources within the matrix. Click the white button, it will become blue, which represents that input and output are routed. All: Route all outputs to one input. None: Route output to none (turn off output) Presets Only matrix inputs/outputs selection states can be saved as presets and can...
  • Page 32 CEC Setting  EDID Setting  HDCP Support  Port Name  Preset Name  Network  Change Password  Telnet/SSH Account  Telnet Service  SSH Service  ICSP Parameter  System  Save and Load Setting  Update Status ...
  • Page 34 CEC Setting Click on the Output drop-down menu to select the output which you want to set. Click “Display On” to send CEC command to power on the display connected to the output. Click “Display Off” to send CEC command to power off the display...
  • Page 35 connected to the output. Choose Auto Control time to set display auto power off time. For example, if the time is set to 2 minutes, when the output has no signal for more than 2 minutes, the display will power off automatically. If you click the button “OFF”, this function is free.
  • Page 36 Click “Read” to read EDID. Change EDID settings through the input drop-down menu, click “Apply” to make the change effective.
  • Page 37 HDCP Support In this column, HDCP support ability of HDMI Input 1-8 ports can be enabled/disabled. ON: Input port support HDCP. OFF: Input port do not support HDCP. Port Naming Give the ports different names which will be easier for users to remember, user can modify port names in this column.
  • Page 38 Preset Name Give the presets different names which will be easier to remember, presets names can be modified in this column. Click Save to save the changes, click “Reset”, all the port name should be modified. Note: The length of all names is limited to 15 characters (letters, numbers or space) each.
  • Page 39 Change Password In Change Password column, the user can modify the Login Password. Login Password default is admin. Click “Save” button to save the changes. Note: Password must be 4 to 16 characters in length (alphanumeric only). Telnet/SSH Account Telnet/SSH Account is used to configure the user name and password of the account.
  • Page 40 Telnet Service In this column, users can select telnet Service “Disable” or “Enable”. “Enable” is default. SSH Service In this column, users can select SSH Service “Disable” or “Enable”. “Enable” is default.
  • Page 41 ICSP Parameter In this column, users can set ICSP parameter. Connection Mode: includes four options of NDP, Auto IP, URL/TCP, URL/UDP. Master URL: Input the connected master’s URL. System Number: Use the Online Tree to determine it. By default, it is disabled to configure.
  • Page 42 Reset to Defaults: Click “Reset to Defaults…” heighted in red, select OK of the box popped to reset the device to factory defaults. Save and Load Setting In this column, users can save settings and load settings. Save Settings: Save current settings as a setting file to be saved in PC. Load Settings: Click to load a setting file from PC to Matrix.
  • Page 43 Update Status In this column, Users can check the upgrade status when upgrade the firmware of device. Update Web UI In this column, users can update Web UI. Step 1. Browse for the bin file. Step 2. Click on “Update” button. Note: Module will update and reboot automatically.
  • Page 44 In this column, users can hide or show the log in the bottom of the page. Firmware In this column, users can check the firmware version.

  • Page 45: Firmware Upgrade

    Firmware Upgrade PR01-0808 uses KIT files for firmware upgrade. Before You Start Verify that you have the latest version of NetLinx Studio on your PC. Download the latest firmware (KIT) file to your PC. (Place KIT files on a local drive for speedy throughput.) Verify the following: Verify that an Ethernet/RJ-45 cable is connected from PR01-0808 to the same network as the control system.

  • Page 46: Transferring Kit Files

    Transferring KIT Files The system will be non-operational during the upgrade procedure below. In NetLinx Studio from the Tools menu, select “Firmware Transfers > Send to NetLinx Device”, select “Stop Communications” in the following box, and then enter the Send to NetLinx Device dialog box. Click to navigate to the target directory.
  • Page 47 Click “Update Status” in Update Status column of web UI to see the process of firmware upgrading. The device will restart automatically, do not need to power cycle it. Note: The upgrade process will last 1 hour.  Do not power off the device until it has been successfully upgraded. ...

  • Page 48: Trouble Shooting

    Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on (sources, transmitter, receiver and display). Indicator: Please make sure all LED indicators of the receiver is normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly.

  • Page 49: Warranty Terms And Conditions

    Warranty Terms and Conditions For the following cases AMX shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by AMX) labeled on the product has been removed, erased, replaced, defaced or is illegible.
  • Page 50 AMX Office Address: 3000 Research Drive, Richardson, TX 75082. Website: www.amx.com Tel: 800.222.0193 | 469.624.8000 | +1.469.624.7400 Fax: 469.624.7153...
