ETC IRIDEON Installation Sheet

IRIDEON
TECHNICAL ASSISTANCE
The AR6 luminaire is designed to be a low maintenance lighting
instrument. For further assistance or questions regarding this lumi-
naire, please contact the ETC Technical Support staff in Middle-
ton, Wisconsin U.S.A. at 608-831-4116 or toll-free at 800-688-
4116.
Before Starting
Items required for installation, but not supplied:
• #2 Phillips screwdriver
• 3 each 18 -10 AWG wire nuts
• Hammer and 4 each 1-1/4" nails or 1-1/4" wood screws for
wood framed installations.
• 4 each 1-1/4" sheet metal screws for metal framed installa-
tions.
®

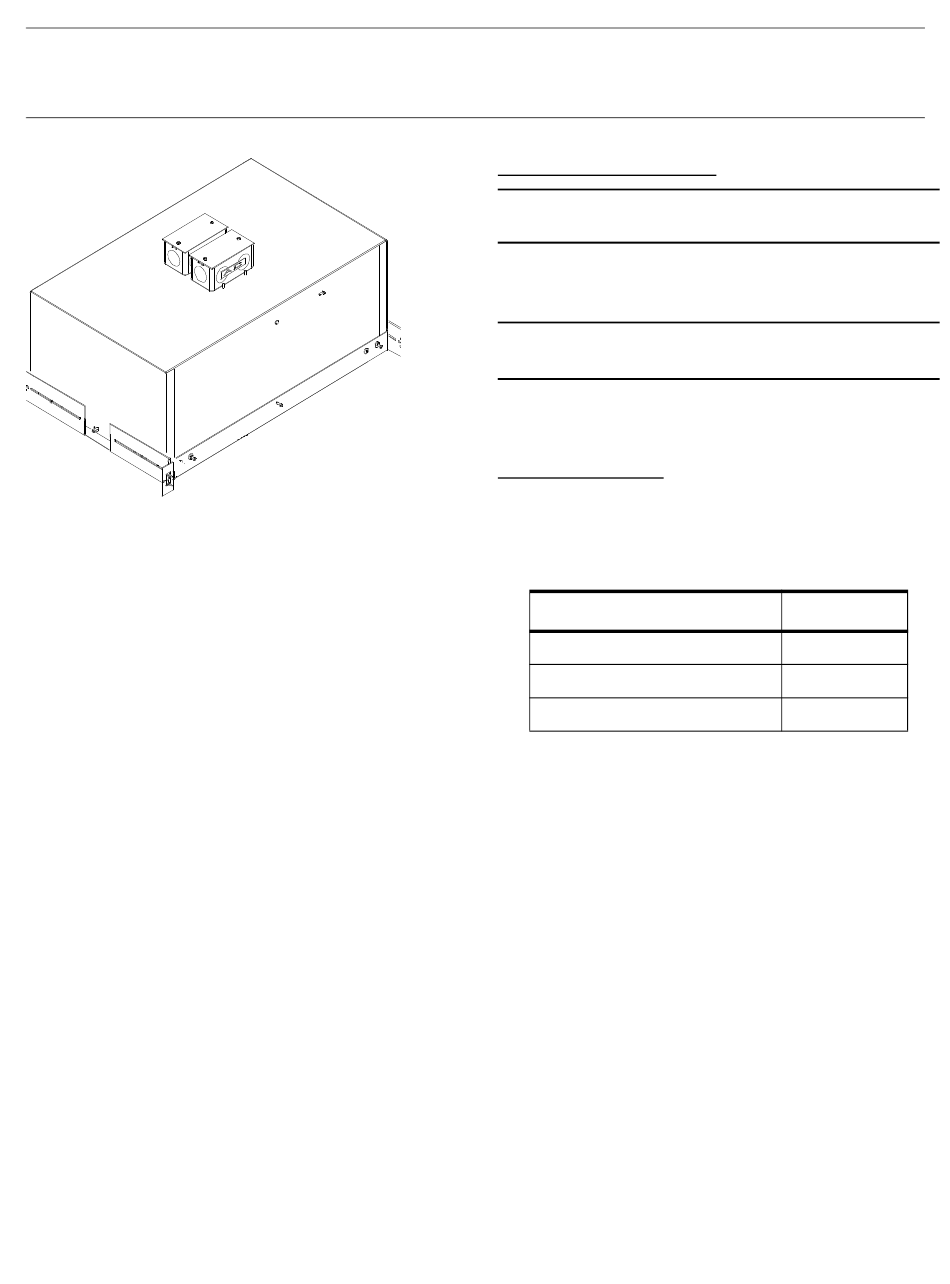

Rough-In Housing Installation Sheet for
AR6™ Recessed Luminaire
Site Preparation
AC and Data Power Wiring
Note: The installation contractor is responsible for compliance
with local electrical codes.
Data and AC power are to be routed through separate conduit.
Separate junction boxes are provided on the luminaire housing for
connection of AC and data.
WARNING: Do not attempt to connect equipment with
power applied.
Input Rating:
100-120V @ 3A max.
Cable Specifications
AC Power Input
Wire Gauge: 18-10 Awg 3-conductor *(.82 - 5.37mm
Rating: 300V
Connect as follows:
Wire
Black *(Brown)
White *(Blue)
Green or bare *(Grn/Yel)
*International (Harmonized)
Standard
Data Input
Wire Gauge: 24 AWG
Description: Category 5 solid conductor, shielded, twisted pairs
Recommended Cable: Belden 1589A
Alpha 9504CS
208-277V @ 2A max.
2
x3-cond.)
Connection
AC Line
AC Neutral
Ground
Belden 1584A
