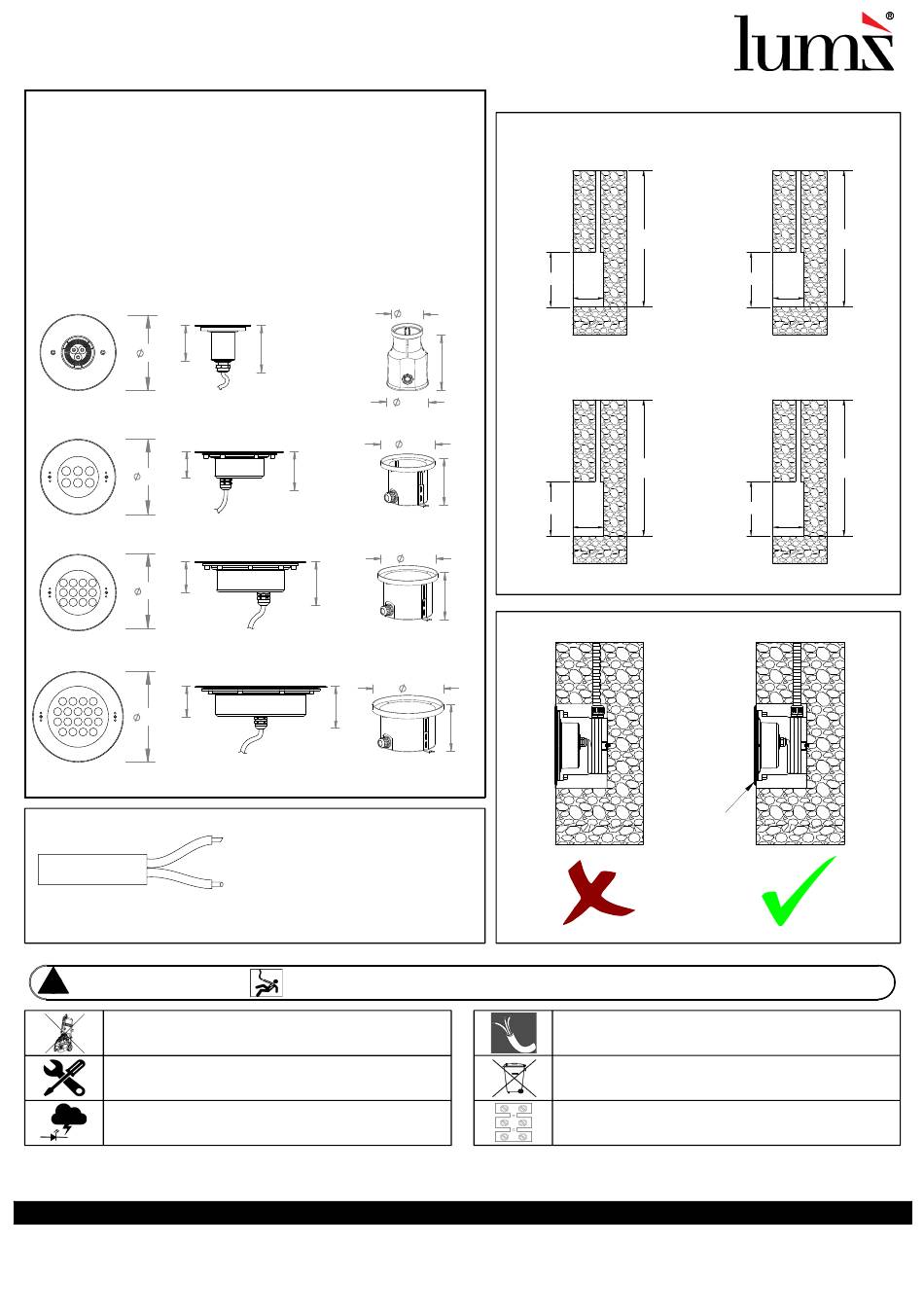

lumz MARINO A Installation Manual

INSTALLATION MANUAL
LED MARINO
PRODUCT DESCRIPTION & DIMENSION
IP 68 IK 07
MODEL:
MARINO A
MARINO B
MARINO C
MARINO D
# 24V Remote Constant Voltage Driver
Required
Customer supply
63
98
MARINO A
54
180
MARINO B
55
205
MARINO C
56
250
MARINO D

WIRING INSTALLATION

Connect wires from the luminaire to DRIVER as follows:
1. Connect BLUE / BLACK wire to the -VE wire.
2. Connect BROWN / RED wire to the +VE wire.
!

SAFETY WARNINGS

Do not use water high pressure cleaners.
The LED module contained in this luminaire SHALL ONLY BE REPLACED by
the manufacturer.
For further informations, please contact your supplier.
Electronic equipment sensitive to voltage surges.
The installation of a protection device against overvoltages on the electrical
system attenuates the intensity of these phenomena protecting apparatus from
the risk of damage.
NOTE:
Connect all wires from the luminaire to AC power using a connector.
Make sure all wiring connections are tight so that no bare wires are visible.Good connections may avoid tripping from happening.
For wiring, use a terminal complies with EN 60998-2-1 and EN 60998-2-2.
Consult your local authority regarding disposal or recycling procedures of removed ballast and lamps.
Read the Installation Manual instruction carefully before install the products to ensure that you obtain the best possible results.
LUMZ PTE LTD
Singapore Office (HQ Sales & Marketing):
1 Coleman Street #10-06, The Adelphi,
179803, Singapore.
Tel: (0065) 9758 2771
Email: maverick@lumzlighting.com
sales@lumzlighting.com
www.lumzlighting.com

DESCRIPTION

Housing made of cast stainless steel
Impact resistance tempered glass cover
Hard chromeplated body coating
Operating temperature: -20°C~+40°C.
LED lifetime up to 50,000 hours
Voltage range: 24 VDC
Wattage: 6, 17, 29 & 46 W
OUTER SLEEVE
83
77
88
79
BROWN / RED (+)
BLUE / BLACK (-)
MAKE SURE POWER IS DISCONNECTED UNTIL INSTALLATION OF PRODUCT IS COMPLETELY FINISHED.
FAILURE TO DO SO COULD RESULT IN ELECTRICAL SHOCK CAUSING SERIOUS INJURY OR DEATH.
Factory:
No.14, Jalan Anggerik Mokara 31/44, Kota Kemuning Seksyen 31,
40460 Shah Alam, Selangor, Malaysia.
Tel: (00603) 5121 1887
Fax: (00603) 5121 5187
Email: sales@lumzlighting.com
Installation Instruction
Recess Opening Dimension:
117.30
82.5
150
107.3
156
120
189
179
126
232
126
Use only flexible cables of suitable diameter according to the national
installation standards.
DO NOT USE HARD CABLES OR ARMOURED CABLES.
Use only supply cables with double case. Do not enter with single cables.
The electronic equipment should not be disposed of in the normal waste.
Instead it should be recycled in accordance with the waste electronic &
electrical equipment (WEEE) directive.
Terminal block not included. Installation may require advice from a qualified
person.
The IP rating of the electrical connection must be equal to or greater than the
IP rating of the luminaire.
we brighten up your life
<1m
166
150
MARINO A
<1m
242
126
MARINO C
THIS PART
ABOVE SURFACE
MARINO/INSTALLATION MANUAL/REV.2
<1m
120
MARINO B
<1m
126
MARINO D
1/2
