Hypertec Ciara Astro PB60S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Astro PB60S
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ciara Astro PB60S and is the answer not in the manual?

Questions and answers

Summary of Contents for Hypertec Ciara Astro PB60S

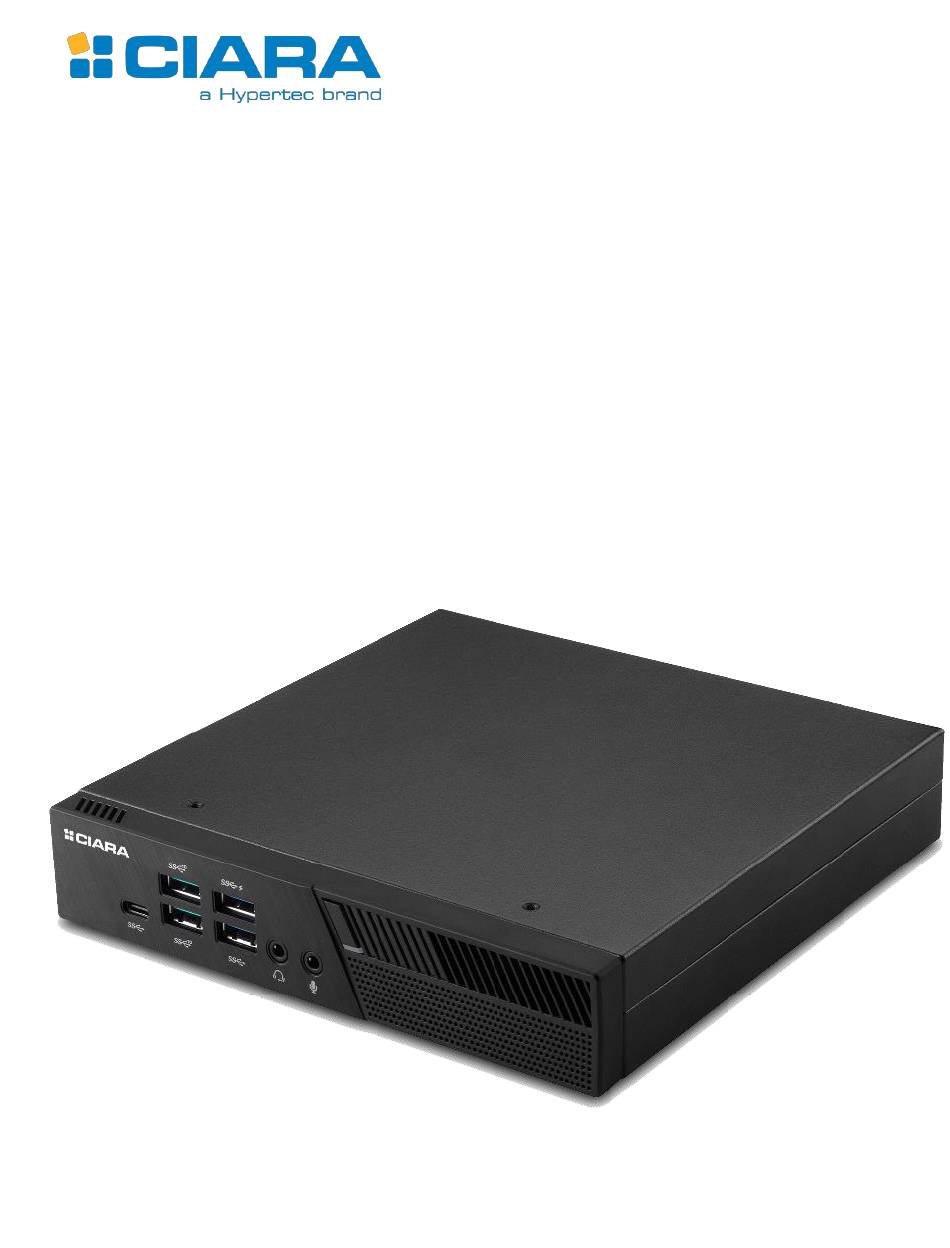

  • Page 1 Astro PB60S User Guide...
  • Page 2 Astro SN-7375 9300 Trans-Canada Highway Montreal, Quebec H4S 1K5 Tel : (514) 798-8880 Fax : (514) 798-8889 Microsoft, Windows 10 are registered trademarks of Microsoft Corporation Intel and Core are trademarks or registered trademarks of Intel Corporation ASUSTeK Computer Inc Asus is a trademark of All other names, brands, and trademarks are trademarks of their respective companies Third printing December 2019...

  • Page 3: Table Of Contents

    Astro SN-7375 Contents ABOUT THIS GUIDE ....................... 4 CONVENTIONS USED IN THIS MANUAL ................. 4 PACKAGE CONTENTS ..................... 5 GETTING TO KNOW YOUR MICRO PC ..............6 – Features ..........................6 - USING YOUR MICRO PC ..................9 2.1 - Getting started ........................... 9 Mounting your PC on the stand ......................

  • Page 4: About This Guide

    Astro SN-7375 ABOUT THIS GUIDE This manual provides information about the hardware and software features of your Micro PC, organized through the following chapters: Chapter 1 : Getting to know your Micro PC This chapter details the hardware components of your Micro PC. Chapter 2 : Using your Micro PC This chapter provides you with information on using your Micro PC.

  • Page 5: Package Contents

    Astro SN-7375 Package contents Your Micro PC package contains the following items : Micro PC PB60S AC adapter Power cord Technical documents NOTE : • The bundled power adapter may vary by model and territories. • Some bundled accessories may vary with different models. For details on these accessories, refer to their respective user manuals.

  • Page 6: 1- Getting To Know Your Micro Pc

    Astro SN-7375 1- Getting to know your Micro PC 1.1 – Features Front view USB 3.1 Gen 1 port The USB 3.1 Gen 1 (Universal Serial Bus) port provides a transfer rate up to 5 Gbit/s. These ports also support the Battery Charging 1.2 technology that allows you to charge your USB devices.
  • Page 7 Astro SN-7375 Rear view Wireless antenna jack The jack is used to connect the supplied wireless antenna to enhance wireless signal reception. Air vents (exhaust vent) The air vents allow your Micro PC chassis to expel hot air out. IMPORTANT ! For optimum heat dissipation and air ventilation, ensure that the air vents are free from obstructions. CAUTION ! Be careful of the hot air expelled at the air vents as it may cause discomfort or injuries.
  • Page 8 Astro SN-7375 NOTE : This punch-out port let you install one of the following ports : VGA port This port allows you to connect your Micro PC to an external display. Serial (COM) connector The 9-pin serial (COM) connector allows you to connect devices that have serial ports such as mouse, modem, or printers. DisplayPort This port allows you to connect your Micro PC to an external display.

  • Page 9: Using Your Micro Pc

    Astro SN-7375 2 - Using your Micro PC 2.1 - Getting started Mounting your PC on the stand To mount your PC on the stand : 1. Locate the mounting holes at the bottom of your PC. 2. Align the stand’s mounting hole with the mounting hole on your PC, then secure it in place with the stand screws. - 9 -...

  • Page 10: Connect The Ac Power Adapter To Your Micro Pc

    Astro SN-7375 Connect the AC power adapter to your Micro PC To connect the AC power adapter to your Micro PC : A. Connect the power cord to the AC power adapter. B. Connect the DC power connector into your Micro PC’s power (DC) input. C.
  • Page 11 Astro SN-7375 - 11 -...

  • Page 12: Connect The Usb Cable From Keyboard Or Mouse

    Astro SN-7375 2.2 - Connect the USB cable from keyboard or mouse You can connect generally any USB keyboard and mouse to your Micro PC. You can also connect a USB dongle for a wireless keyboard and mouse set. To connect a keyboard and mouse to your Micro PC : Connect the USB cable from your keyboard and mouse to any of the USB ports of your Micro PC.

  • Page 13: Turn On Your Micro Pc

    Astro SN-7375 2.3 - Turn on your Micro PC Press the power button to turn on your Micro PC. 2.4 - Turning your Micro PC off If your Micro PC is unresponsive, press and hold the power button for at least four (4) seconds until your Micro PC turns off. 2.5 - Putting your Micro PC to sleep To put your Micro PC on Sleep mode, press the Power button once.

  • Page 14: Entering The Bios Setup

    Astro SN-7375 2.6 - Entering the BIOS Setup BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the Micro PC. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default BIOS settings except in the following circumstances : •...

  • Page 15: Upgrading Your Micro Pc

    Astro SN-7375 3 - Upgrading your Micro PC IMPORTANT! • It is recommended that you install or upgrade the memory modules, wireless card, and solid state drive (SSD), under professional supervision. Visit a CIARA service center for further assistance. • Ensure that your hands are dry before proceeding with the rest of the installation process.

  • Page 16: Installing 2.5" Hdd Or Ssd

    Astro SN-7375 3.3 - Installing 2.5” HDD or SSD 1. Remove the four (4) screws, then lift the storage bay to remove it from the chassis. 2. Insert your HDD or SSD into the storage bay, then secure it with four (4) screws. 3.
  • Page 17 Astro SN-7375 4. Lift the flap on the SATA connector (A), connect the SATA cable to the SATA connector, then push the flap down to secure the cable (B). 5. Replace the storage bay and secure it with the four (4) screws removed previously. - 17 -...

  • Page 18: Installing The M.2 Ssd (On Selected Models)

    Astro SN-7375 3.4 - Installing the M.2 SSD (on selected models) (optional) Remove the storage bay if a storage bay is installed. Follow step 2 under the Installing 2.5” HDD or SSD section to remove the storage bay. To install 2242 M.2 SSD Align and insert the 2242 M.2 SSD into its slot inside the Micro PC, then gently push down the M.2 SSD on top of the screw hole and fasten it using one of the bundled 3mm round screws.

  • Page 19: Installing Top Memory Module

    Astro SN-7375 3.5 - Installing top memory module IMPORTANT !  Refer to http://www.asus.com for the list of compatible DIMMs. You can only install DDR4 SO-DIMMs to the Micro PC’s DIMM slot.  Only CIARA-authorized technicians should remove and install motherboard and mechanical parts inside your Micro PC. Please refer to the terms and conditions in the warranty card.

  • Page 20: Installing An External Button

    Astro SN-7375 3.6 - Installing an external button 1. Remove the metal cover of the external button port. CAUTION ! Take extra care when removing the metal cover. Use tools such as a screw driver to bend and remove the metal cover to avoid physical injury.

  • Page 21: Appendix

    Astro SN-7375 Appendix Safety information Your Micro PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system •...

  • Page 22: Regulatory Notices

    Astro SN-7375 DO NOT throw the Micro PC in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling.

  • Page 23: Federal Communications Commission Statement

    Astro SN-7375 Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 24: Wireless Operation Channel For Different Domains

    Astro SN-7375 Wireless Operation Channel for Different Domains N. America 2.412-2.462 GHz Ch01 through CH11 Japan 2.412-2.484 GHz Ch01 through Ch14 Europe ETSI 2.412-2.472 GHz Ch01 through Ch13 Regional notice for Singapore This CIARA product complies with IMDA Standards. Complies with IMDA Standards DB103778 CIDF15000026...

  • Page 25: Glossary

    Astro SN-7375 GLOSSARY 32-Bit -- In computer architecture, 32-bit integers, memory addresses, or other data units are those that are at most 32 bits (4 octets) wide. Also, 32-bit CPU and ALU architectures are those that are based on registers, address buses, or data buses of that size. 32-bit is also a term given to a generation of computers in which 32-bit processors were the norm.
  • Page 26 Astro SN-7375 CMOS RAM -- Complementary Metal Oxide Semiconductor. CMOS RAM stores basic configuration information about your computer. Colour display -- A video display capable of displaying colours based on the RGB (Red, Green, and Blue) colour-mixing scheme. Configuration -- The way in which a computer and peripheral equipment (such as printers and display monitors) are interconnected and programmed to operate as a system.
  • Page 27 Astro SN-7375 LCD -- A liquid crystal display (LCD) is a thin, flat electronic visual display that uses the light modulating properties of liquid crystals (LCs). LCs do not emit light directly. As LCD panels produce no light of their own, they require an external lighting mechanism to be easily visible.
  • Page 28 Astro SN-7375 SATA or Serial ATA -- Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA was designed to replace the older ATA (AT Attachment) standard (also known as EIDE). It is able to use the same low level commands, but serial ATA host-adapters and devices communicate via a high-speed serial cable over two pairs of conductors.
  • Page 29 Astro SN-7375 NOTES : - 29 -...
