TAPKO MECrf Operating Instructions

TECHNOLOGIES GMBH

Product description

The TP RF media coupler MECrf is a KNX RF Ready S-mode (RF1.R)
router for connecting KNX RF and KNX TP. MECrf can also be used as a
retransmitter. Operational and filtering states, malfunction and faulty
communication are indicated by LEDs.
MECrf is able to filter the traffic according to the installation place in the
bus system hierarchy and according to the built-in filter tables for group
oriented communication. Long messages with up to 201 bytes APDU
length are supported. For commissioning and trouble-shooting a
configurable Manual Function to temporarily deactivate filtering is
available. It can be activated by a single button press and its switch-off
after a pre-set time period is automatic. Further functions:
• Suppress device configuration from the subline
• Enable/disable filtering of Group telegrams or Physical telegrams
• Number of repetitions is reducible
• Confirmations can be added to sent out telegrams
Requirements of Directives RED and RoHS are met. Standards for
residential, commercial, and industrial environments are fulfilled.
Hereby, TAPKO Technologies GmbH declares that the radio equipment
type MECrf is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following internet address: www.tapko.de/ce
Technical specifications
Power input
Power supply:
Current consumption:
Housing
Dimensions (HxWxD):
KNX RF connection:
KNX bus connection:
Weight:
Environmental conditions
Operating temperature:
Storage temperature:
Ambient humidity:
RF data
Frequency range:
Tx transmit power:
RF range:
Mounting, commissioning and safety notes
• After connection to the KNX bus system, the device works with its
default settings as intended
• Warning: Do not connect to 230 V. The device is supplied by the
KNX bus and does not require any additional external power supply
• The device may only be installed and put into operation by a
qualified electrician or authorized person
• For planning and construction of electric installations the appropriate
specifications, guidelines and regulations in force of the respective
country have to be complied
• Do not mount directly on a metal rail or a metal fastener
• Make sure that during operation a minimum distance of 20 cm to the
human body, conducting surfaces and objects is kept
• Connect the KNX bus line as for common KNX bus connections with a
KNX bus cable, to be stripped and plugged into the KNX TP connector
• Do not damage electrical insulations when connecting
• Installation only in dry locations
• Accessibility of the device for operation and visual inspection must be
provided
• For changing the configuration use the ETS
Release version/date: R1.5 / October 2019
© 2001-2019 TAPKO Technologies GmbH
Im Gewerbepark A15, 93059 Regensburg, Germany
Details, modifications and corrections may be subject to change without notice. TAPKO gives no warranty for the accuracy of the document. All rights reserved.

Operating Instructions

21...30 V DC SELV
< 10 mA
43 x 40 x 11 mm
RF antenna
KNX TP connector (red/black)
15 g
-5...45 °C
-10...70 °C
5...93 % (non-condensing)
868.3 MHz ± 300 kHz
+ 5.9 dBm
100 m

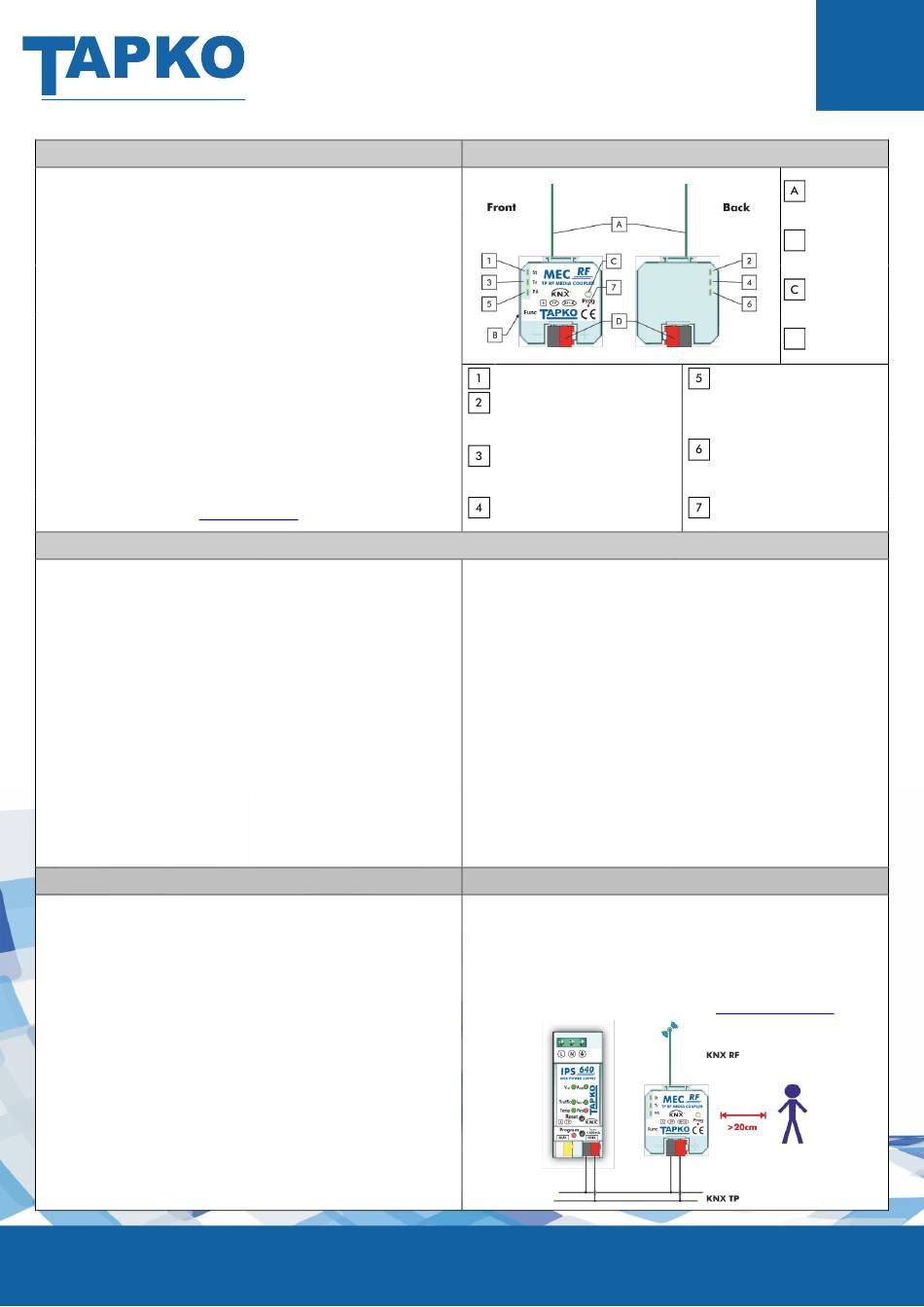

Connectors, buttons and LEDs description
Bus state KNX RF (Subline)
green: Subline OK
Bus state KNX TP (Main line)
green: Main line OK
orange: Manual Function active
red: No TP connection
Telegram traffic KNX RF
green (blinking): Telegram traffic
red (blinking): Transmission error
Telegram traffic KNX TP
green (blinking): Telegram traffic
red (blinking): Transmission error
Electrical safety
Pollution degree (IEC60664):
Protection type (IEC60529):
Protection class (IEC61140):
Overvoltage category (IEC60664):
Approbation (ISO/IEC14543-3):
CE Marking
EU Directives:
Standards:

Installation and maintenance

• The housing must not be opened
• Protect the device from moisture, dirt and damage
• The device needs no maintenance
• If necessary, the device can be cleaned with a dry cloth
• In the case of damage (at storage, transport) no repairs may be
carried out by unauthorized persons
• Configuration details and ETS database:
MECrf
RF antenna
Function
B
button
Programming
button
KNX TP
D
connector
Physical (Indiv.) Address routing
green: Filter active
yellow: Route all
orange: Block all
<off>: Settings for main line
and subline are different
Group Address routing
green: Filter active
orange: Route all
red: Block all
<off>: Main line/subline different
Programming LED
red: Programming Mode active
2
IP20
III
II
KNX-certified
RED (2014/53/EU)
RoHS (2011/65/EU)
ETSI EN300220-1/-2,
EN301489-1/-3, EN50491-5-2,
EN50581, EN50663,
EN61000-6-2/-3, EN62368-1
EN62479
www.tapko.de/mecrf
