Page 1

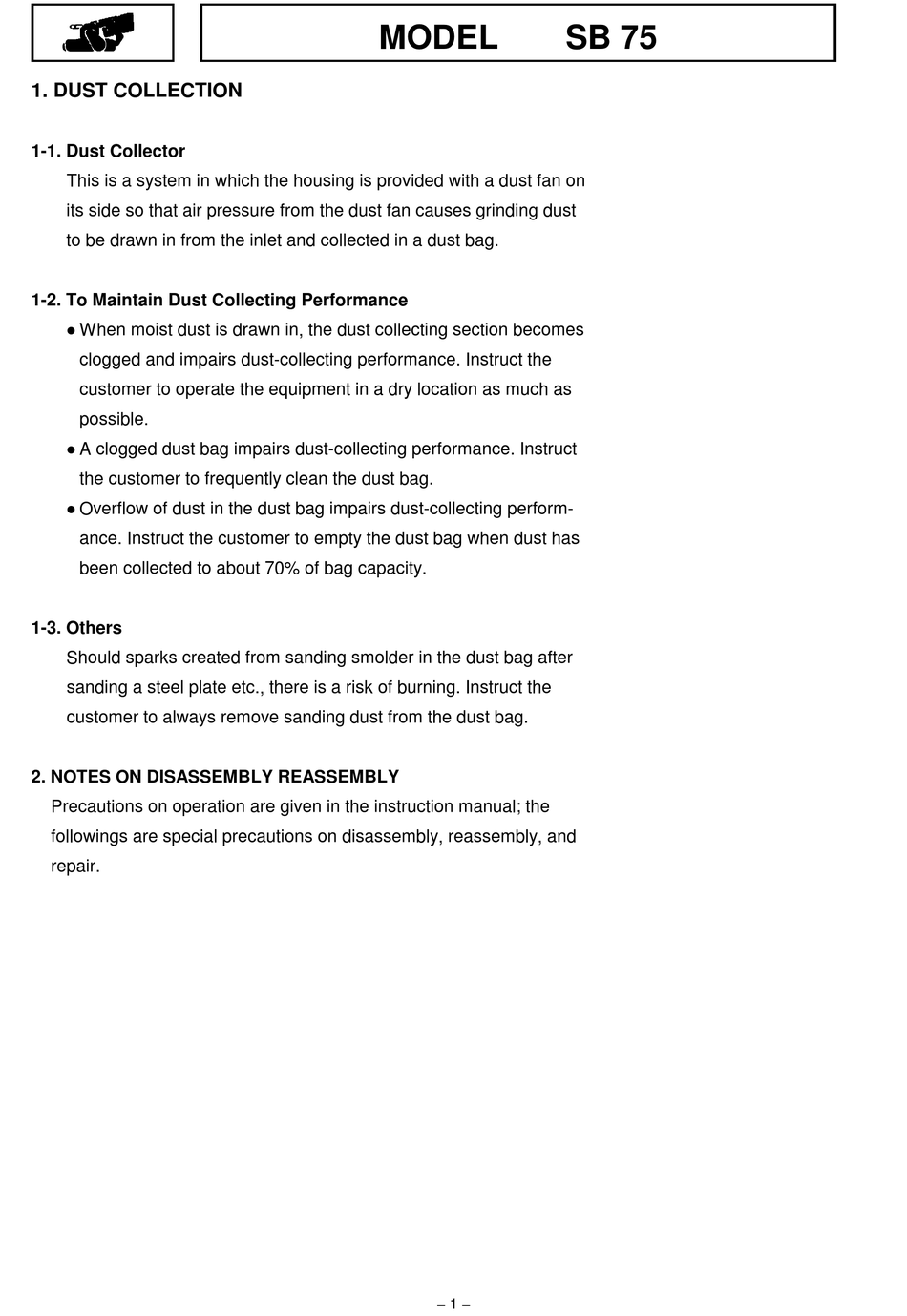

MODEL SB 75 1. DUST COLLECTION 1-1. Dust Collector This is a system in which the housing is provided with a dust fan on its side so that air pressure from the dust fan causes grinding dust to be drawn in from the inlet and collected in a dust bag.
Page 2
Be sure that the plug is disconnected from the power receptacle during disassembly, reassembly, and polishing belt replacement. When tightening a tapping screw, align the holes on both sides. 2-1. Disassembly (Encircled numbers in the following description denote item numbers in the Parts Price List.) (1) Removing the armature assembly Remove the belt cover after loosening the belt cover...
Page 3
2-2. Reassembling Perform reassembling by following disassembling procedures in re- verse order. The gear cover should be filled with Hitachi Motor Grease No. 29 and the felt on the body and the idle pulley should be impregnated with Turbine Oil No. 90 as lubricant. Exercise utmost care in keeping the housing and the handle cover free from Turbine Oil No.
