Summary of Contents for Thermaltronics TMT-PH300-1

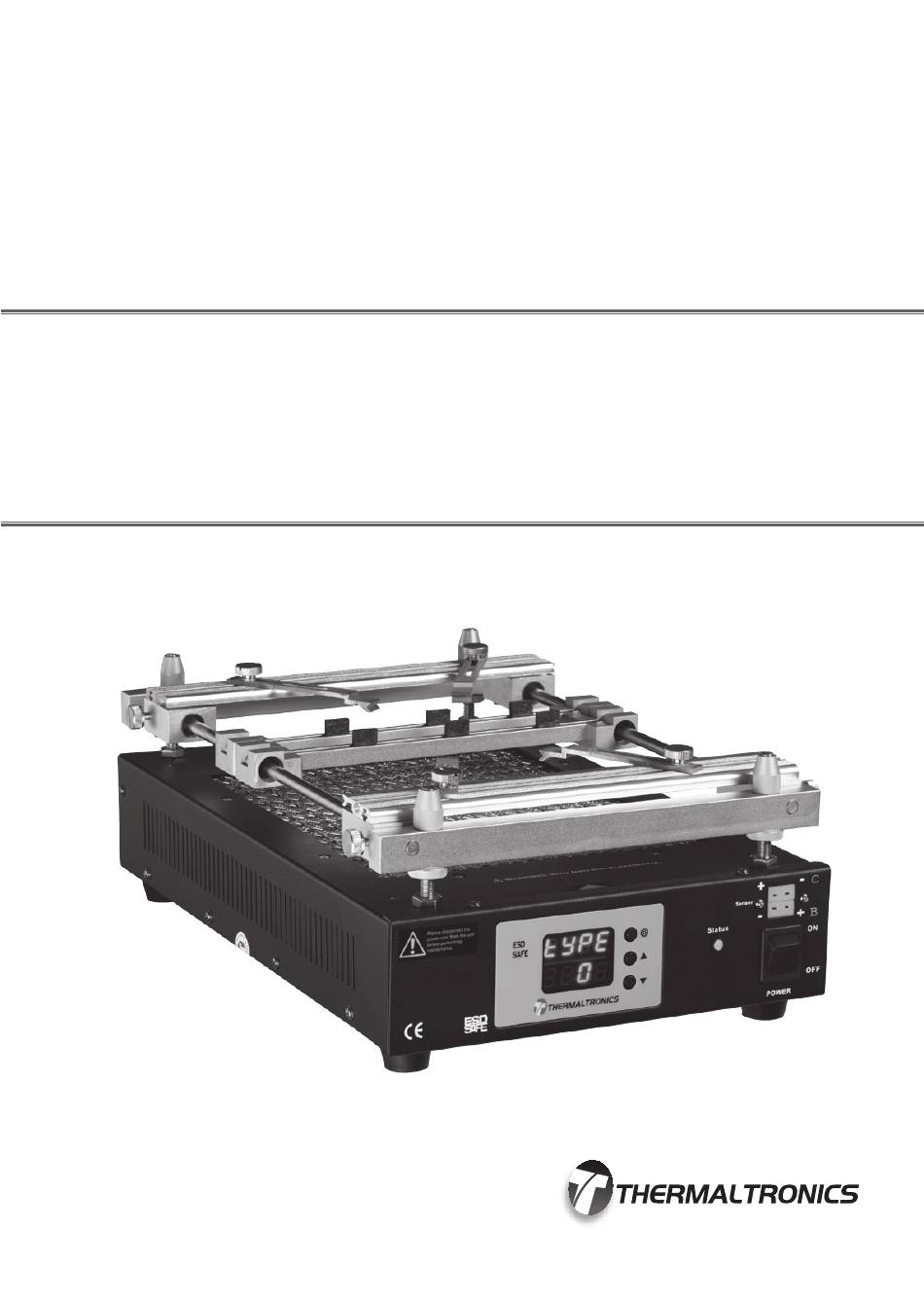

- Page 1 USER MANUAL TMT-PH300 IR PREHEATER www.thermaltronics.com...
-
Page 3: Table Of Contents
If the product should become defective within the warranty period, Thermaltronics will repair or replace it free of charge at its sole option. Warranty period is from the date of purchase by the original owner. If the date of purchase cannot be substantiated the date of manufacture will be used as the start of the warranty period. -
Page 4: Tmt-Ph300 Specifications
CE, ETL INTRODUCTION Congratulations on your purchase of the TMT-PH300 IR preheater. This unit has been tested and inspected by Thermaltronics prior to shipment, and with proper maintenance will give you years of reliable performance. SYSTEM FEATURES The TMT-PH300 IR uses advanced intelligent temperature control technology for accurate temperature control. -
Page 5: Safety Precautions
- Do not spill any liquids into the unit. 4. Do not operate on uneven surfaces. 5. Allow to cool down before storage. 6. Turn off the power when the unit is not in use. 7. Do not alter the unit in any manner. www.thermaltronics.com support email: support@thermaltronics.com... -
Page 6: Control Panel
USER MANUAL CONTROL PANEL Legend 1.a - Upper Digital Display 5 - Status Light 1.b - Lower Digital Display 6 - External Sensor ports 2 - Selection button 7 - Power Switch 3 - "▲" Increase / Enter button 8 - Power Socket 4 - "▼"... -
Page 7: Unpacking/Assembly/Operation
"4" in control panel diagram) to choose between 3 operation modes (TYPE 0, 1, 2) 2. Press the selection button ("2" in control diagram) to confirm selection. 3. If you need to select another mode at this stage, please turn off power and then turn on power. www.thermaltronics.com support email: support@thermaltronics.com... -
Page 8: Operation Mode 0 / 1 / 2
USER MANUAL OPERATION - MODE 0 Mode "0" - Operation When the preheater is set to Mode "0", the system uses the internal temperature sensor to control preheater temperature. The external temperature sensors are used for additional monitoring and can be placed at the bottom of the PCB and/or near the components that are being worked on. - Page 9 Press the selection button ("2" in control diagram) repeatedly until the upper digital display shows " XXXB " and the lower display shows " XXXC ". Note: Under Mode "1", it is not necessary to monitor the internal temperature sensor's read out. www.thermaltronics.com support email: support@thermaltronics.com...
- Page 10 USER MANUAL OPERATION - MODE 2 Operation - Mode "2" When the preheater is set to Mode "2", the system uses a custom temperature/time profile to control temperature. The external temperature sensor "b" ("6b" in control diagram) is used to control the preheater temperature. The external temperature sensor "c"...
-
Page 11: Temperature Profile
Ramp rate = 2 celsius / second 2. (SEG2) Heating zone - Temperature ramps up to 150 celsius in 60 seconds Ramp rate = (150 - 100) / 60 Ramp rate = 0.833 celsius / second www.thermaltronics.com support email: support@thermaltronics.com... -
Page 12: Frequenty Asked Questions
Q: Error Messages (ERR3) A: Indicates a bad sensor connection or no temperature increase. Please consult your local vendor. Q: Other problems A: Please contact your vendor or Thermaltronics at the email address: support@thermaltronics. com. ORDERING GUIDE SPARE PARTS...
