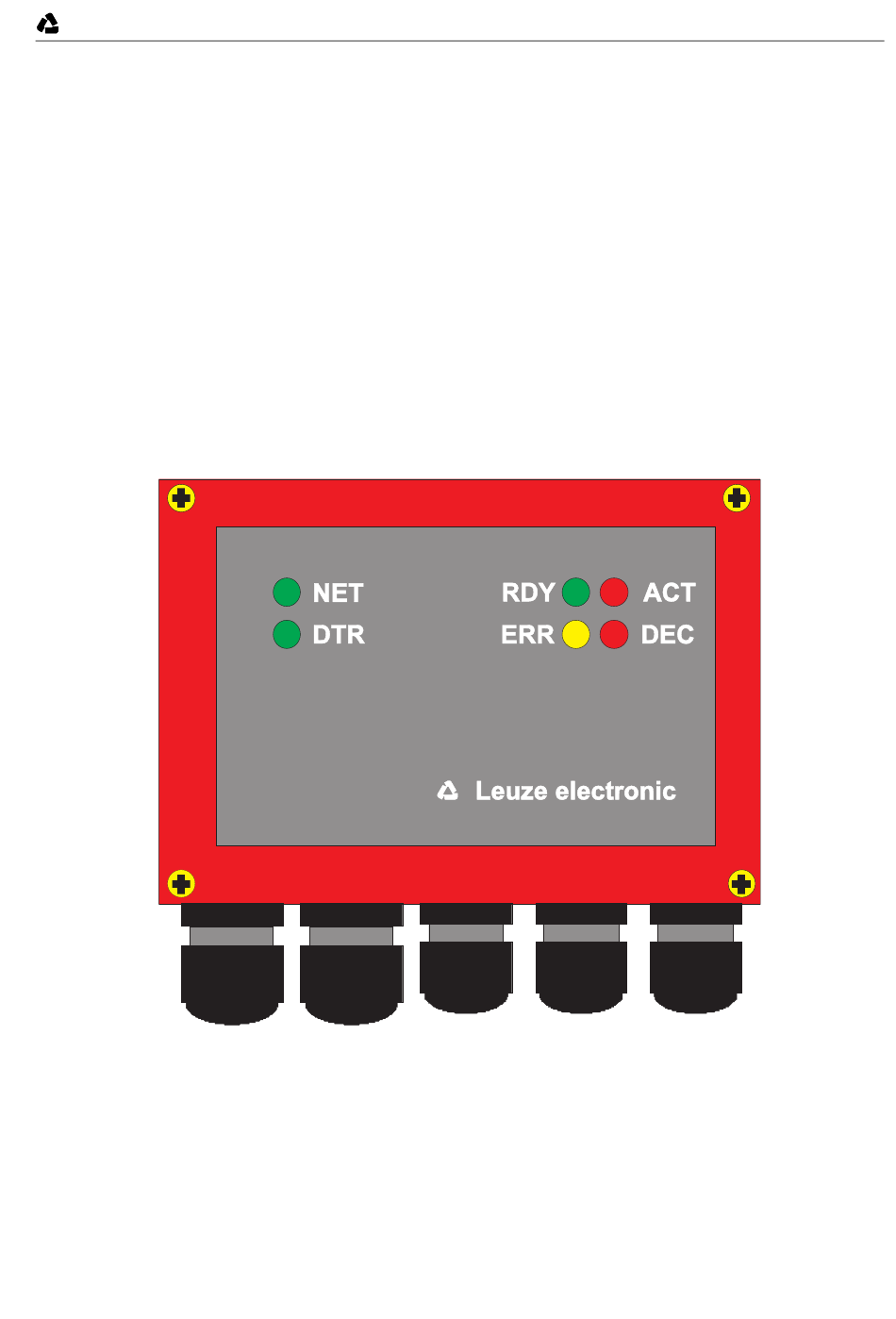

  • Page 1 Leuze electronic Modular Connector Unit MA 30 / MA 31 Leuze multiNet plus Master Technical Description...
  • Page 2 © All rights reserved, especially the rights of production, distribution and translation. Copying or reproductions in any form require the written consent of the manufacturer. Product names are used without warranty of unrestricted applicability. Changes due to technical improvement may be made.

  • Page 3: Table Of Contents

    Software RESET ("warm start") ................27 4.6.2 Hardware RESET ("cold start") ................27 Appendix................28 Troubleshooting ..................28 Overview of Commands and Parameters ..........30 5.2.1 General "Online" Commands .................. 31 ASCII table....................34 Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 4: General Information

    Notice! The corresponding declaration of conformity can be requested from the man- ufacturer. The manufacturer of the product, Leuze electronic GmbH & Co KG in D-73277 Owen/Teck, possesses a certified quality assurance system in accordance with ISO 9001. Leuze electronic...

  • Page 5: Device Description

    Function of the MA 30/31 General Information The modular connector units MA 30/31 serve as masters in the Leuze multi- Net plus network. In addition to its function as a network controller, the MA 30 is also an intelligent connection and switching box for the bar code reader BCL 40/80.
  • Page 6 Device Description Slaves in the multiNet All Leuze bar code readers and decoders which are capable of multiNet plus can be used as slaves; these are the devices • BCL 40/BCL 80 with MA 10 • BCL 41 with MA 3-3000 •...

  • Page 7: Addressing In The Network

    Leuze uses 2-byte ASCII addressing in multiNet plus. This addressing is included in each data telegram. This address must be selected at the stations either via hardware (rotary switch) or via software.

  • Page 8: Control Elements Of The Ma 30/31

    13 14 15 16 Host multiNet Switching inputs Switching Operating voltage interface plus outputs JL 6 interface Brass clamps PE / shield Figure 2.3: Front view: control elements of the MA 30/31 Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 9 Operating voltage terminals 17 … 21: connection terminals for operating voltage (18 … 36VDC); with MA 30, also for connected BCL xx Table 2.1: Explanation: operating elements of the MA 30/31 Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 10 A detailed description of the LEDs RDY, ERR, ACT and DEC in association with a connected BCL xx can be found in the manual BCL 40/80; these are identical with the LEDs on the MA 10. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 11: Ma 30/31 As Network Master

    (parameterise) each scanner in the network centrally via the service or primary interface of the MA 30/31 without having to connect a PC/terminal to the individual read stations. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 12: Service Mode

    Notice! The network can also be parameterised via the host interface. For commis- sioning, however, parameterisation via a PC is considerably more conven- ient, especially when the configuration software CONFIG 3.0 from Leuze electronic is used. Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 13 Table 2.3: Data frame Notice! The data content "CODE" is only an example; here are the actual user data of the frame. Addr. 01 corresponds to slave 1 in the network. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 14: Specifications

    90% rel. humidity, non-condensing Vibration EN 60068-2-6, Test Fc 0.1 … 5.0g Shock EN 60068-2-27, Test Ea 15g/11ms Continuous shock EN 60068-2-29, Test Eb 10g/16ms EN 50081-1, EN 50082-2, EN 55022 Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 15: Dimensioned Drawings

    DT R Le uze e le ctr onic MA 30 Figure 2.7: Dimensioned drawing MA 30 MA 31 DT R Le uze e le ctr onic Figure 2.8: Dimensioned drawing MA 31 Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 16: Connection

    The pin assignment of the connection terminals is dependent on which interface module is plugged in. Interface module pin Leuze offers four modules which establish an electrical connection to the assignment serial interfaces RS 232, RS 422, TTY or RS 485. The terminal designations are printed on the module.

  • Page 17: Rs 232 Interface

    +20mA T x+ N D 6 T x- Jumper G N D Jumper position up to 1000m passive Figure 3.4: Passive connection of the MA 30/31 to a TTY host computer Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 18: Rs 422 Interface

    - shielded - copper resistance <100Ω/km e.g. LiYCY 2x0.2mm The slaves must have an RS 485 multiNet plus interface, i.e. all devices described on page 4 can be connected to the network. Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 19 • Wires 485 A and 485 B must in no case be exchanged within the net- work. The multiNet will otherwise not function. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 20: Connecting The Switching Inputs

    Supply voltage MA 30/BCL xx 18 … 36V 24V_SE MA 30 GND_SE Optically coupled switching input SE1/2_A SE1/2_B to processor Figure 3.8: Connection of the switching input without an external switching voltage Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 21: Connecting The Switching Outputs

    The solder bridges are on the MA 30 circuit board directly opposite the con- nection terminals VDD_SA and GND_SA. Galvanic decoupling of Switching outputs the switching output Scratch through here! Scratch through here! Figure 3.9: Position of the solder bridges JL5 and JL6 Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 22 Observe that the event which triggers the setting of the switching output must be set and activated in the software setup of the BCL xx. For further informa- tion see the BCL handbook. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 23: Connecting The Voltage Supply

    Terminal 21: (protective lead; earth) Notice! The terminals for V_IN and GND_IN are double for ease of wiring. Thus, the supply voltage can be passed from one read station to the next. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 24: Commissioning

    To do this, use the service interface of the MA 30/31 and switch to "service network" (see chapter 2.6 "Service mode"). Using the CONFIG 3.0 configuration software, you can make the changes to the host interface off-line, and then download them to the MA 30/31. Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 25 Here, the frame format (prefix/postfix) as well as the address mode can be adjusted. With the setting "automatic address recognition", the MA 30/31 manages address handling itself. This is the correct setting for nearly all applications. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 26: Multinet Settings

    Under "Last slave address", you can set the number of connected slaves. This is analysed only when the rotary switch is in position "0", i.e. the "last slave address" is not set via hardware. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 27: Setting Up The Slaves In The Network

    BCL xx) settings are preserved. 3. Factory default parameter set ("2"): Leuze standard parameter set which cannot be changed. The settings correspond to the state upon delivery. A hardware RESET (see chapter 4.6.2) resets the MA 30/31 and the BCL xx connected to the MA 30 to the factory settings.
  • Page 28 (corresponds to hardware RESET with customer-specific parameters) pc20: copies the Leuze factory parameter set to the current parameter set Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 29: Executing A Reset

    Attention! A cold start replaces the current parameter set either with your customer-spe- cific parameter set or the Leuze factory parameter set, i.e. any settings made there are lost. Therefore, perform a hardware RESET only when the software cannot be started or when you intentionally want to reset the MA 30/31 (and the BCL xx connected to the MA 30).

  • Page 30: Appendix

    Net" protocol type and tocol of the slaves at are operating with a the service interface: different data format data format: multiNetMode baud rate: 57600 protocol: multiNet plus Slave Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 31 "autoCon- fig" LED RDY does not Operating software of the Perform a software RESET illuminate MA 30/31 does not function properly Table 5.1: Error list Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 32: Overview Of Commands And Parameters

    Most "online" commands are acknowledged by the MA 30 and any requested data returned. For commands that are not acknowledged, command execu- tion can be observed or monitored directly on the device. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 33: General "Online" Commands

    Carries out a software reset. The device is restarted and reinitialised, leav- Description ing it in the same state as when the supply voltage is switched on. Parameter Acknowledge- ’S’ (start signal) ment Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 34 A valid parameter set operation must be acknowledged with 'PS0'. Should an error occur, the command should be repeated. Repeated error acknowledge- ments indicate an error in the parameter set. If in doubt, contact your Leuze sales or service office (see back page for addresses).
  • Page 35 The actual Broadcast command is not acknowl- ment edged. Attention! This command is very powerful and must be used with caution as incorrect commands can negatively influence the entire network. Leuze electronic Connector Unit MA 30 / MA 31...

  • Page 36: Ascii Table

    Percent sign & AMPERSAND Ampersand APOSTROPHE Apostrophe OPENING PARENTHESIS Opening parenthesis CLOSING PARENTHESIS Closing parenthesis ASTERISK Asterisk PLUS Plus COMMA Comma HYPHEN (MINUS) Hyphen (minus) PERIOD (DECIMAL) Period (decimal) SLANT Slant Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 37 GREATER THAN Greater than QUESTION MARK Question mark COMMERCIAL AT Commercial AT OPENING BRACKET Opening bracket REVERSE SLANT Reverse slant CLOSING BRACKET Closing bracket CIRCUMFLEX Circumflex UNDERSCORE Underscore GRAVE ACCENT Grave accent Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 38 Leuze electronic Appendix CTRL DESIGNATION MEANING OPENING BRACE Opening brace VERTICAL LINE Vertical line CLOSING BRACE Closing brace TILDE Tilde DELETE (RUBOUT) Delete Figure 5.1: ASCII Table Leuze electronic Connector Unit MA 30 / MA 31...
  • Page 40 Leuze electronic Leuze electronic GmbH + Co KG Postfach 11 11, D-73277 Owen/Teck Tel. +49(0)7021/ 573-0, Fax +49(0)7021/ 573-199 E-mail: http://www.leuze.de Sales and Service Leuze electronic GmbH +Co KG Geschäftsstelle Frankfurt Imp. Tec. Vignola S.A.I.C. Ing. Franz Schmachtl KG IVO Leuze Vogtle Malanca s.r.l.
